Description

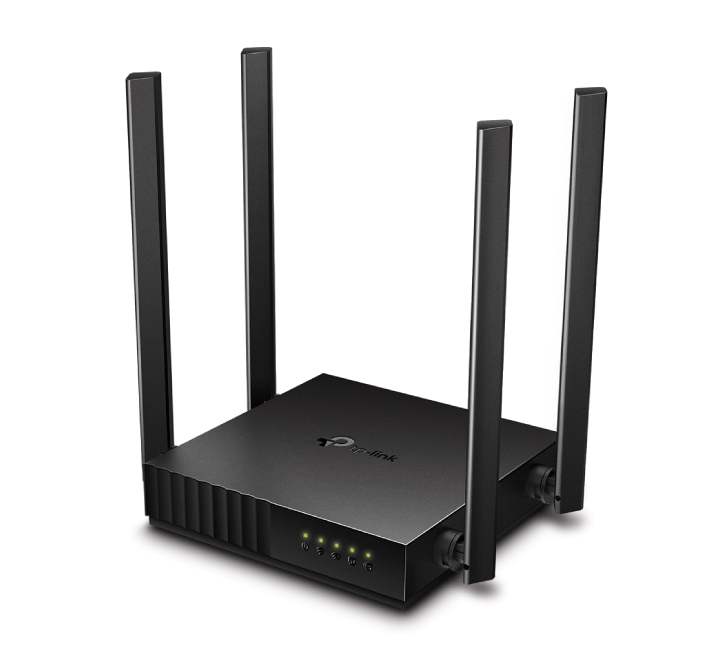

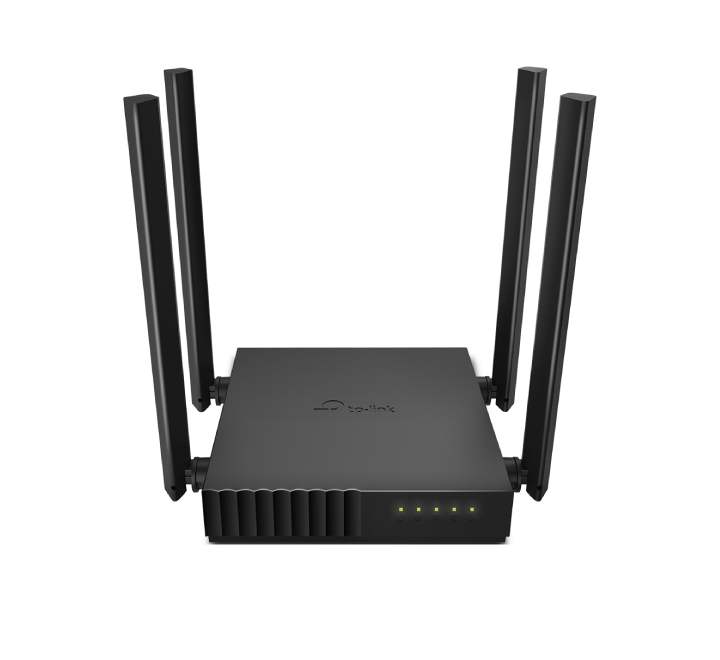

High-Speed Dual-Band Wi-Fi in a Palm-Sized Design
Upgrade your home network with the TP-Link Archer C54 AC1200 Dual-Band Wi-Fi Router. Delivering combined wireless speeds of up to 1200 Mbps (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band), the Archer C54 provides fast, reliable connectivity for 4K streaming, lag-free online gaming, and daily web browsing.
Equipped with 4 high-performance external antennas and Beamforming technology, this compact router focuses wireless signals directly toward your devices for extended coverage throughout your home. Built-in MU-MIMO technology allows simultaneous data transfers to multiple devices, minimizing latency and ensuring smooth performance across all your connected smartphones, laptops, and smart TVs.
Key Features
- AC1200 Dual-Band Wi-Fi: Concurrent 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz for smooth 4K streaming and high-speed downloads.
- Far-Reaching Signal Coverage: 4× external high-gain antennas combined with Beamforming focus signal strength toward connected devices.
- MU-MIMO Technology: Communicates with multiple devices simultaneously to reduce buffering and maintain low latency.
- 3-in-1 Multi-Mode Flexibility: Functions as a Router, Access Point, or Range Extender to suit any network setup.
- Versatile Management: Set up and manage your network easily via the TP-Link Tether App (iOS/Android) or Web UI.
- Enhanced Security & Controls: Features Parental Controls, Guest Network access, WPA3 encryption support, and SPI Firewall protection.
- Compact & Wall-Mountable: Space-saving design fits seamlessly into any home decor or wall placement.
Technical Specifications
| Wi-Fi Standards | Wi-Fi 5 (IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz) |
| Wi-Fi Speeds | 5 GHz: up to 867 Mbps | 2.4 GHz: up to 300 Mbps |
| Antennas | 4× Fixed High-Performance Antennas |

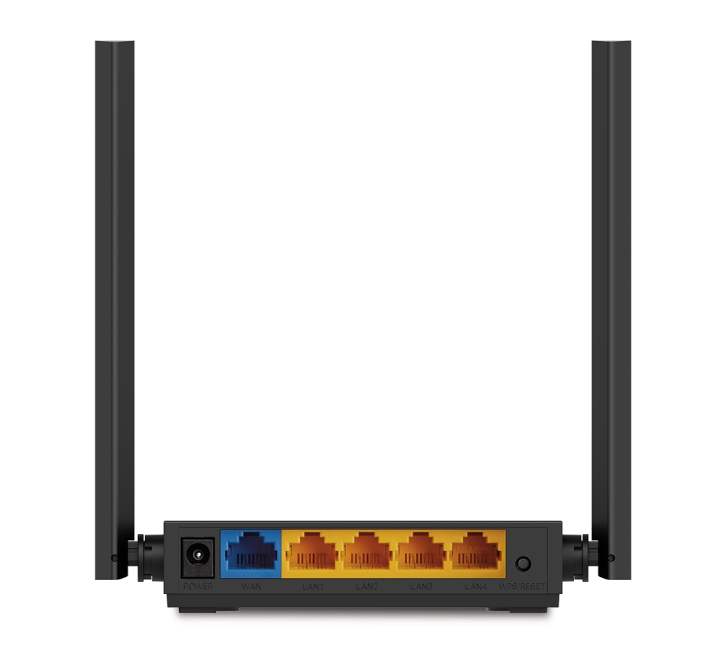

| Ethernet Ports | 1× 10/100 Mbps WAN Port, 4× 10/100 Mbps LAN Ports |
| Working Modes | Router Mode, Access Point Mode, Range Extender Mode |
| Advanced Technologies | 2×2 MU-MIMO, Beamforming, IGMP Proxy/Snooping (IPTV) |
| Wireless Security | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
| Network Security | SPI Firewall, Access Control, IP & MAC Binding |
| Protocols | IPv4, IPv6 |
| Buttons | WPS / Reset Button |
| Power Supply | 9 V ⎓ 0.85 A |
| Dimensions (W × D × H) | 4.5 × 4.2 × 1.0 in (115 × 106.7 × 24.3 mm) |
