Next-Generation Touchless Biometric Security

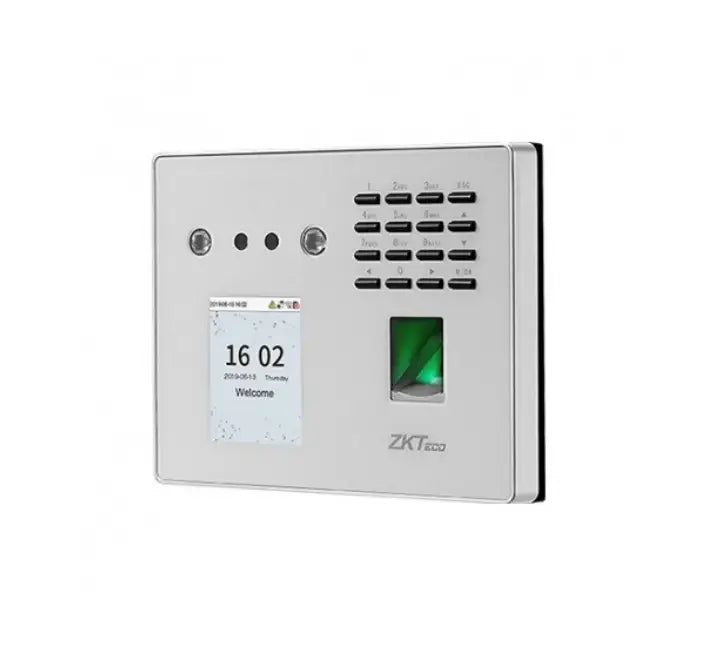

The ZKTeco MB40-VL is a Linux-based hybrid biometric time attendance and access control terminal designed to deliver seamless security and high-efficiency workforce management. Featuring ZKTeco's groundbreaking Visible Light Facial Recognition technology, the MB40-VL automatically detects faces at distances ranging from 0.3m to 2m, ensuring smooth, touchless authentication and improved hygiene in any workplace environment.
Powered by deep learning algorithms, the MB40-VL provides superior anti-spoofing protection against print, video, and 3D mask attacks while accommodating an extra-wide pose angle tolerance of ±30°. Combined with the 3D Neuron Fingerprint Algorithm, multi-card module support, and sleek white modern design, it is the ideal access management solution for offices, factories, schools, and commercial facilities.
Key Features
- Visible Light Facial Recognition: Provides rapid recognition (≤1 second) from a distance of 0.3 meters up to 2 meters.
- Advanced Anti-Spoofing Algorithm: Robust defense against fraudulent attempts using laser, color/BW photos, videos, and 3D masks.
- Wide Pose Angle Acceptance: Doubles traditional detection angle tolerance to ±30° for pitch, roll, and yaw angles.
- Multi-Factor Authentication: Flexible identification modes including Face, Fingerprint, RFID Card, and Password.
- Touchless & Hygienic: Non-contact verification promotes workplace hygiene and safe environment practices.
- Adjustable LED Lighting: Supplement lighting with controllable brightness ensures reliable scanning even in low-light environments.
- Flexible Connectivity: Standard TCP/IP, USB Host, and optional Wi-Fi support for seamless data syncing with ZKBio Time and ZKTime.Net software.
- Access Control Capabilities: Integrates directly with 3rd-party electric locks, door sensors, and exit buttons.
Technical Specifications
| Specification | Details |
|---|---|
| Display | 2.8-inch TFT Color Screen |
| Face Capacity | 3,000 |
| Fingerprint Capacity | 3,000 |
| Card Capacity | 10,000 (Optional ID/IC modules) |
| Transaction Capacity | 100,000 logs |
| Operating System & Hardware | Linux OS | 900MHz Dual Core CPU | 512MB RAM / 8GB ROM |
| Camera | 2MP WDR Low Light Camera with Adjustable LED Supplement Light |
| Biometric Algorithms | ZKFace V3.9 & ZKFinger V10.0 |
| Facial Recognition Speed | ≤ 1 second |
| Communication | TCP/IP, USB Host, Wi-Fi (Optional) |
| Access Control Interface | 3rd-Party Electric Lock, Door Sensor, Exit Button |
| Standard Functions | ADMS, Work Code, DST, Self-Service Query, Automatic Status Switch, T9 Input, Photo ID, Mask Detection, 14-Digit User ID, Scheduled Bell |
| Optional Modules | 125KHz ID Card (EM) / 13.56MHz IC Card (MF) |
| Power Supply | DC 12V 1.5A |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Operating Humidity | 20% to 80% |
| Dimensions (W × H × D) | 170.00 × 138.00 × 38.55 mm |
| Supported Software | ZKBio Time, ZKTime.Net |
