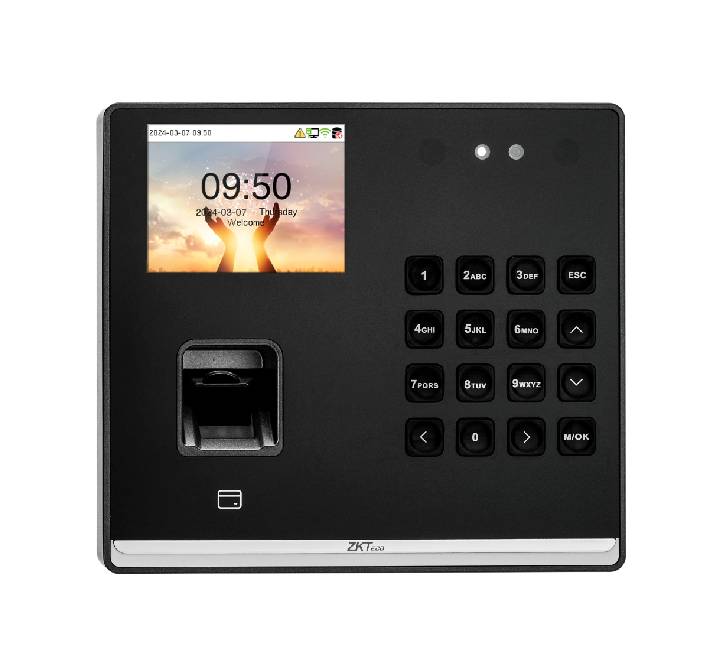

Empower your office with the high-performance ZKTeco M2 Series Biometric Fingerprint Time Attendance & Access Control Terminal. Purpose-built for modern businesses, factories, retail outlets, and enterprises in Myanmar, the ZKTeco M2 features an ultra-fast ZK Optical Fingerprint Sensor, Wi-Fi/Ethernet connectivity, access control relay outputs, and a built-in 2,000mAh backup battery to keep tracking time even during local power outages.
Key Features & Business Benefits
2,000mAh Backup Battery
Never lose attendance logs during power cuts. Operates for up to 4 hours continuously on battery power—essential for businesses in Myanmar.
High Capacity & Rapid Matching
Stores up to 3,000 fingerprint templates, 3,000 RFID cards, and 150,000 transaction logs with ultra-fast verification under 1 second.
Dual Communication (Wi-Fi + TCP/IP)
Supports built-in 2.4GHz Wi-Fi and TCP/IP Ethernet networking for flexible deployment without running complex cables.
Full Access Control Interfaces
Connects directly to 3rd-party electric door locks, door sensors, and exit buttons for seamless door security integration.
Cloud Software Integration
Fully compatible with ZKTeco BioTime Cloud software and ZKBio Zlink mobile app for effortless remote attendance management.
Vivid 2.8" TFT Color Display
Clear 2.8-inch screen with full physical keypad for easy user registration, clock-in confirmation, and admin configuration.
Technical Specifications
| Display | 2.8-inch TFT Color LCD Screen (320 x 240 pixels) |
|---|---|
| Fingerprint Capacity | 3,000 Fingerprint Templates (ZKFinger V13.0 / V10.0) |
| Card Capacity | 3,000 Cards (ID Card 125kHz standard / IC Card 13.56MHz optional) |
| User Capacity | 3,000 Users |
| Log / Record Capacity | 150,000 Transactions |
| Verification Speed | ≤ 1.0 second (Fingerprint) |
| Communication Interfaces | TCP/IP Ethernet, Wi-Fi (2.4GHz IEEE 802.11b/g/n), USB-Host (Type-A) |
| Access Control Interfaces | Electric Lock, Door Sensor, Exit Button |
| Hardware Engine | 1.0GHz Dual-Core CPU, 512MB RAM, 8GB ROM, Linux OS |
| Backup Battery | Built-in 2,000mAh Rechargeable Lithium Battery (Up to 4 Hours) |
| Compatible Software | BioTime Cloud / ZKBio Zlink App / ZKTime Software |
| Dimensions & Power | 154 mm x 138 mm x 34 mm | DC 12V 1.5A Power Supply |
What’s Included in the Package?
- 1 x ZKTeco M2 Fingerprint Time Attendance & Access Control Terminal
- 1 x Built-in 2,000mAh Rechargeable Backup Battery
- 1 x 12V Power Supply Adapter
- 1 x Wall Mount Bracket & Screw Set
- 1 x Wiring Harness & Quick Installation Guide
