Product Overview

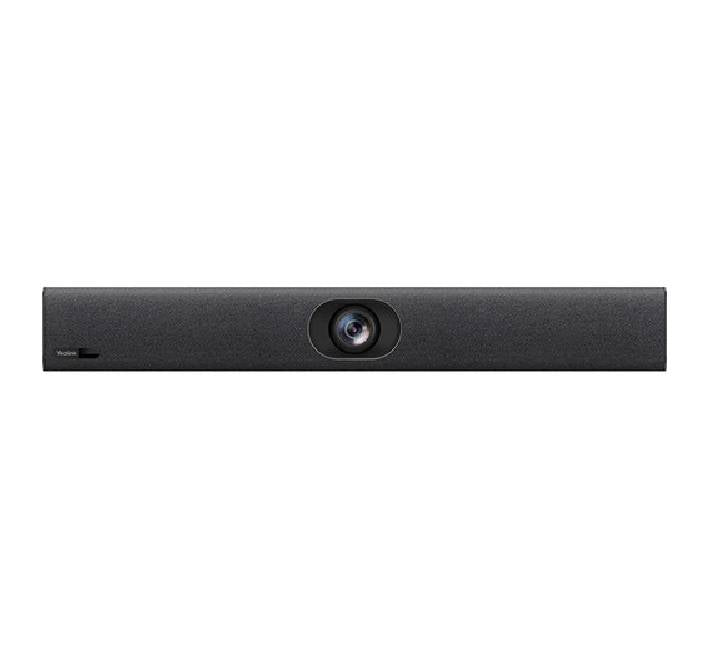

Transform your small meeting spaces and huddle rooms into collaborative hubs with the Yealink UVC40-E2 All-in-One USB Video Bar. Combining a high-precision 20MP camera, an 8-microphone MEMS array, and a premium 5W full-duplex speaker into a single, compact body, the UVC40-E2 delivers enterprise-grade audio and video performance.
Equipped with an ultra-wide 133° field of view, AI Auto Framing, and intelligent Speaker Tracking, the UVC40-E2 automatically highlights whoever is speaking while ensuring everyone in the room stays clearly visible. Designed for effortless BYOD (Bring Your Own Device) deployment, it features simple USB plug-and-play operation compatible with Zoom, Microsoft Teams, Google Meet, and Cisco Webex.
Key Features
- 20MP Ultra HD 4K Camera: High-performance 1-inch CMOS sensor captures vivid, crystal-clear 4K video resolution at 30fps.
- 133° Ultra-Wide Angle Lens: Covers the entire meeting space without distortion, ensuring participants seated close to the camera remain in view.
- AI-Powered Camera Control: Built-in Auto Framing and Speaker Tracking continuously adjust camera view based on who is talking and room dynamics.
- 8-MEMS Microphone Array: Omnidirectional mics provide 180° voice pickup with full-duplex audio up to 6 meters (20 feet).
- Yealink Noise Proof & Acoustic Echo Cancellation: Filters background distractions, HVAC noise, and room echoes for clear conversations.

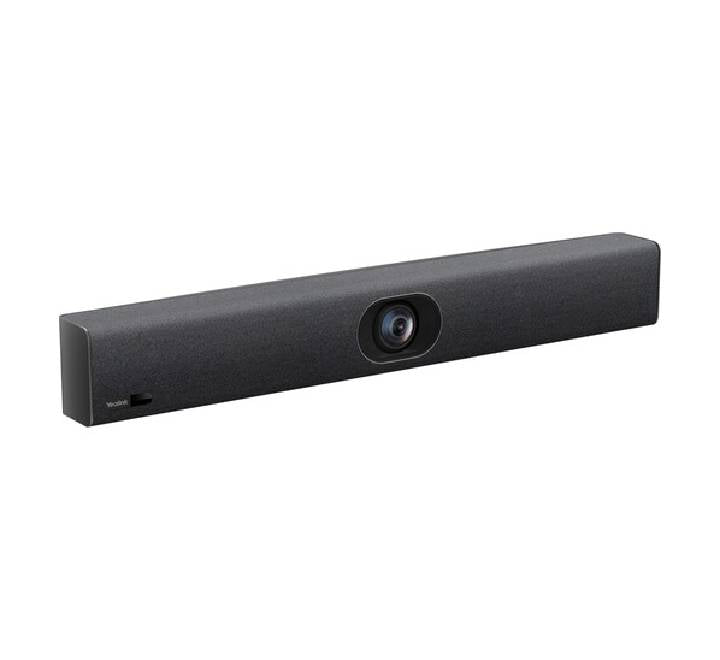

- Electric Automatic Privacy Shutter: Motorized lens cap opens when a meeting begins and automatically closes when ended.
- Integrated Wi-Fi & Device Management: Remotely manage, configure, and upgrade firmware via Yealink Management Cloud Service (YMCS) or RoomConnect.
- Seamless Plug-and-Play USB: Connects to PCs, Macs, or interactive displays using a standard USB cable without driver installation.
-
All-in-one USB Video Bar for Small Rooms
-
1x UVC40 E2 all-in-one USB video bar
-

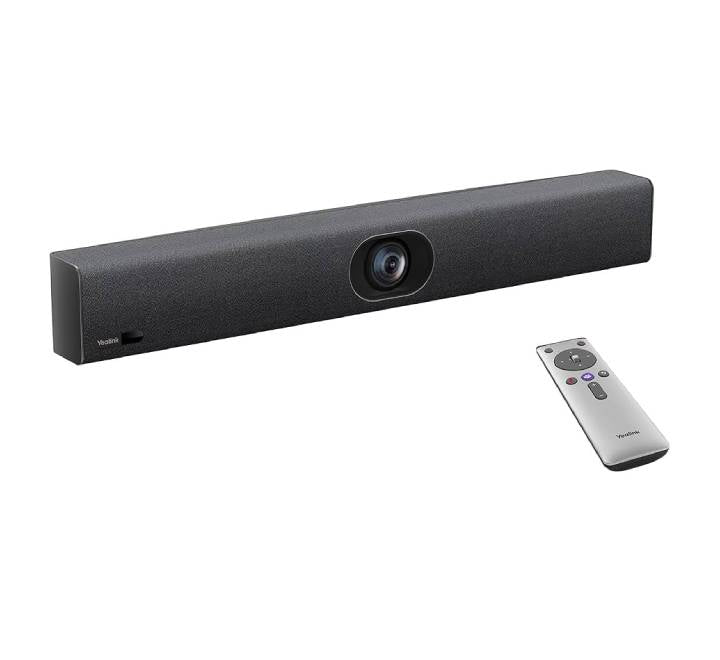

1x VCR20 remote control
-
1x 7m USB2.0 cable
-
1x Wall mount bracket, 1x TV-Clip Mount
-
1x power adapter
Technical Specifications
| Category | Specification Details |
|---|---|
| Brand & Model | Yealink UVC40-E2 |
| Camera Sensor | 20 Megapixel CMOS Sensor (1-inch) |
| Max Resolution | 4K Ultra HD (3840 x 2160) @ 30fps |
| Field of View (FOV) | 133° Diagonal / 120° Horizontal |
| Digital Zoom | 8x ePTZ Digital Zoom |
| AI Smart Features | Auto Framing, Speaker Tracking, Picture-in-Picture, AI Noise Cancellation |
| Microphone System | Built-in 8-Element MEMS Microphone Array |
| Pickup Range | Up to 6 Meters (20 Feet) |
| Speaker Unit | Built-in 5W High-Fidelity Speaker (92dB @ 0.5m) |
| Connectivity | 1x USB 3.0 Type-B, 1x USB 2.0 Type-A, 1x Yealink Microphone Port (RJ45), 3.5mm Line-In |
| Wireless Connectivity | Built-in Wi-Fi & Bluetooth |
| Privacy Control | Motorized Automatic Privacy Lens Shutter |
| System Requirements | Windows 7/8.1/10/11, macOS 10.10 or higher |
| Dimensions & Weight | 600 mm × 68 mm × 82 mm (23.6" × 2.7" × 3.2") | ~2.56 kg |
