Description

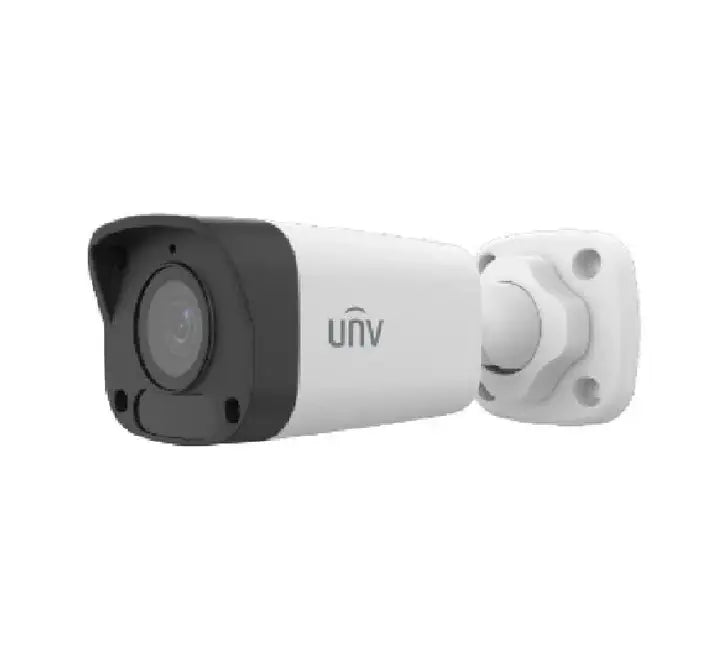

Bring superior clarity and intelligence to your surveillance network with the Uniview UNV IPC2125LB-AF28-A2. This high-definition 5MP Fixed IR Bullet Network Camera delivers ultra-crisp 2592 × 1944 resolution video, making it easy to identify critical details across your property. Equipped with an advanced 2.8mm wide-angle lens and edge smart analytics, it provides an expansive field of view with fewer blind spots, perfect for residential perimeters, parking lots, and corporate outdoor pathways.
Key Features
- Stunning 5MP Ultra-HD Clarity: Captures high-quality imagery up to 2592 × 1944 resolution at 20 frames per second using a high-grade 1/3.0" progressive scan CMOS sensor.
- Human Body Detection 2.0: Powered by intelligent algorithms that filter out false alarms triggered by animals, falling leaves, or weather changes, alerting you only to real human-based security events.

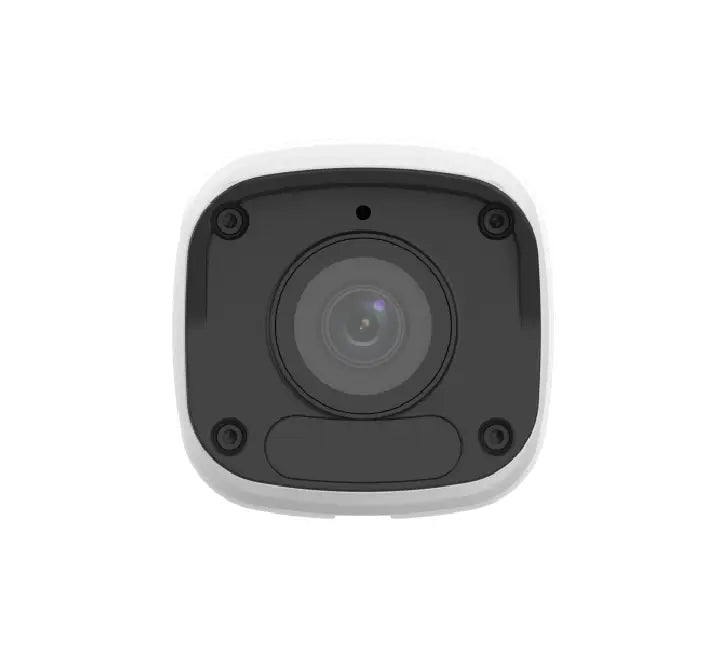

- 2.8mm Ultra-Wide Angle Lens: Offers a wide 94.3° horizontal field of view, maximizing your monitoring coverage with a single hardware deployment.
- Integrated Audio Surveillance: Features a high-sensitivity built-in microphone with background noise suppression, capturing clear ambient audio to accompany your video footage.
- Smart IR Night Vision: High-performance infrared LEDs illuminate targets up to 30 meters (98.4 feet) away in complete darkness, using auto-adjusting Smart IR to prevent whiteout exposures on moving subjects.
- Ultra 265 Efficiency: Implements proprietary deep-compression technology that reduces bandwidth and drops network NVR storage consumption by up to 75% compared to standard H.264 video.
- Weatherproof IP67 Graphene Housing: Constructed from an innovative graphene-infused composite structure that ensures exceptional heat dissipation, anti-corrosion resilience, and full dust/waterproofing.
Technical Specifications
| Specification | Details |
|---|---|
| Model | IPC2125LB-AF28-A2 |
| Image Sensor | 1/3.0" Progressive Scan CMOS, 5 Megapixel |
| Maximum Resolution | 2592 × 1944 (5MP) @ 20fps |
| Lens Configurations | 2.8mm Fixed Lens (Aperture: F2.0) |
| Field of View (FoV) | Horizontal: 94.3° | Vertical: 52.2° | Diagonal: 99.6° |
| Smart Analytics | Human Body Detection 2.0, Motion Detection, Audio Detection |
| Night Vision Distance | Smart IR up to 30 meters (98.4 feet) |
| Video Coding Options | Ultra 265, H.265, H.264 (Dual Streams Supported) |
| Audio Interface | Built-in Mic, G.711U / G.711A Compression |
| Ingress Protection | IP67 Weatherproof Dust & Water Resistant |
| Power Source | PoE (IEEE 802.3af) or DC 12V ± 25% (Max. 3.9W) |
| Network Integration | 1 × RJ45 10M/100M Base-TX, ONVIF (Profile S, Profile T), API, SDK |
