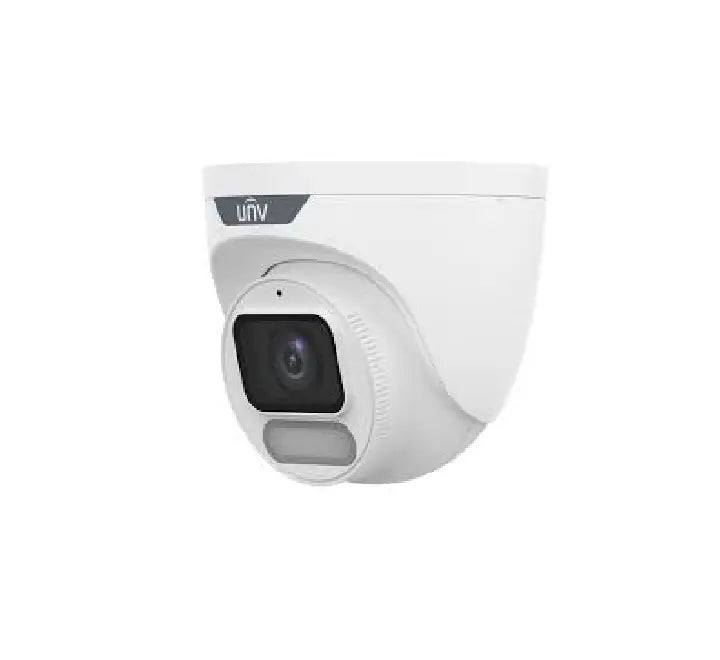

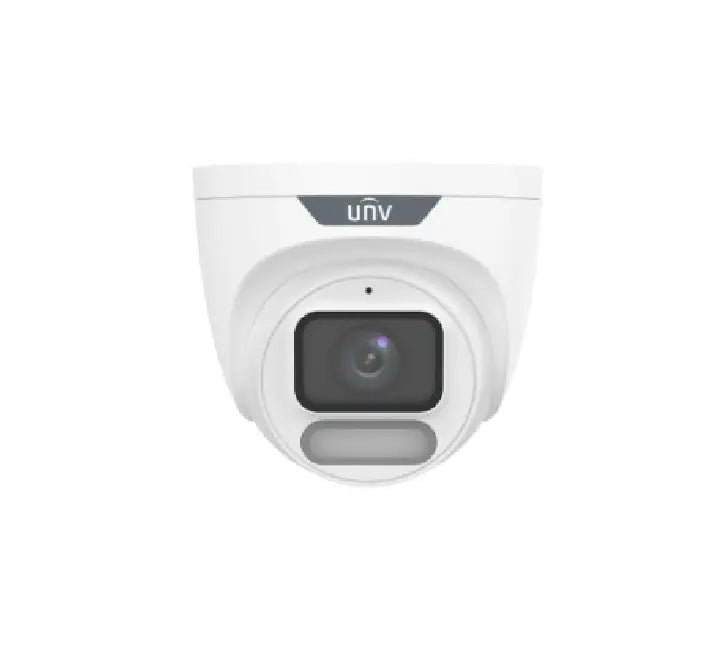

Uniview IPC3624LE-ADF40K-WP 4MP ColorHunter Fixed Turret Network Camera
The Uniview IPC3624LE-ADF40K-WP is a high-performance 4MP network turret camera designed for round-the-clock surveillance. Part of Uniview's innovative Easy series, it combines a premium 1/1.8" Progressive Scan CMOS sensor with a large F1.0 aperture lens. Equipped with advanced ColorHunter and Wise-ISP technology, this camera delivers exceptionally clear, vibrant, full-color imagery even in extreme low-light environments, eliminating the limitations of traditional black-and-white night vision.
Key Features
- 24/7 Vivid Color: ColorHunter technology alongside a large F1.0 aperture ensures full-color details in dark scenes.
- Wise-ISP Intelligent Processing: Deeply optimizes color retention, sharpness, and mitigates motion blur under minimal lighting.
- High-Definition Video: Crisp 4MP (2688 x 1520) resolution streaming at up to 25 frames per second.
- True 120dB WDR: Clear performance in high-contrast environments with strong backlight exposure.
- Smart Intrusion Prevention (SIP Lite): Filters false alerts by accurately classifying human and vehicle targets.
- Built-In Microphone: High-fidelity, real-time integrated audio recording for a complete security picture.
- Corridor Mode (9:16): Maximizes usable vertical field of view for long corridors, hallways, and narrow pathways.
- Efficient Compression: Ultra 265, H.265, and H.264 video codec support saves up to 75% on bandwidth and local storage.
- Rugged Outdoor Protection: Fully IP67 weatherproof rating and 4KV surge protection for reliable deployment in harsh climates.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Camera Sensor | 1/1.8" Progressive Scan, 4.0 Megapixel, CMOS |
| Max Resolution | 4MP (2688 × 1520) @ 25/20 fps |
| Lens Type | 4.0 mm Fixed Iris @ F1.0 |
| Field of View (FoV) | Horizontal: 96.1° | Vertical: 52.2° | Diagonal: 113.5° |
| Minimum Illumination | Color: 0.0003 Lux (F1.0, AGC ON) |
| Illumination Distance | Warm White Light up to 30 meters (98.4 ft) |
| Wide Dynamic Range | 120 dB True WDR |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Audio Feature | Built-in high-fidelity microphone |
| Edge Storage | MicroSD Slot, supporting up to 512 GB |
| Power Options | DC 12V±25% or Power over Ethernet (PoE IEEE 802.3af) |
| Power Consumption | Maximum 2.8W |
| Ingress Protection | IP67 Weatherproof rating |
| Material Construction | Engineered Graphene + Metal Housing |
| Dimensions & Weight | Φ118 x 106 mm (Φ4.6” x 4.2”) | 0.48 kg (1.06 lb) |
