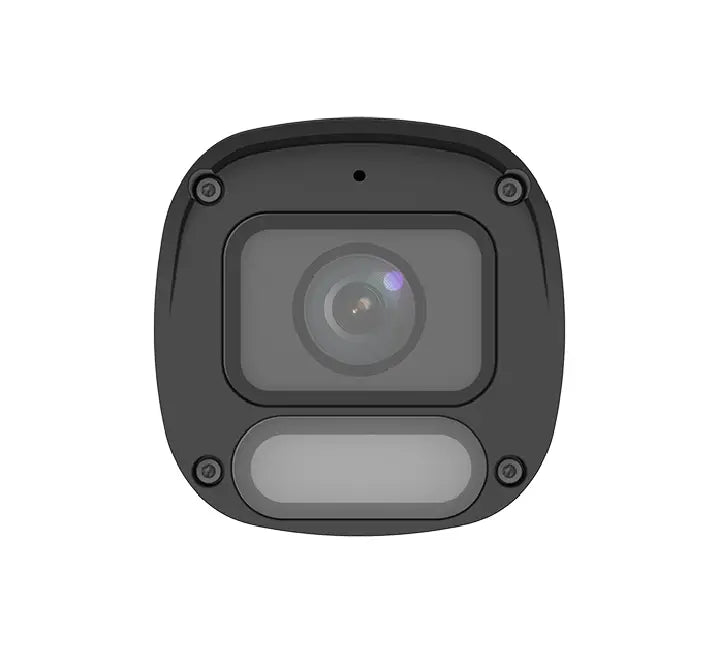

Uniview IPC2314LE-ADF40KM-WP 4MP ColorHunter Wise-ISP Fixed Bullet Network Camera
Upgrade your perimeter security with the industry-leading clarity of the Uniview IPC2314LE-ADF40KM-WP. This premium 4MP fixed bullet network camera changes the rules of nighttime surveillance by completely eliminating dark, grainy black-and-white feeds. Powered by Uniview’s signature ColorHunter hardware and state-of-the-art Wise-ISP technology, it intensely optimizes image processing frame-by-frame, dramatically mitigating low-light motion blur while delivering brilliant full-color imagery even in near-total darkness.
Engineered for high-demand residential properties, open parking lots, and corporate assets, this camera boasts a highly sensitive 1/1.8" image sensor, 120dB True WDR to conquer harsh glare, an integrated microphone, and edge AI smart filtering to keep your property accurately protected around the clock.
Key Features & Performance Benefits
- 4MP Ultra-HD Resolution: Records crisp, highly detailed video at 2688 × 1520 pixels to ensure facial features, license plates, and key details stay perfectly legible.
- 24/7 ColorHunter Color Fidelity: Built with a massive F1.0 large aperture lens and an advanced large-format 1/1.8" CMOS sensor, absorbing maximum ambient light to capture color down to an astonishing 0.0003 Lux.
- Next-Gen Wise-ISP Technology: Intelligently handles noise reduction, color balance, and dynamic range to deliver crisp images without the "smearing" or trailing common in low-light surveillance.
- Supplemental Warm Soft-Glow LEDs: Equipped with smart warm light illuminators providing up to 30 meters (98 feet) of soft evening lighting when natural light is absent.
- Smart Intrusion Prevention (SIP) Lite & UMD: Leverages edge-based AI classification to intelligently identify human and vehicle paths, preventing annoying false alerts from swaying branches, bugs, or weather patterns.
- 120dB True WDR: Perfectly balances dark shadows and harsh sunlight simultaneously, ensuring clean exposure when facing car headlights, reflections, or glass windows.
- Integrated Audio & Heavy-Duty Build: Features an onboard microphone for synchronized audio contexts. Constructed with a robust Graphene-Metal housing rated at IP67 weatherproof durability (-30°C to 60°C).
Technical Specifications
| Specification Parameter | Details / Configurations |
|---|---|
| Model Number | IPC2314LE-ADF40KM-WP |
| Camera Sensor | 1/1.8" Progressive Scan, 4.0 Megapixel, CMOS |
| Max Resolution | 4MP (2688 × 1520) @ 25 fps |
| Lens Specs & FOV | 4.0mm Fixed Lens @ F1.0 | Horizontal FOV: 88.2°, Vertical: 47.6°, Diagonal: 104.0° |
| Minimum Illumination | Color: 0.0003 Lux (F1.0, AGC ON) |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Dynamic Range (WDR) | 120dB True WDR |
| Audio Features | Built-in Mic (Supports G.711U, G.711A Compression) |
| Edge Storage Slot | MicroSD card slot, supports up to 512 GB capacity |
| Power Demands | DC 12V±25% or Power over Ethernet (PoE IEEE 802.3af) | Max 2.6W |
| Ingress Weather Protection | IP67 Weatherproof Structure | 4KV Surge Protection |
| Dimensions & Materials | 206 × 73 × 73mm (8.1” × 2.9” × 2.9”) | 0.48kg (1.06lb) | Graphene + Metal |
