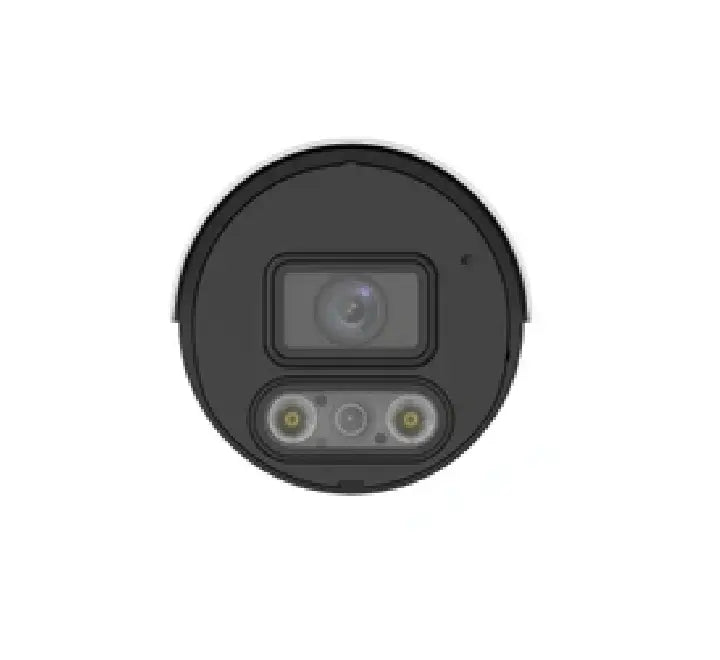

Uniview IPC2122LE-ADF40KMC-DL 2MP Easy Series ColorHunter Fixed Dual-Light Bullet Network Camera (4.0mm)
Secure your parameters and monitor medium-distance focal targets seamlessly with the Uniview IPC2122LE-ADF40KMC-DL. Outfitted with a premium 4.0mm fixed focal lens, this high-performance 2MP bullet network camera from the Easy Series delivers a more focused, compressed perspective that is optimized for corridors, side yards, and specific point-of-interest targets.
Utilizing UNV’s flagship ColorHunter and Smart Dual-Light technology, the camera records full-color video day and night. It rests in an invisible, non-intrusive Smart IR mode until integrated AI human analytics spot an active target, triggering a powerful warm white light up to 30 meters (98.4 ft) away to collect crisp, full-color forensic evidence. Combined with a 120dB True WDR hardware rating and built-in two-way audio components, it stands as a premium active deterrent system for any commercial or residential deployment.
Key Features
- Optimized 4.0mm Telephoto Lens: Features a focused 87.5° horizontal field of view, ideal for capturing more pixel density and closer details at extended distances than standard wide-angle modules.
- Smart Dual-Light ColorHunter Technology: Keeps monitoring discreet using smart IR undercover, instantly activating local warm white illumination to trap true full-color details when a real event occurs.
- True 120dB WDR: Preserves highly illuminated areas and complex deep shadows simultaneously without losing vital video data.
- Integrated Two-Way Audio Communication: A built-in high-sensitivity microphone paired with an internal high-output speaker allows immediate remote voice interactions.
- Precision Human Body Analytics: Eliminates false tracking alerts by utilizing specialized Cross Line and Intrusion analytics tuned specifically to filter for human silhouettes.
- Ultra 265 Efficiency: Saves up to 75% on local NVR storage space and network bandwidth demands using adaptive video encoding profiles.
- IP67 Architectural Resilience: Completely weather sealed to handle rain, wind, dust, and freezing conditions from -30°C to 60°C.
Technical Specifications
| Specification | Details |
|---|---|
| Camera Model | IPC2122LE-ADF40KMC-DL |
| Image Sensor Module | 1/2.8" Progressive Scan, 2.0 Megapixel, CMOS |
| Focal Length / Aperture | 4.0mm @ F1.6 Fixed Iris Lens |
| Field of View (FoV) | Horizontal: 87.5° | Vertical: 46.3° | Diagonal: 101.4° |
| Minimum Illumination | Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with Light Active |
| Dual-Light Illumination Distance | Smart IR: Up to 30m (98.4ft) | Warm White Light: Up to 30m (98.4ft) |
| Wide Dynamic Range (WDR) | True 120dB hardware WDR |
| Video Stream Configuration | Main Stream: 1080P (1920 × 1080) max 30 fps; Sub Stream: 720P (1280 × 720) max 30 fps |
| Encoding Formats | Ultra 265, H.265, H.264, MJPEG |
| Audio Hardware Support | Built-in Mic & Integrated Speaker (Supports full Two-Way Audio) |
| Smart Behavioral Intrusion | Cross Line and Intrusion Analytics configured with Smart Human Target Filtering |
| Local Edge Storage Slot | MicroSD card slot, matches up to 128 GB MicroSD cards |
| Ingress Environmental Rating | IP67 Waterproof & Weatherproof structural protection |
| Power System Requirements | DC 12V±25% local input, or Power over Ethernet (PoE IEEE 802.3af); Max 9.0W consumption |
