Description

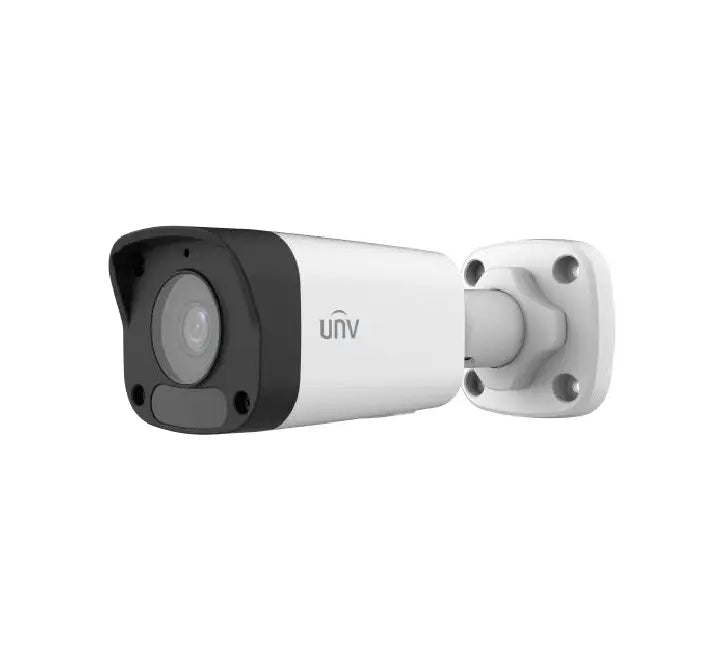

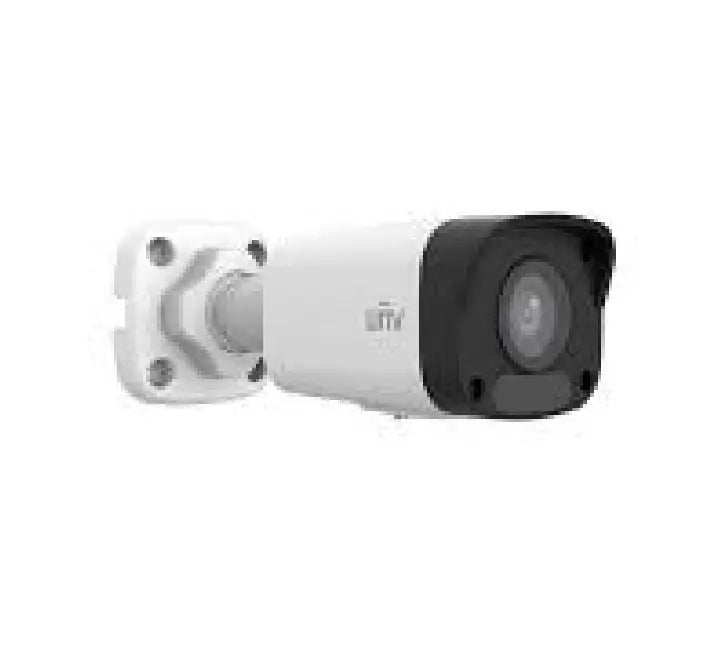

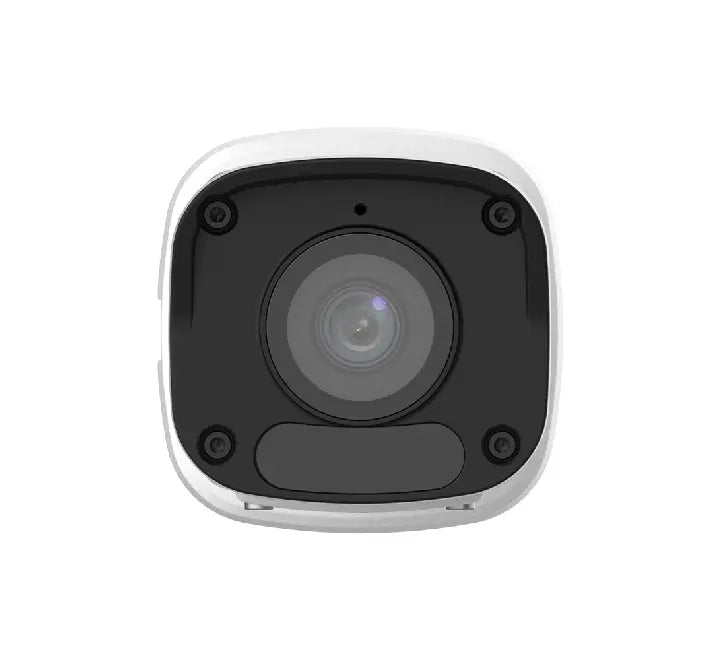

Uniview 2MP HD Fixed IR Mini Bullet Network Camera | IPC2122LB-ASF28(40)K-A
Secure your residential or commercial property with the high-performance Uniview IPC2122LB-ASF28(40)K-A Mini Bullet IP Camera. Part of Uniview's highly reliable Easy series, this camera delivers exceptional 2MP full HD resolution powered by a 1/2.9" progressive scan CMOS sensor. Engineered for 24/7 surveillance, it balances smart utility with budget-friendly efficiency, making it a perfect frontline choice for standalone setups or complete NVR network integration.
Key Features & Technology
- Crystal Clear 2MP Full HD: Captures high-quality video at 1080P (1920 × 1080) at up to 30 frames per second for smooth, recognizable footage.
- Next-Gen Audio Security: Equipped with a high-fidelity built-in microphone to monitor audio activity and capture critical situational evidence alongside your video streams.
- Ultra 265 H.265 Efficiency: Leverages deep compression algorithms (Ultra 265, H.265, H.264) to slash your bandwidth usage and storage requirements by up to 75% without sacrificing image resolution.
- Smart IR Night Vision: Features an integrated IR-cut filter and premium LEDs providing clear, black-and-white night vision up to 30 meters (98.4 ft) with adaptive Smart IR preventing overexposure of close-up objects.
- Rugged Weatherproof Construction: Boasts an IP67 rating, ensuring complete defense against dust storms, torrential rains, and sub-zero winter temperatures (-30°C to 60°C).
- Flexible Edge Storage & PoE: Supports localized standalone recording with a built-in MicroSD card slot (up to 512GB capacities) and supports effortless one-cable Power over Ethernet (PoE) deployment.
Product Video Overview
See the product in action and discover its compact form factor and premium features directly from the manufacturer:
Technical Specifications
| Specification Category | Details & Performance Values |
|---|---|
| Model Variants | IPC2122LB-ASF28K-A (2.8mm Lens) / IPC2122LB-ASF40K-A (4.0mm Lens) |
| Image Sensor | 1/2.9" Progressive Scan, 2.0 Megapixel, CMOS |
| Maximum Resolution | 1920 × 1080 (1080P) @ 30fps max |
| Minimum Illumination | Colour: 0.01 Lux (F2.0, AGC ON) | 0 Lux with IR Illuminators on |
| Horizontal Field of View (H) | 2.8mm Lens: 101.1° | 4.0mm Lens: 83.7° |
| Video Compression | Ultra 265, H.265, H.264, U-code technology (Main Stream) |
| Audio Support | Built-in Microphone; G.711U / G.711A Compression; Noise Suppression |
| Digital Wide Dynamic Range | Digital WDR (DWDR) & 2D/3D Digital Noise Reduction (DNR) |
| Local Edge Storage | MicroSD Slot, expandable up to 512 GB |
| Network Integration | ONVIF Compliant (Profile S, Profile G, Profile T), API, SDK |
| Ingress & Environmental | IP67 Weatherproof Rating | 4KV Surge Protection protection |
| Power Demands | DC 12V ±25% or Power over Ethernet (PoE IEEE 802.3af) | Max 5.0W consumption |
| Dimensions & Construction | 161 × 62 × 63 mm (6.3” × 2.5” × 2.5”) | Advanced Graphene + Plastic body (0.21kg) |
