Description

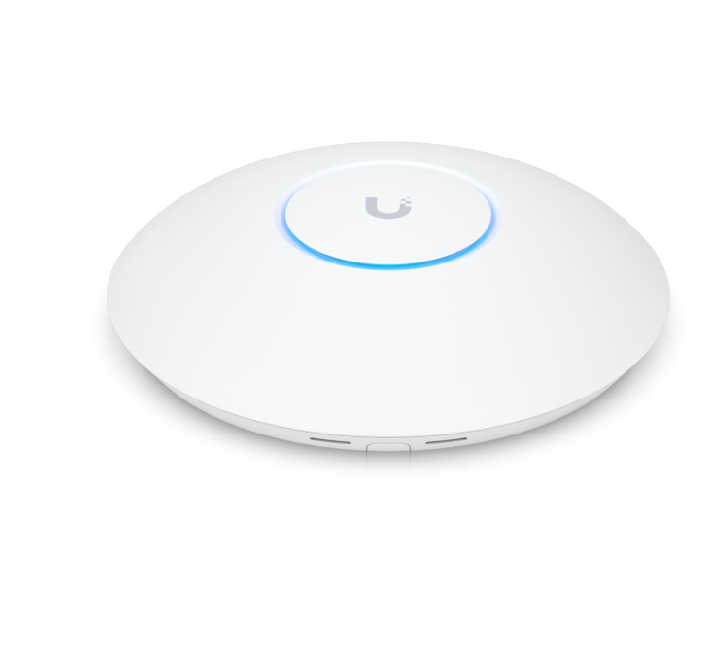

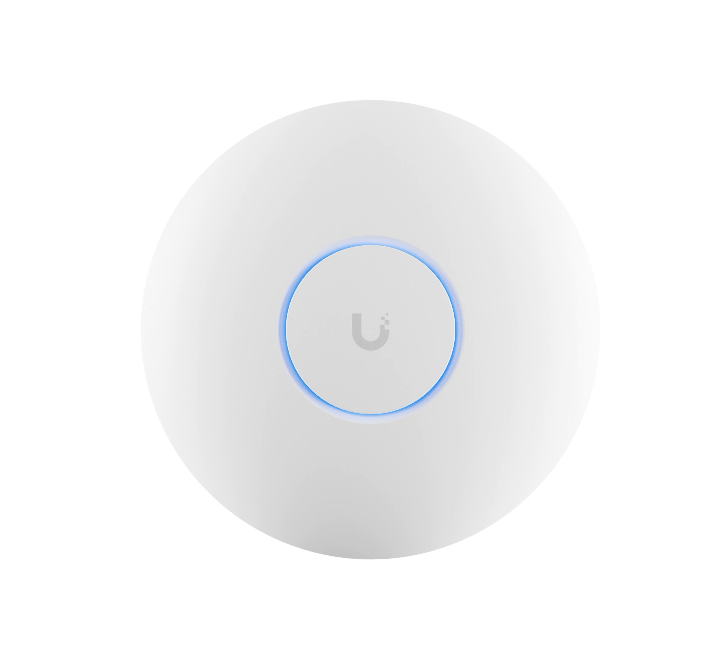

The Ubiquiti UniFi U7 Pro (U7-Pro) is a high-performance, ceiling-mounted Wi-Fi 7 access point engineered for demanding enterprise and modern smart home networking environments. Leveraging next-generation Wi-Fi 7 technologies, including the ultra-clean 6 GHz band, 320 MHz channel width, and Multi-Link Operation (MLO), the U7 Pro delivers blazing-fast wireless speeds and ultra-low latency. Outfitted with a 2.5 GbE uplink port and designed for scalable ecosystem management via UniFi Network, this access point provides high-capacity, interference-free coverage for up to 300+ connected client devices.
Key Features & Benefits
- Next-Gen Wi-Fi 7 Technology: Supports advanced Wi-Fi 7 features including 320 MHz channels, 4096-QAM, and MLO for unprecedented throughput and efficiency.
- Tri-Band Wireless Spectrum: Operates across the 2.4 GHz, 5 GHz, and the newly unlocked 6 GHz bands to significantly reduce signal congestion and interference.
- Multi-Gigabit 2.5 GbE Uplink: Equipped with a 2.5 GbE RJ45 ethernet port to bypass traditional Gigabit bottlenecks and maximize wireless backhaul performance.
- Expansive High-Capacity Coverage: Delivers up to 140 m² (1,500 ft²) of reliable coverage, easily supporting over 300+ concurrent active client connections.
- Seamless PoE+ Powering: Power the device cleanly over a single Ethernet cable using standard 802.3at PoE+ network switches or injectors.
- Centralized UniFi Management: Scalable ecosystem control allows you to monitor, configure, and manage guest networks via the intuitive UniFi Network application.
- Without POE Adapter
- Ceiling-mount WiFi 7 AP with 6 GHz support, 2.5 GbE uplink, 9.3 Gbps over-the-air
speed, and 300+ client capacity
Technical Specifications
| Specification | Details |
|---|---|
| Model Name / SKU | UniFi U7 Pro / U7-Pro |
| Wi-Fi Standards | Wi-Fi 7 (802.11be), Backward compatible with 802.11a/b/g/n/ac/ax |
| Spatial Streams (MIMO) | 2x2 Tri-Band (2.4 GHz, 5 GHz, 6 GHz) |
| Max. Aggregate Throughput | Up to 9.3 Gbps (688 Mbps 2.4GHz + 2882 Mbps 5GHz + 5765 Mbps 6GHz) |
| Networking Interface | 1 x 1/2.5 Gbps RJ45 Ethernet Port |
| Power Method | PoE+ (Power over Ethernet, 802.3at) |
| Max. Power Consumption | 21W |
| Antenna Gain | 2.4 GHz: 4 dBi | 5 GHz: 6 dBi | 6 GHz: 5.8 dBi |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| Enclosure & Mounting | Polycarbonate/Metal, Ceiling/Wall Bracket Included |
| Dimensions & Weight | Ø206 x 46 mm (Ø8.11 x 1.81") | 680 g (1.5 lb) |
Deployment Requirements
To fully utilize the multi-gigabit capabilities of your UniFi U7 Pro access point, the following architecture is highly recommended:
- A UniFi Network controller application managing system configurations.
- A 2.5 GbE network switch capable of supplying 802.3at PoE+ power (such as the UniFi Pro Max or Enterprise Switch lines).
