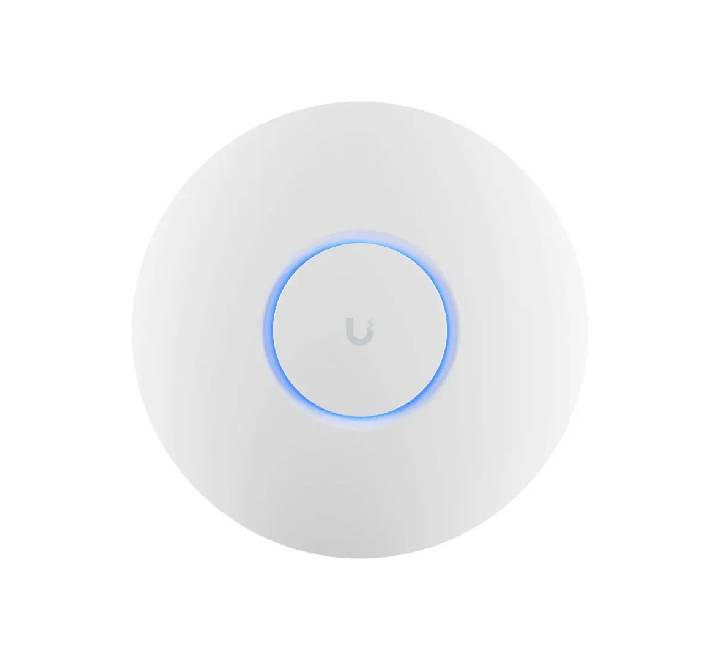

Upgrade your enterprise or high-density home network with the Ubiquiti UniFi Access Point U6 Plus (U6+). Designed as a high-performance upgrade to the popular U6 Lite, this compact, ceiling-mountable access point delivers dual-band WiFi 6 (802.11ax) speeds up to 2.4 Gbps, supporting over 300 connected devices across 1,500 sq ft (140 m²) of seamless coverage.
Key Features & Highlights
- High-Speed WiFi 6 Performance: Dual-radio 2.4 GHz / 5 GHz support delivering total aggregate throughput up to 2.97 Gbps (2.4 Gbps on 5 GHz and 573.5 Mbps on 2.4 GHz).
- 4 Spatial Streams (2x2 MU-MIMO): Powered by 2x2 DL/UL MU-MIMO technology on both frequencies for enhanced multi-user throughput and lower latency.
- Broad Coverage & Capacity: Connects 300+ concurrent clients with uninterrupted coverage up to 1,500 ft² (140 m²).
- Power over Ethernet (PoE): Powered via standard 802.3af PoE using a single GbE RJ45 port for clean, single-cable installations.
- Advanced Wireless Security: Enterprise-grade security supporting WPA3 Personal/Enterprise, Guest Network Isolation, and Private Pre-Shared Keys (PPSK).
- Seamless Network Management: Centrally configure, monitor, and update your network via the UniFi Network Application (Version 7.3.76 or later).

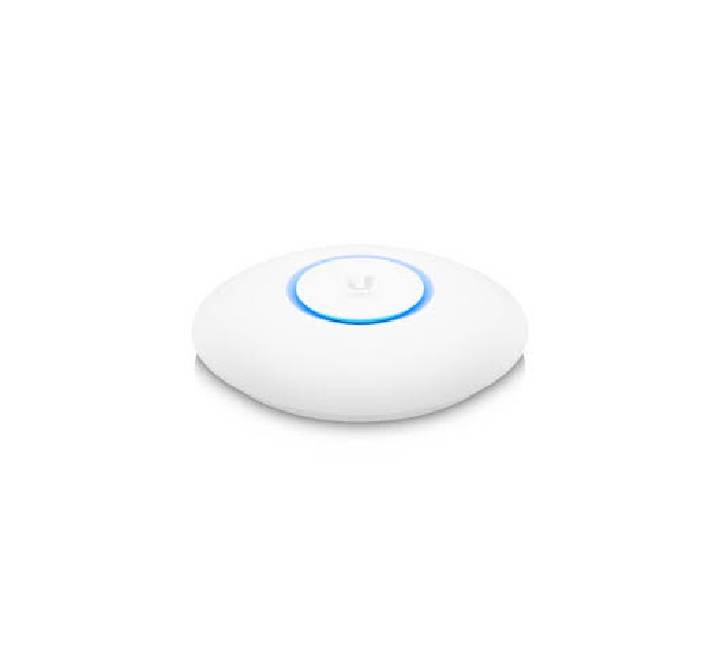

- Sleek, Compact Design: Low-profile ceiling and wall mounting (mounts included) that blend seamlessly into office or home environments.
- UniFi WiFi6 2x2 compact PoE access point
-
( Without POE Adapter )
- Warranty-1 Year
Watch UniFi Network Management in Action
Product Overview
Next-Gen WiFi 6 Efficiency
The UniFi U6+ leverages OFDMA and MU-MIMO technology to efficiently allocate bandwidth across hundreds of devices simultaneously. By transmitting data to multiple clients in parallel, it significantly reduces latency and optimizes throughput for bandwidth-heavy application streaming, VoIP calls, and smart IoT environments.
Centralized Management via UniFi Console
Manage your network from a single intuitive interface. The U6 Plus seamlessly integrates into your UniFi Network Application ecosystem, giving you deep visibility into client traffic, bandwidth limits, channel distribution, guest portals, and site-wide software updates with zero licensing fees.
Flexible and Effortless Deployment
Utilizing Power over Ethernet (PoE), the U6+ eliminates the need for nearby AC outlets. Its compact footprint (Ø160 x 33 mm) matches standard UniFi ceiling mounts, making upgrades from legacy models like the U6 Lite or AC Lite effortless.
Technical Specifications
| WiFi Standard | WiFi 6 (802.11ax / 802.11ac / 802.11n) |
|---|---|
| 5 GHz Rate | 2.4 Gbps (2x2 DL/UL MU-MIMO, HE160) |
| 2.4 GHz Rate | 573.5 Mbps (2x2 DL/UL MU-MIMO, HE40) |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Connected Clients | 300+ Devices |
| Networking Interface | (1) GbE RJ45 Port |
| Power Method | PoE / 44–57V DC (PoE Adapter not included) |
| Max. Power Consumption | 9W |
| Antenna Gain | 5.4 dBi (5 GHz) / 3.0 dBi (2.4 GHz) |
| Max. TX Power | 23 dBm (2.4 GHz & 5 GHz) |
| Mounting | Ceiling / Wall Mount (Kit Included) |
| Dimensions | Ø160 x 33 mm (Ø6.3 x 1.3") |
| Weight | 338 g (11.9 oz) / 413 g with mount |
| Software Requirement | UniFi Network Application Version 7.3.76 or higher |
