Description
Build a high-performance, future-proof network infrastructure with the Ubiquiti UniFi Switch Enterprise 8 PoE (USW-Enterprise-8-PoE). This fully managed, Layer 3 multi-gigabit switch is engineered to maximize the throughput of next-generation UniFi Wi-Fi 6E and Wi-Fi 7 access points. Deploying eight 2.5GbE RJ45 ports with auto-sensing PoE+ capabilities alongside dual ultra-fast 10G SFP+ uplink ports, it delivers exceptional switching capacity and flexible fiber routing choices in a compact, desk-mountable chassis.
Key Features
- High-Speed 2.5GbE Switching: Eight 2.5GbE RJ45 hardware ports eliminate bandwidth bottlenecks for ultra-fast multi-gigabit workstations, NAS drives, and modern wireless access points.
- Robust PoE+ Output Power: Features an integrated 120W internal power supply infrastructure supporting auto-sensing 802.3af/at PoE+ to efficiently run multiple network peripherals over single ethernet cables.
- Dual 10G SFP+ Fiber Ports: Two dedicated high-bandwidth 10G SFP+ uplink cages provide high-speed stacking interfaces or direct fiber links to your primary network routers and servers.
- Advanced Layer 3 Functionality: Supports enterprise-grade management parameters, including inter-VLAN routing, static routing, DHCP server control, and strict packet inspection rules.
- LCM Touchscreen Display: A built-in 1.3-inch color touchscreen offers immediate device health metrics, link speeds, PoE consumption data, and instant diagnostics at a single glance.
Technical Specifications
| Specification Categories | Technical Attributes |
|---|---|
| Brand Name / Model | Ubiquiti UniFi Switch Enterprise 8 PoE (USW-Enterprise-8-PoE) |
| Networking Interfaces | 8x 100/1000/2500 Mbps RJ45 Ports & 2x 10G SFP+ Fiber Uplinks |
| Management Interface | Ethernet In-Band / UniFi Network Application Software |
| PoE+ Output Ports | Ports 1 to 8 (PoE/PoE+ 802.3af/at, Pins 1, 2+; 3, 6-) |
| Total Available PoE Budget | 120W Max (Up to 30W maximum power draw per individual port) |
| Non-Blocking Throughput | 20 Gbps |
| Switching Total Capacity | 40 Gbps |
| Forwarding Packet Rate | 29.76 Mpps |
| Power Delivery Method | 100—240V AC, 50/60 Hz, Universal Internal Power Input |

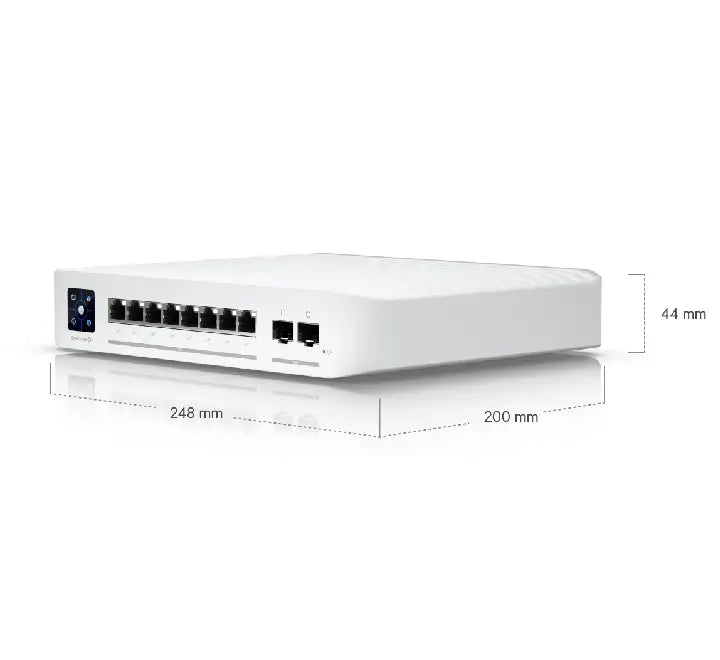

| Chassis Dimensions | 200 x 248 x 44 mm (7.87 x 9.76 x 1.73 inches) |
| Weight (Without Mounts) | 2.4 kg (5.29 lbs) |
| Enclosure Architecture | Polycarbonate and Rugged SGCC Steel Shell (Desktop or Wall Mountable) |
