Description

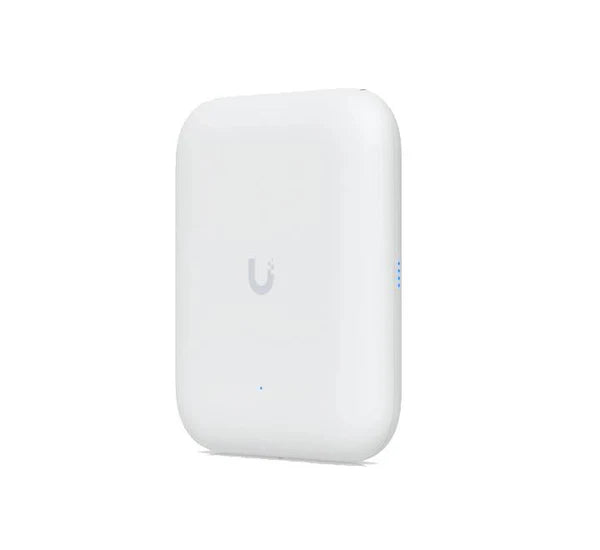

The Ubiquiti UniFi 7 Outdoor (U7-Outdoor) is a revolutionary WiFi 7 access point designed to deliver massive wireless performance to outdoor environments. Built for stadium-scale density and extreme weather conditions, it utilizes the latest WiFi 7 standard to provide multi-gigabit speeds and ultra-low latency for over 200+ connected devices.
What sets the U7-Outdoor apart is its versatile antenna design. Users can choose between the integrated directional antenna for focused long-range coverage or attach the included omni-antennas for 360-degree connectivity. With an IPX6 rating, it is engineered to survive the most demanding climates in Myanmar.
Key Features
- WiFi 7 Technology: Supports the 2.4 GHz and 5 GHz bands with 4096-QAM and Multi-Link Operation (MLO) for up to 9.3 Gbps aggregate throughput.
- Dual-Antenna Versatility: Integrated directional antennas for long-distance focus or external omni-antennas for wide-area coverage.
- 2.5 GbE Uplink: Equipped with a 2.5 GbE RJ45 port to prevent wired bottlenecks and maximize wireless performance.
- IPX6 Weatherproof: Industrial-grade protection against heavy rain, wind, and extreme temperatures.
- Massive Capacity: Optimized to support 200+ concurrent clients with high-efficiency data handling.
- PoE+ Powered: Simplified installation using a single cable for both power and data (802.3at PoE+).
WiFi 7 Without Limits: U7 Outdoor
Technical Specifications
| WiFi Standard | 802.11be (WiFi 7) |
| Aggregate Throughput | 9.3 Gbps (2.4 GHz: 688 Mbps, 5 GHz: 8.6 Gbps) |
| MIMO | 2x2 (2.4 GHz), 4x4 (5 GHz) |
| Networking Interface | (1) 1/2.5 GbE RJ45 Port |
| Antenna Options | Integrated Directional & External Omni (Included) |
| Power Method | PoE+ (802.3at) |
| Weatherproofing | IPX6 Rated |
| Dimensions | 206 x 203.2 x 46 mm (8.1 x 8 x 1.8") |
