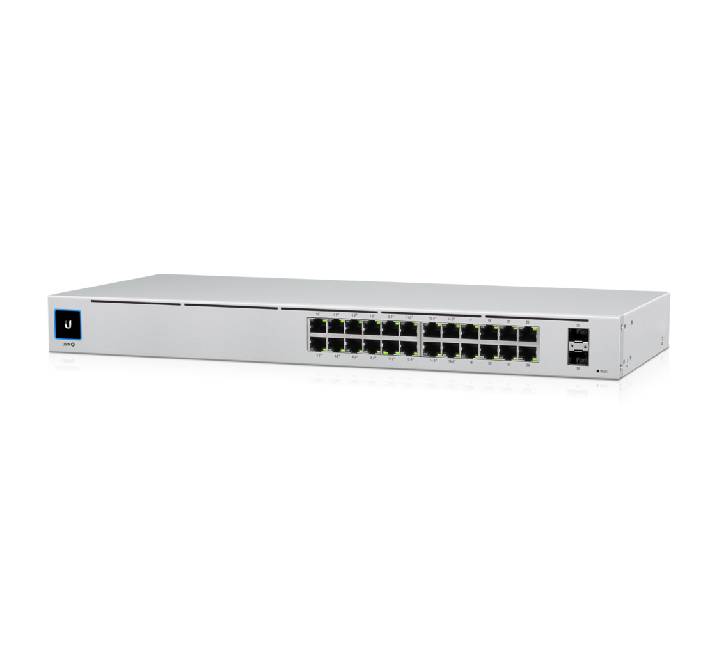

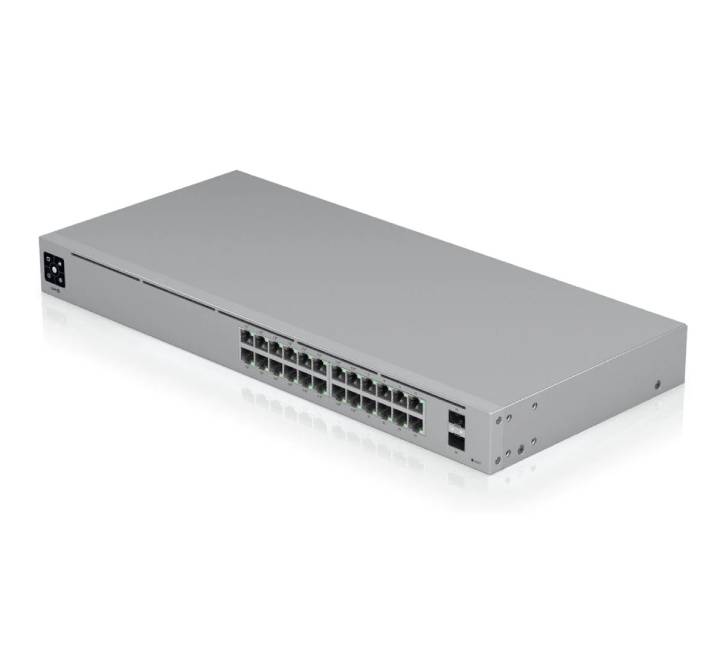

Ubiquiti UniFi USW-24-PoE – Silent, Powerful, Managed Layer 2 Switching
- Pre-Order Date : Lead time- 4 ~ 12 Weeks
The Ubiquiti UniFi USW-24-PoE is a configurable Gigabit Layer 2 switch designed for seamless network management and reliable power delivery. Outfitted with 24 Gigabit Ethernet ports—including 16 auto-sensing 802.3at PoE+ ports—and 2 1G SFP slots, this switch provides high-speed backbone uplinks and robust power infrastructure for your UniFi access points, IP cameras, and VoIP phones.
Engineered for seamless integration into enterprise, small business, or advanced smart home environments, the USW-24-PoE features a fanless thermal design that delivers completely silent cooling performance. Monitor your network metrics at a glance using the intuitive front-facing 1.3" color touchscreen display, or leverage the augmented reality (AR) capability via the UniFi Mobile App for instantaneous visual port mapping.
Key Features
- 16 PoE+ Ports (802.3at): Simplifies hardware deployment by delivering up to 32W of power per port across 16 ports, with a total internal PoE budget of 95W.
- 1G SFP Fiber Uplinks: Two dedicated 1 Gbps SFP cages allow for high-capacity uplink aggregation or long-distance fiber connections without sacrificing any copper ports.
- Completely Silent Performance: Advanced passive cooling hardware eliminates the need for loud internal fans, making it ideal for office spaces, retail environments, or home tech closets.
- 1.3" Touchscreen Display: Convenient LCM color touchscreen displays real-time system status, power metrics, throughput statistics, and connected device details.
- Centralized UniFi Cloud Management: Configure, monitor, and scale your network seamlessly through a single, license-free interface using the powerful UniFi Network Application.
- AR-Assisted Port Management: Utilize the UniFi mobile app on your smartphone to instantly visualize cable connections and port statuses superimposed over your actual rack unit.
- UniFi 24Port Gigabit Switch with PoE and SFP
Official Product Overview Video
Technical Specifications
| Specification | Value |
|---|---|
| Model | USW-24-PoE |
| Networking Interfaces | 24x 10/100/1000 Mbps RJ45 Ports & 2x 1G SFP Ports |
| PoE Interfaces | 16x PoE+ IEEE 802.3af/at (Ports 1 - 16) |
| Total Available PoE | 95 Watts |
| Switching Capacity | 52 Gbps |
| Total Non-Blocking Throughput | 26 Gbps |
| Forwarding Rate | 38.69 Mpps |
| Power Method / Supply | 100-240VAC, 50/60 Hz Universal Input / Internal 120W AC/DC |
| Max. Power Consumption | 25W (Excluding PoE Output) |
| Display | 1.3" Color LCM Touchscreen Display |
| Management | UniFi Network Controller (In-Band Ethernet) |
| Cooling System | Passive (Fanless, Completely Silent) |
| Dimensions & Weight | 442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72") / 3.00 kg (6.61 lb) |
