Description

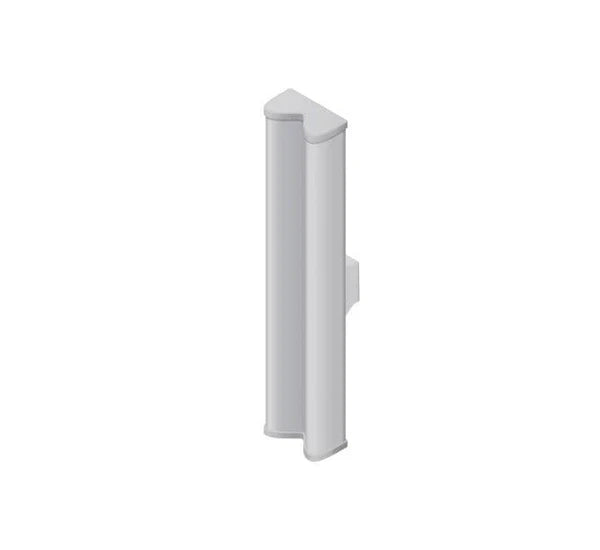

The Ubiquiti airMAX 2G15-120 is a Carrier Class 2x2 Dual Polarity MIMO Sector Antenna designed to integrate seamlessly with Rocket M2 radios (sold separately). This antenna provides high-gain, 120-degree sectoral coverage, making it an essential component for creating powerful Point-to-MultiPoint (PtMP) base stations in high-interference 2.4 GHz environments.
With its industrial-strength construction and advanced RF isolation, the AM-2G15-120 is built to deliver stable, high-speed wireless connectivity over long distances, even in the most challenging weather conditions across Myanmar.
Key Features
- High Gain Performance: 15 dBi gain optimized for long-range 2.4 GHz network coverage.
- 120° Beamwidth: Provides wide sectoral coverage to connect multiple client devices from a single base station.
- Plug-and-Play Integration: Features a built-in Rocket mount, allowing you to snap the Rocket M2 into place without specialized tools.
- 2x2 MIMO Technology: Dual-polarity design enhances data throughput and link reliability.
- Carrier-Class Construction: Robust mechanical design with UV-stabilized components for long-term outdoor durability.
- RF Isolation: Improved cross-pol isolation and F/B ratio to reduce interference in co-location setups.
How airMAX Sector Antennas Work
Carrier-class performance for scalable PtMP networks.
Technical Specifications
| Frequency Range | 2.3 - 2.7 GHz |
| Gain | 15.0 - 16.0 dBi |
| HPOL Beamwidth | 123° (6 dB) |
| VPOL Beamwidth | 118° (6 dB) |
| Electrical Downtilt | 4° |
| Polarization | Dual-Linear |
| Wind Loading | 156 N @ 200 km/h (35 lbf @ 125 mph) |
| Dimensions | 700 x 145 x 93 mm (27.56 x 5.71 x 3.66") |
