Description
Carrier-Class 5 GHz Gigabit Point-to-Point Wireless Backhaul

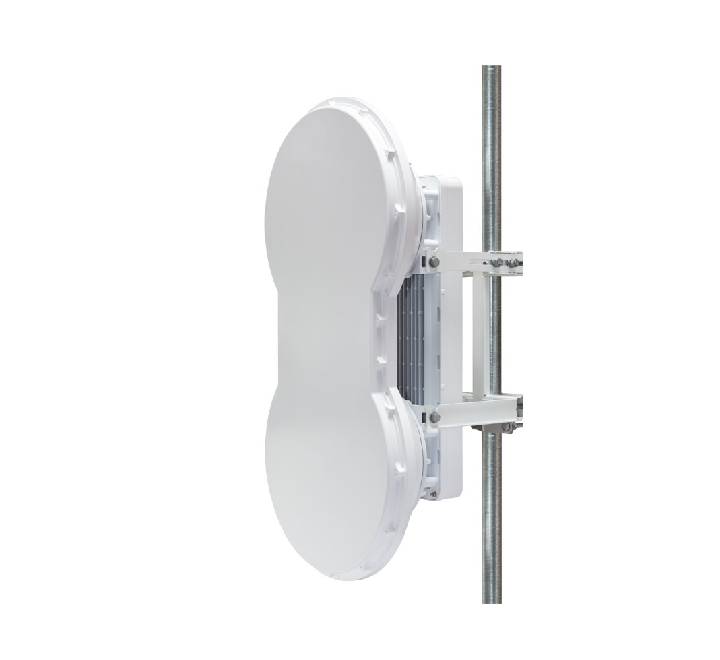

The Ubiquiti airFiber® AF-5 is a high-performance 5 GHz Point-to-Point (PtP) radio engineered for long-range, carrier-class wireless backhaul links. Operating in the mid-band 5 GHz frequencies (5470–5950 MHz), the airFiber 5 delivers true gigabit performance with aggregate throughput exceeding 1.2+ Gbps and a reach of 100+ kilometers.
Built for WISPs, enterprise networks, and public safety applications, the AF-5 features Ubiquiti’s custom INVICTUS™ silicon, proprietary Hybrid Division Duplexing (HDD) technology, and integrated GPS synchronization for ultra-low latency and maximum spectral efficiency.
Key Features
- Gigabit Throughput: Delivers up to 1.2+ Gbps aggregate speed with over 1 million packets per second (PPS) processing power.
- Extreme Long-Distance Range: Capable of establishing high-speed backhaul links over distances up to 100+ km.
- Hybrid Division Duplexing (HDD): Combines the low latency of FDD with the spectral efficiency of TDD to eliminate long-distance propagation delay.
- Dual-Antenna Architecture: Features an integrated 23 dBi dual-slant isolation antenna system for improved signal-to-noise ratio and noise immunity.
- GPS Synchronization: Integrated GPS clock synchronization allows precise timing to prevent co-location interference on shared towers.
- Robust Security & Encryption: Protects data links using hardware-accelerated 128-bit AES encryption.
- Rugged Monocoque Design: Weather-resistant construction designed to withstand extreme environments with up to 125 mph wind survivability.
Technical Specifications
| Model | airFiber AF-5 (AF5) |
| Operating Frequency | 5470 – 5950 MHz (Mid-Band 5 GHz) |
| Max Throughput | 1.2+ Gbps |
| Maximum Range | 100+ km (Region Dependent) |
| Antenna Gain | 23 dBi (TX & RX) |
| Networking Interfaces | (1) 10/100/1000 MbE RJ45, (1) 10/100 MbE Management, (1) RJ-12 Aux Tone |
| Channel Bandwidths | 10 / 20 / 30 / 40 / 50 MHz |
| Modulation Options | 1024QAM, 256QAM, 64QAM, 16QAM, QPSK MIMO |
| Power Method | Passive Power over Ethernet (42–58V DC) |
| Power Supply | 50V, 1.2A PoE Gigabit Adapter (Included) |
| Max Power Consumption | 40W |
| Dimensions & Weight | 938.4 x 468.4 x 281.4 mm | 16 kg (Mount Included) |
| Operating Temperature | -40°C to 55°C (-40°F to 131°F) |
