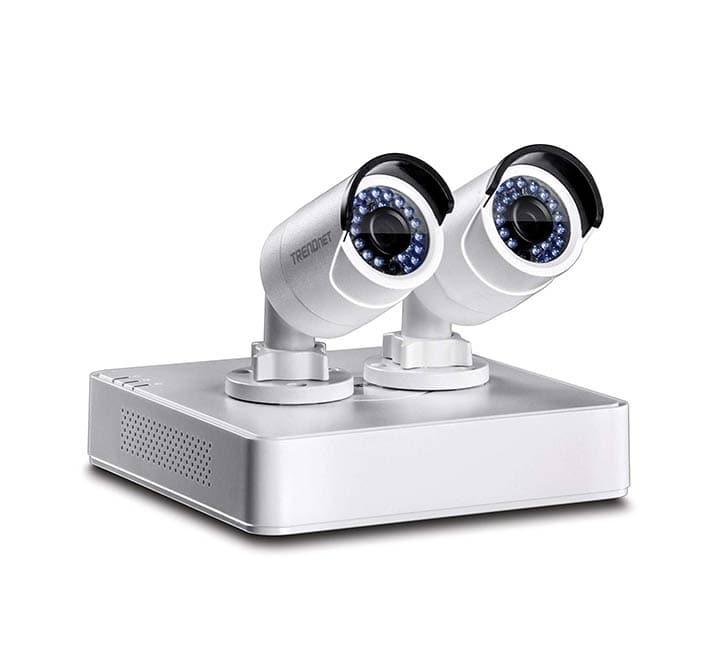

Bring a comprehensive, plug-and-play security surveillance architecture to your home or office with the TRENDnet TV-NVR104K 4-Channel HD PoE NVR Kit. This all-in-one hardware solution offers a reliable, standalone network video recorder designed to effortlessly manage up to four Power over Ethernet (PoE) IP cameras. To get your security system running immediately, the kit comes bundled with two high-definition outdoor cameras and a pre-installed 1TB security-grade hard drive for weeks of continuous video recording.
Featuring automated camera detection and configuration, the TV-NVR104K eliminates the headache of manual network routing and complex multi-device setups. Simply plug the cameras into the integrated PoE ports using the included network cables, and the recorder automatically delivers power, handles data streams, and activates the live feed on your connected screen.
Key Features
- All-In-One Security Solution: Includes a 4-channel network video recorder, two outdoor 720p HD network cameras, and all required network cabling.
- Pre-Installed 1TB Storage: Features a built-in 1TB security-grade SATA hard drive, providing ample local storage space for continuous or motion-triggered video archiving.
- Integrated 4-Port PoE Switch: Simplifies physical camera installation by feeding both electrical power and video data over a single standard Ethernet cable.
- Weatherproof HD Cameras: The two bundled bullet-style cameras feature an IP66 weather-rated housing and up to 30 meters (100 feet) of crisp night vision visibility.
- Dual Video Outputs: Connect a dedicated display to the NVR console effortlessly using the localized VGA port or the high-definition HDMI interface.
- Remote Mobile Viewing: Keep tabs on your property from anywhere using free iOS® and Android™ mobile monitoring apps and standard web browsers.
- Advanced Playback & Export: Quickly scrub through hours of footage with convenient time-slice playback options, and easily export critical video clips via the integrated USB ports.
Technical Specifications
| Specification | Details |
|---|---|
| Channels Supported | 4 Channels (Manages up to 4 PoE cameras) |
| Included Hardware | 1 x 4-Channel NVR (1TB HDD pre-installed) & 2 x 720p PoE Outdoor Cameras |
| Camera Resolution | 720p HD (1280 x 720 pixels) at up to 30 frames per second |
| Network Interfaces | 4 x 10/100 Mbps PoE Camera Ports, 1 x 10/100 Mbps WAN Ethernet Port |
| Display Outputs | 1 x HDMI, 1 x VGA (Resolutions up to 1920 x 1080) |
| Audio Connectors | 1 x RCA Input, 1 x RCA Output |
| USB Interfaces | 2 x USB 2.0 Ports (For mouse console operation and local backup exports) |
| Recording Modes | Continuous, Scheduled, and Motion Detection triggers |
| NVR Dimensions | 199 x 199 x 47 mm (7.8 x 7.8 x 1.85 in.) |
| Camera Protection Rating | IP66 Weatherproof Rating (Dust and water resistant) |
