Reliable Around-the-Clock High-Definition Indoor Dome Surveillance

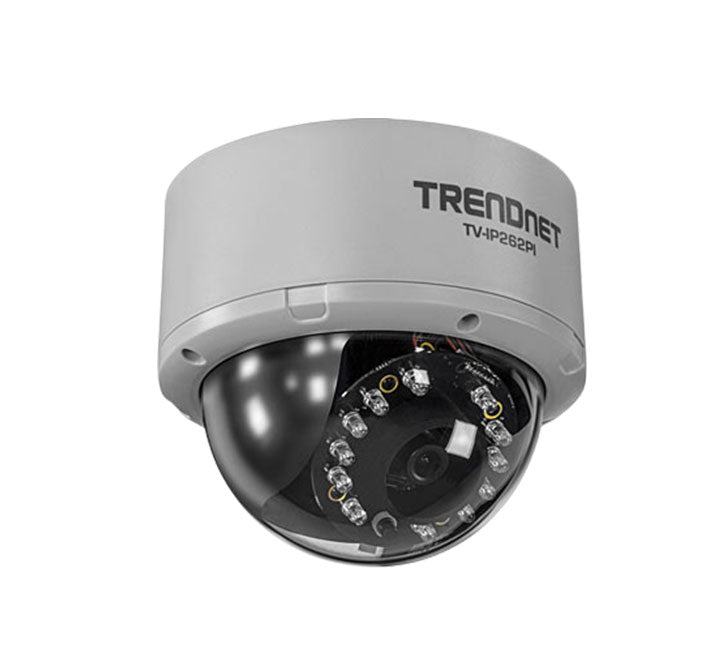

The TRENDnet Megapixel HD PoE Day/Night Dome Network Camera (TV-IP262PI) provides a powerful, compact security monitoring solution engineered to deliver clear, highly detailed surveillance footage for indoor residential spaces and commercial properties. Featuring a low-profile, tamper-resistant dome housing, this camera captures high-contrast megapixel resolutions to guarantee reliable facial identification and active area tracking even in completely dark environments.
Equipped with a ring of 12 integrated infrared LED illuminators, the TV-IP262PI auto-switches to clear monochrome imaging when ambient light drops, casting up to 12 meters (40 feet) of night vision coverage. For cleaner installations and reduced costs, the unit draws all data and system operating power over a single network drop when combined with a standard Power over Ethernet (PoE) switch. Users can easily remove the structural dome shell to manually orient the internal 3-axis bracket, locking down the exact viewing angle your facility requires.
Key Product Features
- Detailed Megapixel HD Video: Records video feeds up to a crisp 1280 x 1024 pixel grid using efficient H.264, MPEG-4, or MJPEG multi-stream processing options.
- 12-Meter Infrared Night Vision: Built-in 12-LED IR matrix triggers automatically in dark conditions to capture clear night scenes across a 40-foot deep path.
- Single-Cable PoE Installation: Fully complies with IEEE 802.3af standards, pulling inline power and data together to eliminate the hassle of extra electrical wiring.
- Flexible Manual Pan/Tilt Range: Features an adjustable internal camera housing base that can be manually rotated (-175° to +175°) and tilted (20° to 90°) for precision wall or ceiling mapping.
- Localized SD/SDHC Storage Slot: Supports direct-to-device archiving with an integrated edge storage slot matching up to 32GB cards for immediate backup security (Card sold separately).
- Smart Event and Motion Triggers: Lets you configure up to three isolated motion detection windows to initiate instant video capture scripts, FTP server offloads, or email alerts.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Camera Sensor & Lens | 1/4-inch Megapixel CMOS sensor | Fixed Board Lens Focal Length: 3.58mm | Aperture: F2.0 | 3x Digital Zoom profiles |
| Illumination & View Angles | 0 Lux minimum (with IR active) | 12-meter night range | Horizontal: ~63°–70° | Vertical: ~46°–48° tracking view matrix |
| Video Frame Rates | SXGA (1280x1024) and 720p at up to 15-20 fps | VGA (640x480) and QVGA at full 30 fps wire-speed streams |

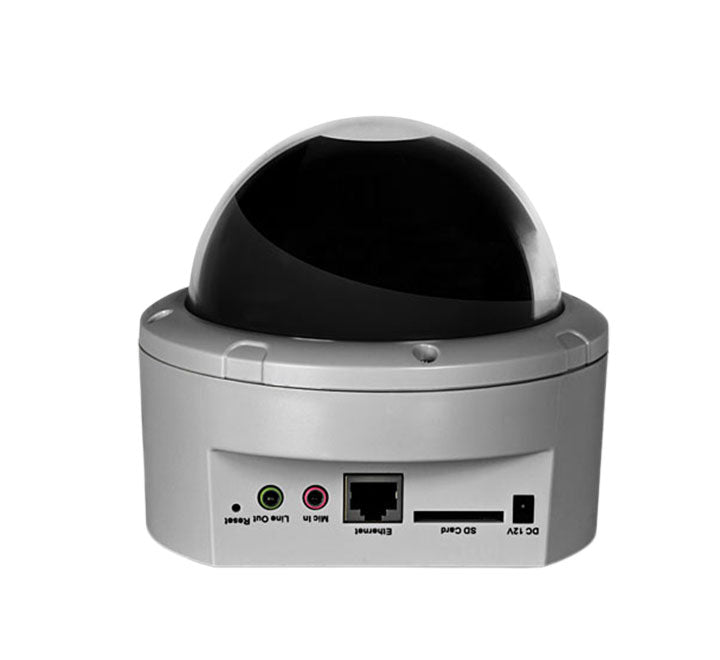

| Physical Interfaces | 1 x 10/100 Mbps Fast Ethernet PoE port | 1 x 3.5mm Microphone Out jack | 1 x 3.5mm Audio Out jack (Mono) | Reset button |
| Audio Hardware Support | Two-way audio capabilities via external third-party hardware integration | Sensitivity: -42dB | Formats: PCM / AMR |
| Network Protocols | IPv4, IPv6, TCP/IP, DHCP, HTTP, HTTPS, ONVIF Profile compliance, Samba server recording paths, RTSP stream mapping, 3GPP |
| Privacy & Text Overlays | Supports up to 2 opaque block mask privacy zones | Integrated real-time text, date stamp, and camera title display |
| Power Management | PoE (IEEE 802.3af) line power or auxiliary 12V DC 1.5A power supply input jack | Maximum device consumption: 7 Watts |
| Chassis Footprint | 131 x 131 x 127 mm (5.2 x 5.2 x 5.0 inches) | Weight: 570 g (20.1 oz) | Off-white tamper-resistant indoor composite dome |
| Certifications & Cover | CE compliant | FCC certified layout | Integrated hardware indicators (LEDs can be entirely deactivated via interface) |
