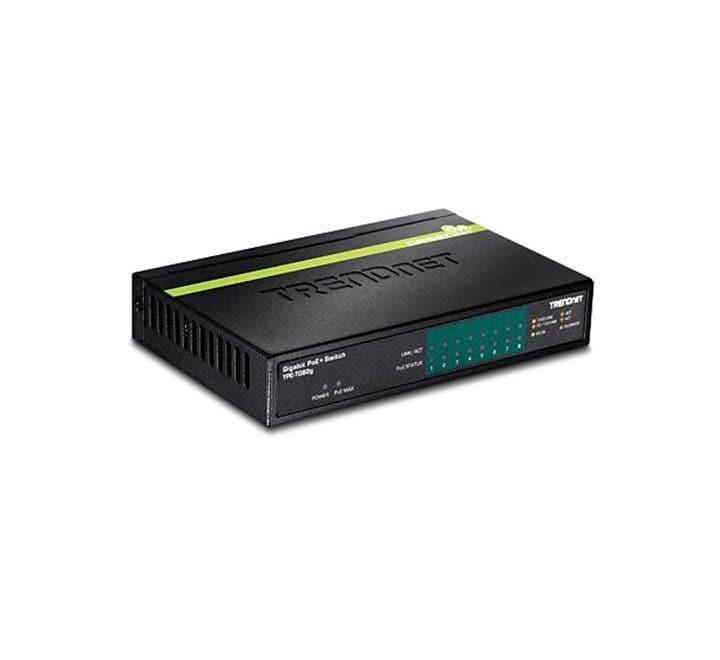

The TRENDnet TPE-TG82g is an 8-Port Gigabit PoE+ desktop switch engineered to deliver seamless high-speed data and electrical power over your existing network cabling. Outfitted with 8 Full Gigabit Power over Ethernet (PoE+) ports, this unmanaged plug-and-play switch offers an ideal solution for expanding edge networks while safely connecting demanding hardware like high-definition IP surveillance cameras, wireless access points, and VoIP phone systems.
Encased in a rugged, heavy-duty structural metal enclosure, the TPE-TG82g is designed for long-term desktop installation or quick deployment across diverse work environments. Its advanced fanless architecture ensures completely silent 0dB operation, making it perfect for quiet boardrooms, open office setups, and boutique retail storefronts where hardware noise is a distraction. Boasting a solid 16 Gbps switching capacity, this switch allows data to flow smoothly without network bottlenecks.
Key Features
- Full PoE+ Support: Delivers up to 30 Watts of dedicated power per single port to accommodate both legacy PoE (802.3af) and power-hungry PoE+ (802.3at) devices.
- 61W Power Budget: Robust 61-Watt total power allocation effortlessly supplies continuous electrical currents across up to eight connected terminal devices.
- 8 Gigabit Ports: Outfitted with 8 x 10/100/1000 Mbps Auto-MDIX RJ-45 ports to maximize full-duplex throughput rates up to 2000 Mbps per port.
- GREENnet Energy Efficiency: Integrated eco-smart networking technology reduces active power consumption during periods of low traffic load or standby cycles.
- Fanless Silent Chassis: Features an optimized passive heat dissipation layout that produces absolutely zero operating acoustic noise.
- Jumbo Frame Compatibility: Supports larger networking data packets or Jumbo Frames up to 9 KB, maximizing internal throughput and pipeline efficiency.
- Rugged Metal Housing: Encased in a compact, highly durable metal shell engineered to shield crucial processing assets over extended use.
Product Video Overview
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Device Interfaces | 8 x 10/100/1000 Mbps Auto-MDIX RJ-45 PoE/PoE+ Ports Front Diagnostic LED Indicators |
| Standards Compliance | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3az (GREENnet), IEEE 802.1p (CoS) |
| Switch Fabric Capacity | 16 Gbps non-blocking line rate forwarding |
| Performance Metrics | Data RAM Packet Buffer: 1.5 Mbits MAC Address Table: 4K entries Forwarding Rate: 11.9 Mpps (based on 64-byte packets) Jumbo Frames: Up to 9 KB |
| Power Adapter Specs | Input: External Switching Adapter 100 – 240V AC, 50/60 Hz, 1.2A Output: 54V DC, 1.67A external brick Max Base Consumption: 5.3 Watts (without connected PoE appliances) |
| PoE Allocation Details | Total PoE Budget: 61 Watts Pin Assignment: Mode A (Pins 1, 2, 3, and 6 for power link) |
| Acoustics & Enclosure | Chassis Material: Sturdy structural metal desktop housing Noise Level: 0 dB (Silent fanless operation) |
| Reliability & Metrics | MTBF: 612,220 Hours Topology: Star configuration with Store-and-Forward architecture |
| Dimensions & Weight | 150 x 95 x 30 mm (5.9 x 3.7 x 1.2 in.) 400 g (14 oz.) |
| Certifications | CE, FCC, RoHS, WEEE |
