Long-Range PoE+ Performance for Smart Surveillance Networks

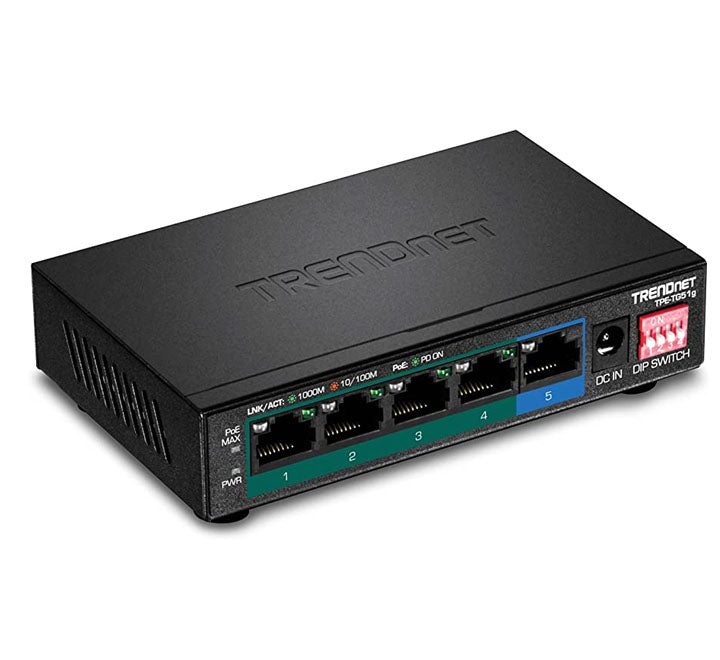

The TRENDnet TPE-TG51g 5-Port Gigabit Long-Range PoE+ Switch delivers reliable data and high-wattage power over standard Ethernet cabling directly to your PoE-reliant devices like IP cameras, access points, and VoIP hardware. Equipped with a total 60W power budget distributed across four high-speed Gigabit PoE+ ports, this unmanaged switch eliminates the need for nearby electrical outlets, maximizing deployment flexibility.

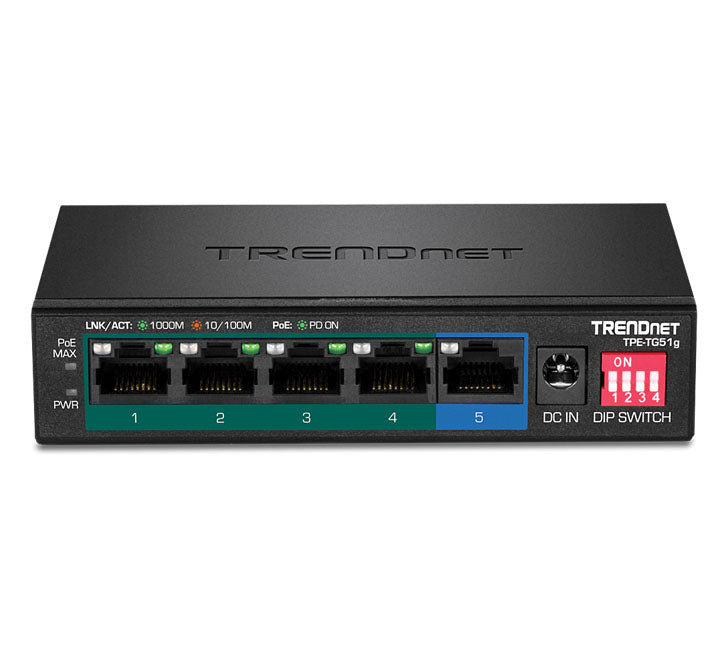

Engineered with advanced structural flexibility, the TPE-TG51g integrates a manual hardware DIP switch system on the chassis face. Toggling this allows you to extend your PoE+ and data transmissions up to an impressive 200m (656 ft.) at 10Mbps—perfect for long-distance surveillance line runs. Additionally, the DIP switch configuration supports instant port isolation (VLAN) and Quality of Service (QoS) optimizations to isolate network traffic and prioritize critical video feeds smoothly.
Key Product Features
- High-Speed Power Delivery: Features 4 x Gigabit PoE+ ports (802.3at/af) and 1 x Gigabit uplink port backed by a robust 60W total PoE power budget.
- 200m Long-Range Extension: Easily bypass the standard 100m limits by flipping the manual DIP switch to safely extend data and power up to 200m (656 ft.) at 10Mbps.
- Hardware Port Isolation (VLAN): Instantly isolate ports 1 through 4 via the physical toggle switch to protect camera streams from unauthorized cross-network access and suppress broadcast storms.
- Intelligent Hardware QoS: Built-in 802.1p Class of Service (CoS) traffic prioritization keeps bandwidth dedicated to live video streams, preventing dropped frames or voice delays.
- Silent Fanless Metal Shell: Encased in a compact, ruggedized metal housing designed with advanced passive ventilation, ensuring totally silent operation on desktops or walls.
- NDAA & TAA Compliant: Meets all stringent standards for government, military, and federal institution networking projects within the United States and Canada.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Device Interfaces | 4 x Gigabit PoE+ Ports, 1 x Gigabit Uplink Port, Multi-pin DIP Switch, LED Status Indicators |
| Networking Standards | IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3p (QoS), 802.3af (PoE), 802.3at (PoE+) |
| Performance Metrics | Switching Fabric: 10Gbps | Forwarding Rate: 7.44Mpps (64-byte package size) | RAM Buffer: 128KB |
| MAC Address & Frames | MAC Table Size: 2K entries | Jumbo Frame Support: Up to 9KB configurations |
| Power over Ethernet | Total Budget: 60 Watts | PoE Mode A: Pin 1, 2 for power (+) and Pin 3, 6 for power (-) |
| DIP Switch Functions | Switch 1 & 2: Extend PoE/Data to 200m at 10Mbps | Switch 3: Port Isolation (VLAN 1-4) | Switch 4: QoS Video Priority Mode |
| Power Supply Input | Input: 100 - 240V AC, 50/60Hz | Output: 54V DC, 1.3A external power adapter | Max Consumption: 64.3W |
| Chassis Material & Mount | Rugged metal construction, fanless design, integrated desk pads and wall mount slots |
| Dimensions & Weight | 121 x 75 x 26 mm (4.76 x 2.95 x 1 in.) | 246g (8.68 oz.) |
| Certifications & Warranty | CE, FCC, LVD, NDAA/TAA compliant | Backed by a TRENDnet Lifetime Protection Plan |
