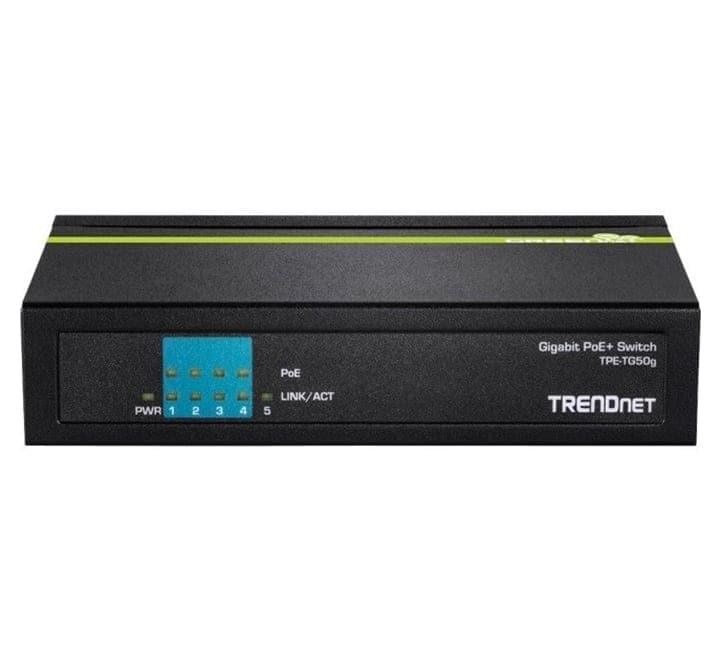

The TRENDnet TPE-TG50g is a high-performance 5-Port Gigabit PoE+ unmanaged switch engineered to expand your home or office network infrastructure smoothly. Outfitted with four dedicated Gigabit PoE+ ports and one standard Gigabit uplink port, this compact desktop unit delivers high-speed data transfer and robust electrical power over existing Ethernet cables to devices such as wireless access points, IP surveillance cameras, and VoIP telephony systems.
Featuring a 31W total PoE power budget, the TPE-TG50g supplies up to 30W of continuous power per port to downstream devices. Its fanless design offers completely silent operation—making it an ideal fit for desktops, conference rooms, or quiet workspaces—while the durable, rugged metal housing provides reliable protection for long-term deployment. With its hassle-free plug-and-play architecture, it requires no software configuration for immediate use.
Key Features
- Gigabit Networking Architecture: Outfitted with 4 x Gigabit PoE+ ports and 1 x Dedicated Gigabit uplink port to deliver full 10Gbps switching capacity.
- 31W Power over Ethernet Budget: Safely supplies up to 30W of PoE+ (802.3at) or PoE (802.3af) power per port to eliminate the need for localized AC outlets.
- Fanless Silent Operation: Built with a completely passive cooling layout that operates under 0dB of noise, making it perfect for sound-sensitive spaces.
- Rugged Metal Housing: Enclosed in a compact, durable, and wall-mountable heavy-duty metal chassis designed for long life cycles.
- Plug-and-Play Installation: Unmanaged structural layout eliminates complex network mapping or software setups—simply plug in your equipment.
- GREENnet Energy Efficiency: Integrated power-saving mechanics automatically decrease power consumption by up to 70% based on line activity and cable distance.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Device Interfaces | 4 x Gigabit PoE/PoE+ ports (10/100/1000Mbps) 1 x Gigabit port (10/100/1000Mbps) LED status indicators |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| PoE Capabilities | Total PoE Budget: 31W PoE Mode A: Pins 1, 2 for power (+) and Pins 3, 6 for power (-) |
| Switching Capacity | 10 Gbps line rate forwarding fabric |
| Performance Metrics | Data RAM Buffer: 96 KB MAC Address Table: 1K entries Forwarding Rate: 7.44 Mpps (64-byte packet size) Jumbo Frames: Up to 9 KB |
| Power Adapter Specs | Input: 110 – 240V AC, 50/60Hz, 0.75A Output: External 48V DC, 0.75A power adapter Max Consumption: 36W |
| Chassis Material & Noise | Chassis: Rugged metal housing Noise Level: 0 dB (Silent fanless operation) |
| Environmental Factors | Operating Temp: 0° to 40°C (32° to 104°F) Operating Humidity: Max 90% non-condensing |
| Dimensions & Weight | 141 x 95 x 30 mm (5.6 x 3.7 x 1.2 in.) 370 g (13 oz.) |
| Certifications | CE, FCC |
