High-Density, High-Wattage Gigabit PoE+ with Fiber Backhauls

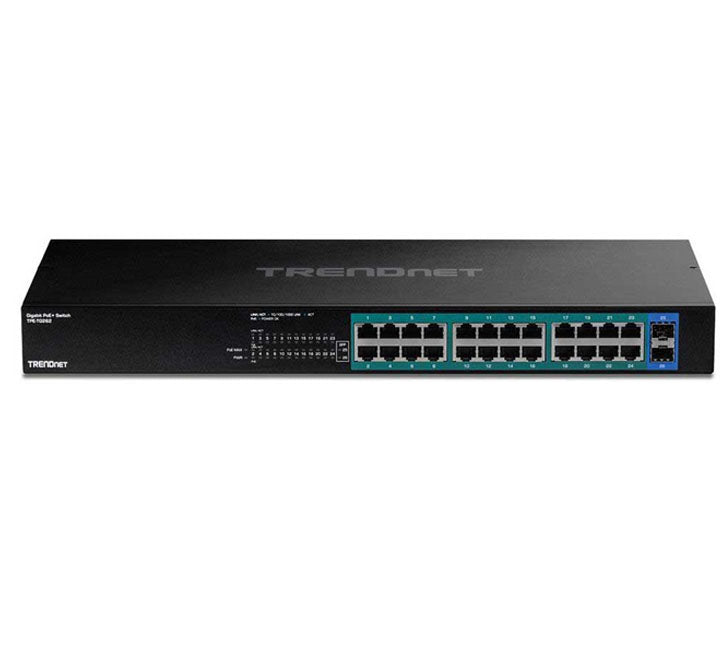

The TRENDnet TPE-TG262 26-Port Gigabit PoE+ Switch delivers reliable data and high-wattage power over standard Ethernet cabling to scale demanding surveillance and corporate infrastructure. Built as an unmanaged, true plug-and-play solution, this high-capacity rackmount hardware allows installers to slash deployment times and infrastructure costs by pushing up to 30W of crisp PoE+ power per port directly over Cat5e or Cat6 lines.
Equipped with an exceptional 380W total power budget, the TPE-TG262 effortlessly handles up to 24 Power-over-Ethernet endpoints simultaneously—making it an ideal backbone for heavy fleets of pan-tilt-zoom (PTZ) IP cameras, high-power wireless access points, and smart office systems. To overcome the traditional 100-meter limitation of copper lines, two dedicated Gigabit SFP slots provide seamless integration for ultra-fast, long-distance fiber-optic uplinks back to your core server room.
Key Product Features
- 24 x Gigabit PoE+ Ports: High-density deployment featuring 24 x 10/100/1000Mbps RJ-45 ports delivering up to 30W of dedicated IEEE 802.3at/af power per port.
- Dual Gigabit SFP Slots: Two dedicated fiber SFP expansion bays provide high-speed, long-distance uplink capabilities for multi-building layouts or backhaul trunks.
- Massive 380W PoE Budget: Ample operational headroom ensures a massive fleet of high-draw devices run smoothly under heavy, continuous processing loads without starving the lines.
- Plug-and-Play Simplicity: No network management knowledge or software configurations required. Fully operational right out of the box for a true "set-it-and-forget-it" backbone.
- 52Gbps Switching Capacity: High-performance, non-blocking wire-speed fabric architecture facilitates rapid data distribution to prevent choke points or traffic jams.

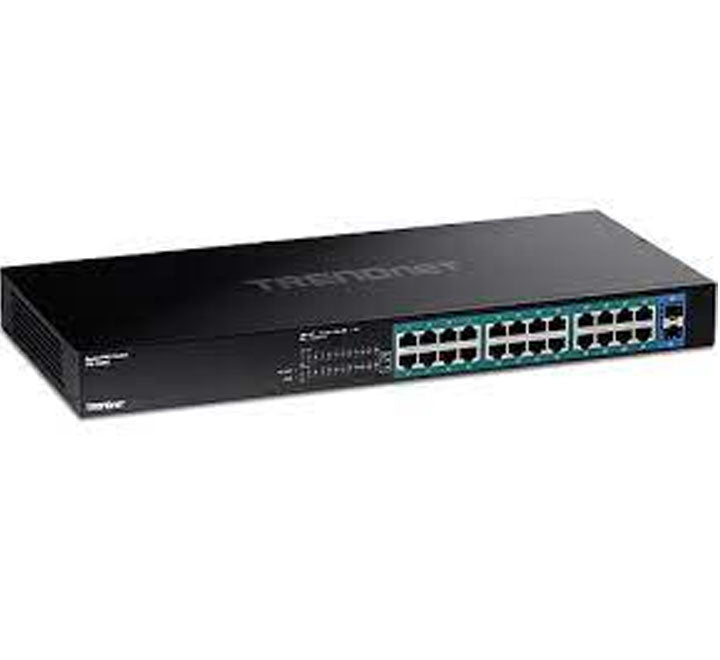

- Rugged 1U Rackmount Design: Housed in a heavy-duty standard 19-inch 1U metal enclosure with structural rack brackets included for clean installation in IT enclosures.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Device Interfaces | 24 x Gigabit PoE+ Ports, 2 x Gigabit SFP Slots, LED Status Diagnostic Indicators |
| Standards & Protocols | IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3af (PoE), 802.3at (PoE+) |
| Switch Fabric Capacity | 52Gbps full switching capacity (Forwarding rate: 38.69Mpps at 64-byte size) |
| Data Transfer Rate | Ethernet: 20Mbps | Fast Ethernet: 200Mbps | Gigabit & SFP: 2000Mbps (Full Duplex) |
| Buffers & Tables | Data RAM Buffer: 512KB | MAC Address Table: 8K entries | Jumbo Frames: 10KB |
| Power over Ethernet | Total Budget: 380 Watts | PoE Mode A (Pins 1, 2, 3, and 6) | Over-current & short-circuit protection |
| Power Consumption | Input: 100 – 240V AC, 50/60Hz internal power supply | Max operational: 32W (No dynamic loads connected) |
| Cooling System & Acoustics | Dual internal cooling fans for thermal stability | Max audible noise level profile: 30dB |
| Chassis Design | Durable metal, 1U 19-inch standard rack-mountable size configuration |
| Dimensions & Weight | 440 x 207 x 44mm (17.3 x 8.1 x 1.73 in.) | 3.1 kg (6.83 lbs.) |
| Package Contents | TPE-TG262 Switch, Quick Installation Guide, Rack Mount Ear Bracket Kit, AC Power Cord |
