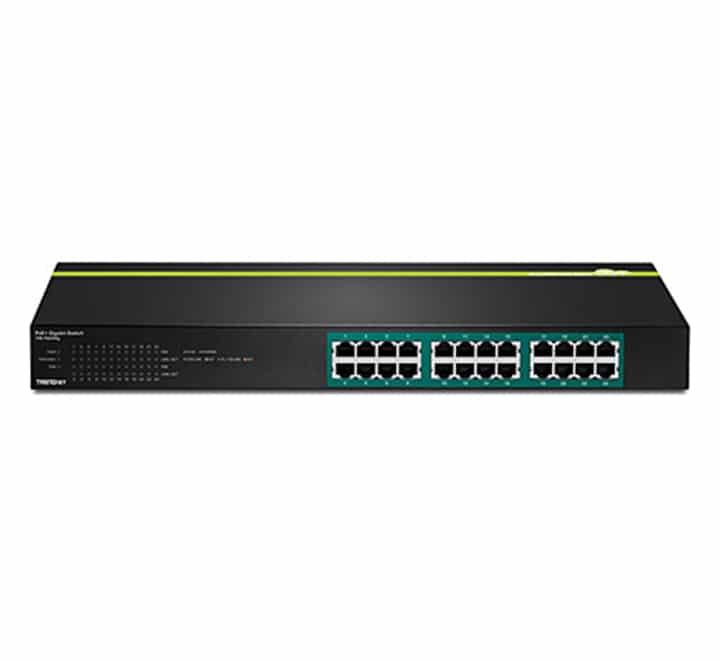

The TRENDnet TPE-TG240g is a high-density 24-Port Gigabit PoE+ unmanaged switch engineered to seamlessly expand your business network infrastructure. Outfitted with 24 Gigabit PoE+ ports, this high-performance rackmount switch delivers high-speed data transfer and robust power over existing Ethernet cables to resource-intensive devices such as high-definition IP cameras, wireless access points, and VoIP phone systems.
Featuring a substantial 370W total PoE power budget, the TPE-TG240g supplies up to 30W of continuous power per port to downstream devices. Its fanless design offers completely silent operation—making it a perfect fit for desktop use or quiet office environments—while the included 19-inch mounting brackets ensure flawless integration into standard server racks. With its hassle-free plug-and-play setup, there is no software or complex network mapping required for deployment.
Key Features
- Full Gigabit Connectivity: Equipped with 24 x Gigabit RJ-45 PoE+ ports delivering ultra-fast 10/100/1000Mbps switching speeds.
- 370W High PoE Budget: Easily allocates up to 30W of PoE+ (802.3at) power per port to handle a fully loaded array of network hardware.
- Fanless Silent Operation: Built with a completely passive thermal design to eliminate cooling fans, bringing noise levels down to a silent 0dB.
- Rugged Metal Rackmount Design: Housed in a heavy-duty, 1U 19-inch rack-mountable metal chassis built for long-term corporate durability (mounting brackets included).
- Plug-and-Play Efficiency: Auto-negotiation unmanaged layout detects speed and power constraints automatically, making complex software configurations a thing of the past.
- Eco-Friendly GREENnet: Features integrated power-saving tech that dynamically reduces energy consumption by up to 70% based on port status and cable lengths.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Device Interfaces | 24 x Gigabit PoE+ Ports (10/100/1000Mbps) LED diagnostic indicators Internal power supply plug |
| PoE Standards & Budget | IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) Total PoE Budget: 370W PoE Pin Allocation: Pins 1, 2 for power (+) and Pins 3, 6 for power (-) |
| Switching Capacity | 48 Gbps forwarding fabric line rate |
| RAM & Buffer Specs | Data RAM Buffer: 512 KB MAC Address Table: 8K entries Jumbo Frames: Up to 10 KB architectures |
| Power Consumption | Input: Internal 100 – 240V AC, 50/60Hz Max consumption (No PoE load): 12W Max consumption (Full PoE load): 382W |
| Chassis Design & Noise | Chassis Material: Heavy-duty metal housing Noise Level: 0 dB (Silent fanless operation) |
| Form Factor & Mounting | 1U 19-inch form factor Rackmount brackets and rubber feet included |
| Environmental Factors | Operating Temp: 0° to 40°C (32° to 104°F) Operating Humidity: Max 90% non-condensing |
| Dimensions & Weight | 440 x 210 x 44 mm (17.3 x 8.3 x 1.73 in.) 3.17 kg (7.0 lbs) |
| Certifications | CE, FCC, UKCA |
