Enterprise-Scale 440W High-Power PoE+ Network Splitting & Fiber Uplink Integration

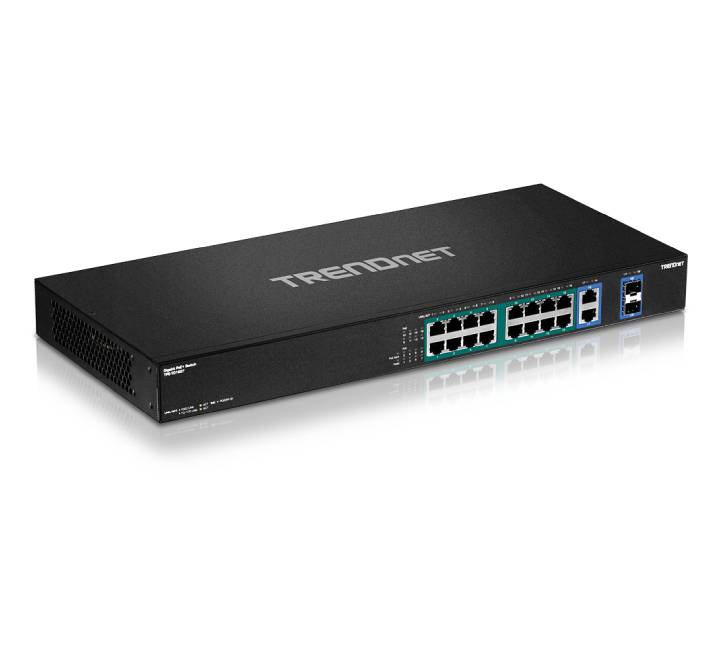

The TRENDnet 18-Port Gigabit High-Power PoE+ Switch with 2 Shared SFP Slots (TPE-TG182F) presents a high-density, high-capacity infrastructure distribution platform built to cut cabling logistics down to size. Engineered for commercial surveillance operations, enterprise edge layouts, and high-density office access networks, this unmanaged rack-mountable device pairs a vast pool of active Power over Ethernet injection points with premium high-speed fiber backhaul integration options.
The TPE-TG182F delivers a massive 440-Watt total PoE power budget across 16 dedicated Gigabit Ethernet ports, automatically driving up to 30W per port to cleanly support power-hungry hardware arrays such as pan-tilt-zoom (PTZ) IP security cameras, multi-channel VoIP networks, and advanced wireless access points. To handle system-wide data transit without bottlenecking, it includes 2 additional shared Gigabit combo ports matching standard copper RJ-45 jacks with open SFP expansion bays for flexible, long-distance single-mode or multi-mode fiber-optic uplinks.
Key Product Features
- 16-Port Dedicated Gigabit PoE+: Equipped with 16 x 10/100/1000 Mbps RJ-45 ports fully compliant with IEEE 802.3af (PoE) and 802.3at (PoE+) guidelines to deliver clean data and power concurrently.
- Massive 440W Power Budget: Massive 440W total system power budget ensures uncompromised power delivery to multiple high-load downstream network components without risk of brownouts.
- Shared SFP Fiber Uplinks: Features 2 x Shared Gigabit Combo Ports (RJ-45 copper or open SFP slots), providing high-speed optical trunk lines to secure core data links or edge remote locations.
- High-Speed 36Gbps Switch Fabric: Full wire-speed non-blocking switching layout handles heavy processing streams smoothly with rapid 26.78Mpps data forwarding execution metrics.

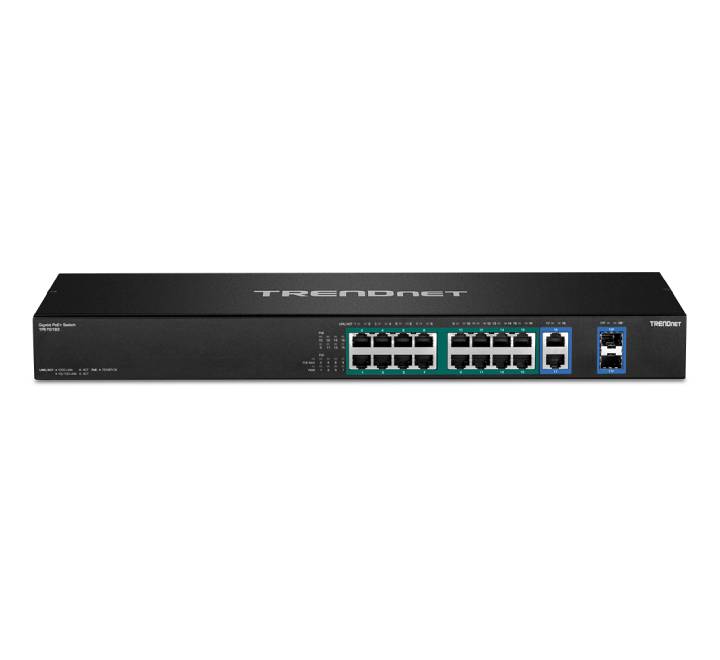

- Standard 1U 19-Inch Steel Shell: Encased in a rugged, full-sized rack-mountable metal chassis optimized for clean distribution inside standard networking enclosures (Includes 1U structural mounting brackets).
- Pure Plug-and-Play Architecture: Unmanaged Layer 2 operational profile allows rapid field integration with zero software setups, advanced scripting, or administrative command configurations.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Hardware Connectivity | 16 x Gigabit PoE/PoE+ Ports (RJ-45) | 2 x Shared Gigabit Combo Ports (RJ-45 or SFP) | Front diagnostic LED status display array |
| Network Standards | IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3af (PoE), 802.3at (PoE+), 802.1p CoS (Class of Service prioritization) |
| Switch Performance Matrix | 36Gbps switching fabric capacity bandwidth layout | Forwarding Rate: 26.78Mpps (based on standard 64-byte structural packet sizing) |
| PoE Configuration Profiles | Pin 1 & 2 for power+, Pin 3 & 6 for power- (Alternative Mode A architecture) | Integrated over-current and short-circuit protections |
| System Storage Array | 8K entries MAC address auto-learning lookup table | 9KB Jumbo Frame performance enhancement support |
| Power Delivery Requirements | 100 - 240 V AC, 50/60 Hz universal internal power supply receiver module | Maximum total consumption ceiling: 480W |
| Thermal Dissipation Design | Active smart cooling airflow system | Integrated heavy-duty ventilation fans built directly into steel enclosure frame |
| Environmental Limits | Operating Temperature parameters: 0° to 40° C (32° to 104° F) | Maximum operational humidity safety: 90% non-condensing |
| Chassis Footprint | Full standard 19-inch 1U rackmount footprint dimensions (440 x 196 x 44 mm / 17.4 x 7.7 x 1.7 in.) | Weight: 3.0 kg (6.6 lbs) |
| Regulatory Approvals | CE, FCC, ETL, LVD certified | TAA + NDAA compliant profile configurations | TRENDnet Manufacturer Limited Lifetime Protection |
