High-Power, High-Density Gigabit PoE+ with Fiber Uplinks

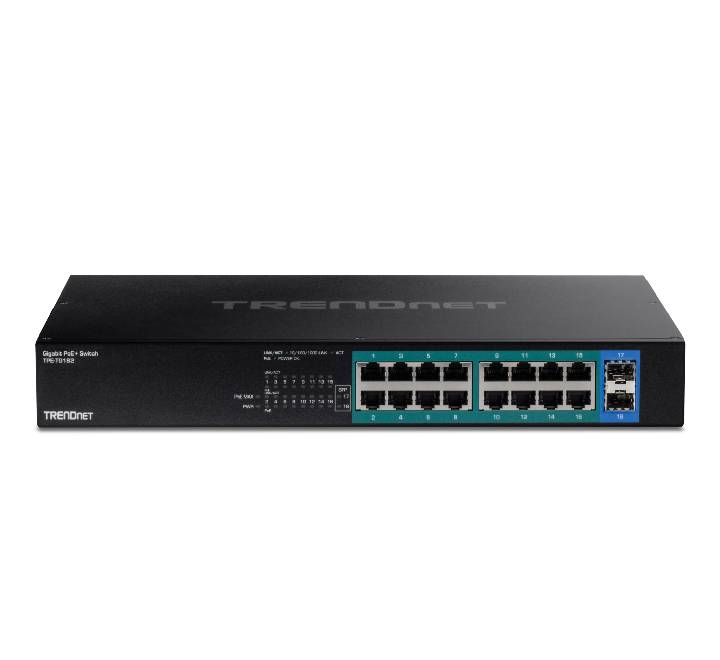

The TRENDnet TPE-TG182 18-Port Gigabit PoE+ Switch delivers high-bandwidth performance, installation simplicity, and network reliability for demanding commercial applications. Engineered as a high-capacity, unmanaged solution, it allows installers to drop down infrastructure costs and slash installation time by pushing up to 30W of crisp PoE+ power and high-speed data over standard Cat5e or Cat6 cabling.
Equipped with a hefty 240W total power budget, the TPE-TG182 effortlessly handles up to 16 Power-over-Ethernet endpoints—making it the ideal backbone for PTZ IP cameras, high-power wireless access points, VoIP systems, and access control terminals. For long-distance connections, the switch features two dedicated Gigabit SFP slots to integrate seamless, fiber-optic uplinks back to your core server room.
Key Product Features
- 16 x Gigabit PoE+ Ports: Delivers up to 30W of dedicated IEEE 802.3at/af power per port to run smart network devices without local power drops.
- Dual Gigabit SFP Slots: Two dedicated fiber SFP expansion bays provide high-speed, long-distance uplink capabilities for remote buildings or backhaul trunks.
- 240W Total PoE Power Budget: Massive operational headroom ensures multiple high-draw devices run smoothly under heavy, continuous processing loads.
- 36Gbps Switching Capacity: High-performance, non-blocking fabric architecture architecture facilitates wire-speed data distribution to prevent choke points.
- 1U Rack-Mountable Design: Housed in a heavy-duty, standard 19-inch 1U metal enclosure with structural rack brackets included for clean installation in IT enclosures.
- Robust Safety Protocols: Built-in dynamic integrated over-current, short-circuit, and loop protection loops safeguard your connected enterprise hardware investments.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Device Interfaces | 16 x Gigabit PoE+ ports, 2 x Gigabit SFP slots, LED status diagnostic indicators |
| Standards & Protocols | IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3af (PoE), 802.3at (PoE+) |
| Switch Fabric Capacity | 36Gbps full switching capacity (Forwarding rate: 23.8Mpps at 64-byte size) |
| Data Transfer Rate | Ethernet: 20Mbps | Fast Ethernet: 200Mbps | Gigabit & SFP: 2000Mbps (Full Duplex) |
| RAM Buffer & Tables | Data RAM Buffer: 512KB | MAC Address Table: 8K entries | Jumbo Frames: 10KB |
| Power over Ethernet Budget | 240 Watts total budget | PoE Mode A (Pins 1, 2, 3, and 6) | Short-circuit protection |
| Power Consumption | Input: 100 – 240V AC, 50/60Hz internal power supply | Max operational: 40W (No PD connected) |
| Cooling System & Acoustics | 1 x Internal Cooling Fan | Max audible noise level profile: 26dB |
| Chassis Design | Durable metal, 1U 19-inch standard rack-mountable structure sizing |
| Dimensions & Weight | 324 x 230 x 44mm (12.75 x 9 x 1.8 in.) | 2.5 kg (5.68 lbs.) |
| Package Contents | TPE-TG182 Switch, Quick Installation Guide, Rack Mount Ear Bracket Kit, 1.5m AC Power Cord |
