High-Efficiency Gigabit Extension and Power Amplification for Long-Range PoE Networks
The TRENDnet Gigabit PoE+ Extender / Amplifier (TPE-E110) provides an intelligent, commercial-grade infrastructure solution designed to effortlessly expand network nodes past the standard 100-meter (328-foot) structural limitations of traditional copper Ethernet wiring. Ideal for multi-node IP security systems, remote high-power wireless access arrays, and expansive facility edge hardware deployments, this flexible line-booster ensures high-speed gigabit data and power travel further without packet loss or signal degradation.

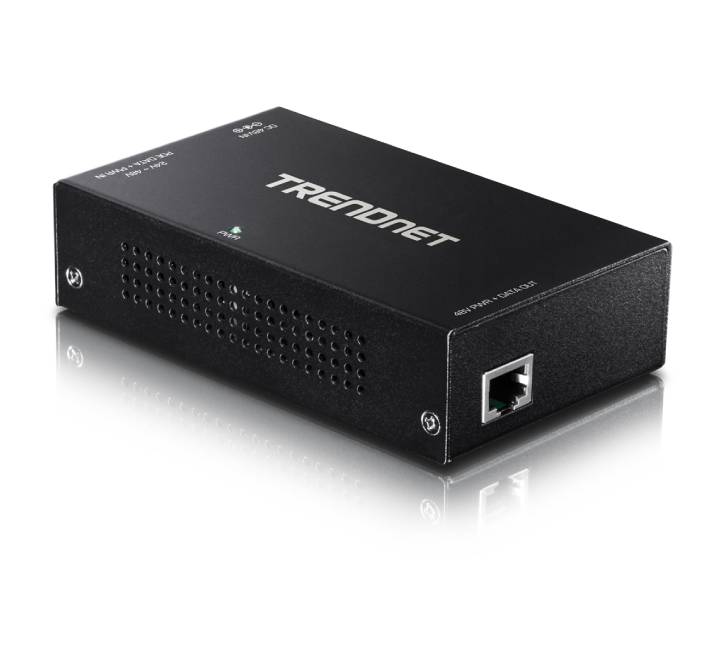

Housed in a ruggedized, wall-mountable metal protective enclosure, the TPE-E110 operates as a highly versatile network asset. It can run purely on standard inline PoE power extracted from your primary upstream equipment, or it can be supplemented via its auxiliary power port for targeted voltage reinforcement on long runs. By auto-sensing downstream device profiles, it seamlessly amplifies and passes through standard PoE (15.4W) or high-capacity PoE+ (30W) loads while supporting extensive multi-unit cascading to span large coverage areas.
Key Product Features
- Continuous 100-Meter Signal Regeneration: Extends an incoming network drop an additional 100 meters (328 feet) for an immediate double-distance deployment radius.
- Scalable Multi-Unit Cascading: Supports daisy-chaining multiple inline extenders in series to safely scale out local infrastructure boundaries across multi-hundred-meter coverage tracks.

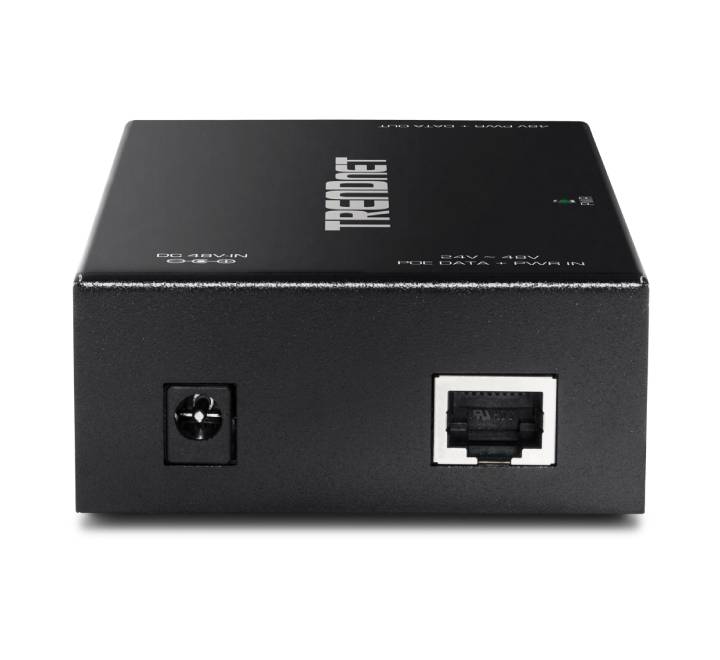

- Dual-Mode Power Flexibility: Runs natively via power-over-ethernet line currents or accepts an optional auxiliary external power supply injection to boost downstream power budgets.
- Intelligent Auto-Sensing Delivery: Built-in internal processing circuitry detects and outputs the exact required wattage parameters for IEEE 802.3af (15.4W) or 802.3at (30W) target hardware.
- Wire-Speed Non-Blocking Throughput: Built with dedicated full-duplex Gigabit ports to handle intense network loads, such as high-definition PTZ camera streams, with zero latency.

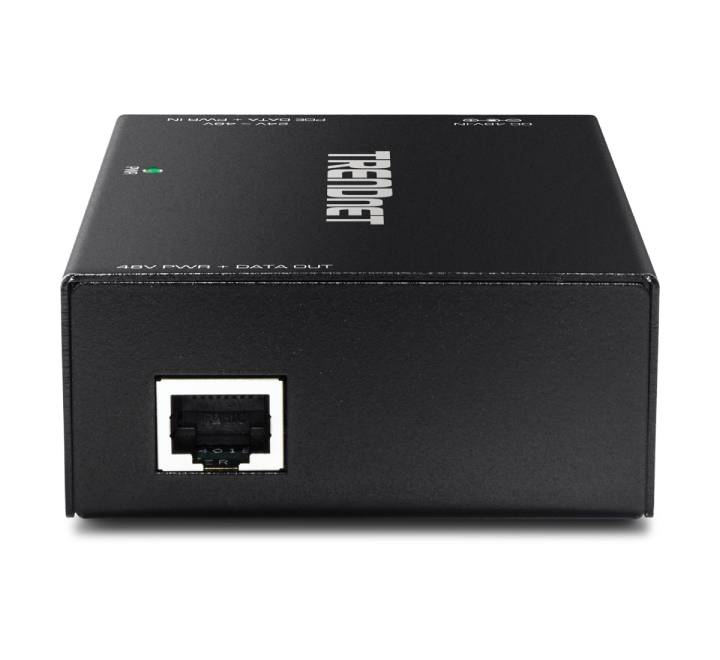

- Industrial-Grade Steel Housing: Encased in a durable metal chassis featuring pre-drilled surface-mounting flanges for quick, highly stable installations on backboards, walls, or enclosures.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Network Interfaces | 1 x 10/100/1000 Mbps PoE/PoE+ Input Port | 1 x 10/100/1000 Mbps PoE/PoE+ Output Port | 1 x Auxiliary external DC power port point |
| Network Standards | IEEE 802.3, 802.3u, 802.3x full-duplex control, 802.3ab Gigabit, 802.3az Energy Efficient Ethernet logic compliance |
| PoE Compatibility Matrix | IEEE 802.3af Power-over-Ethernet (15.4W max footprint) | IEEE 802.3at PoE+ High-Power (30W max footprint) backward mapping |
| Data Routing Rates | Ethernet: 10/20 Mbps | Fast Ethernet: 100/200 Mbps | Gigabit Ethernet: 2000 Mbps (Full Duplex wire-speed routing performance) |
| Hardware Buffers | Integrated high-speed packet data RAM cache | MAC address auto-learning lookup array table | Jumbo Frame support parameters |
| Pin Allocation Map | Alternative Mode A connection architecture standard: Pins 1 & 2 (Power+) | Pins 3 & 6 (Power-) |
| Device Power Draw | Ultra-low baseline system consumption (All remaining incoming line currents pass directly through to feed downstream powered hardware) |
| Status Indicator Array | Diagnostic LED cluster panel mapping active Link/Activity metrics and verifying active power delivery across the link segment |
| Environmental Tolerance | Operating Temperature window: 0° to 40° C (32° to 104° F) | Maximum storage relative humidity limit: 90% non-condensing |
| Compliance & Cover | CE, FCC compliant layout | TAA and NDAA validation protocols | TRENDnet 3-Year Limited Manufacturer Protection Program |
