High-Performance Web Smart Edge Switching for Multi-Node PoE Deployments

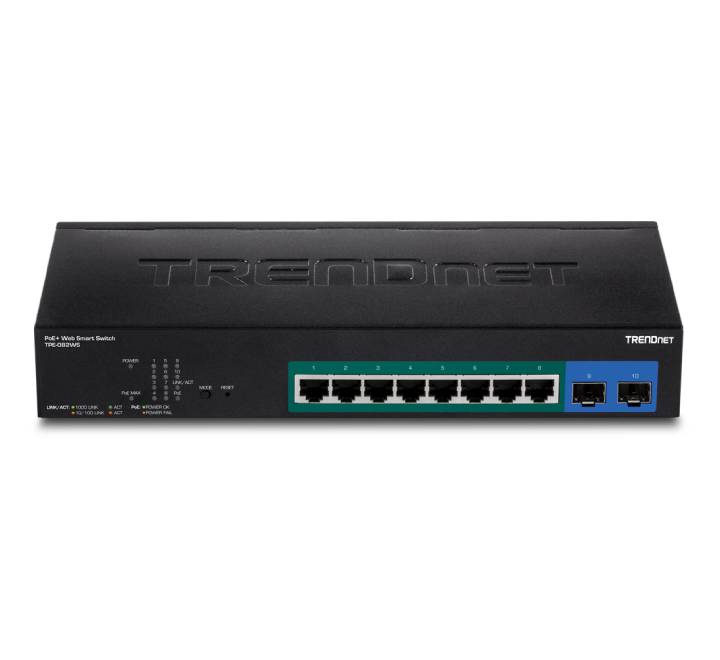

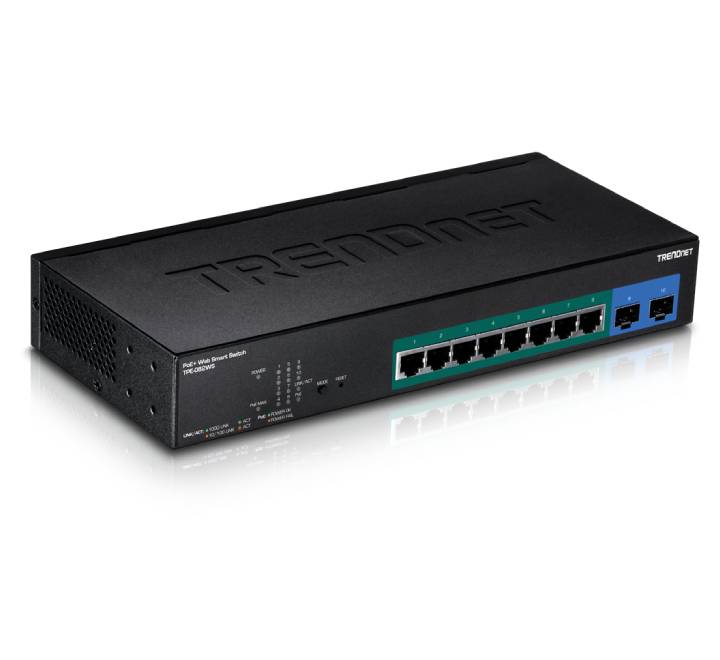

The TRENDnet 10-Port Gigabit Web Smart PoE+ Switch (TPE-082WS) delivers an advanced, cost-effective aggregation solution designed to give network administrators comprehensive edge-device control. Featuring 8 dedicated Gigabit PoE+ ports alongside 2 discrete Gigabit SFP slots for long-range fiber backhaul link scaling, this flexible, unmanaged-complexity smart switch provides the necessary processing headroom and bandwidth control needed to support high-density IP surveillance setups, enterprise wireless access configurations, and VoIP networks.
Housed in a ruggedized, 1U rack-mountable metal chassis, the TPE-082WS balances high-capacity deployment features with an energy-efficient, completely fanless design that provides silent operation on desktops or within server racks. Outfitted with an intuitive web-based interface tool framework, it supports a wide suite of advanced layer 2 management protocols—including complex traffic segmentation, automated network health safeguards, and deep diagnostic toolsets—to guarantee optimal data pipeline continuity.
Key Product Features
- High-Power PoE+ Architecture: Outfitted with 8 x Gigabit PoE+ ports complying with IEEE 802.3at parameters, providing up to 30W of power per port across a total 75W allocation budget.
- Fiber-Optic Uplink Integration: Features 2 dedicated Gigabit SFP slots to facilitate high-speed fiber backhaul connections, ensuring remote site links run free from electrical interference.
- Intelligent Web Smart Management: Offers an accessible browser-driven management dashboard to configure and monitor deep SMB network configurations without commanding a steep command-line learning curve.
- Granular Traffic Optimization: Supports advanced traffic prioritization rules including 802.1Q tagged VLAN arrays, Asymmetric/Voice VLAN protocols, LACP link aggregation, and IGMP Snooping management.
- Proactive Security Layering: Protects your local core via Access Control Lists (ACLs), advanced port/MAC filtering matrices, 802.1X authorization rules, and RADIUS/TACACS+ server handshakes.
- Fanless Reliability Footprint: Uses a specialized passive cooling metal design to completely eliminate physical fan moving parts, vastly extending system operational lifespans.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Physical Interfaces | 8 x Gigabit PoE+ Ports (RJ-45 Auto-MDIX) | 2 x 1000Mbps SFP slots | Integrated physical ground point loop link |
| Switching Capacity | 20Gbps full non-blocking internal forwarding fabric | 14.9Mpps wire-speed hardware packet routing index |
| Core Network Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x Flow Control, 802.3az Energy Efficient Ethernet compliance logic |
| Spanning Tree Engine | IEEE 802.1D STP topology protection | IEEE 802.1w RSTP mesh recovery | IEEE 802.1s MSTP multi-instance routing map |
| System Cache & Lookup | High-capacity internal packet RAM buffer configuration | 8K entries MAC address table array | 10KB Jumbo Frame support |
| Device Management Options | HTTP / HTTPS (SSL v2/3 TLS) local web client | SNMP v1, v2c, v3 agent tracking | RMON v1 monitoring array compliance |
| Network Diagnostics | Virtual Cable Diagnostic Testing framework | Loopback Detection | Real-time port transmission traffic summary tracking |
| Power Input & Ceilings | Universal internal power module input: 100 - 240V AC, 50/60 Hz | Maximum device electricity system draw: 82 Watts |
| Chassis Dimensions | 280 x 125.8 x 44 mm (11 x 5 x 1.74 inches) | 1U height specification layout profile | Complete rack mounting ear panels included |
| Regulatory Standards | CE compliant | FCC certified framework assembly | TRENDnet Limited Lifetime Manufacturer Protection Cover |
