The Centralized Media and Backup Hub for Your Smart Home Network
The TRENDnet 2-Bay NAS Media Server Enclosure (TN-200) acts as the high-speed storage and entertainment center for today's connected homes and small offices. Engineered to store, catalog, and secure all your vital data assets in one central hardware repository, this unmanaged-simplicity network enclosure enables simultaneous media delivery across multiple household devices—including smart TVs, streaming sticks, gaming systems, and mobile devices—without bogged-down system lag or buffering delays.

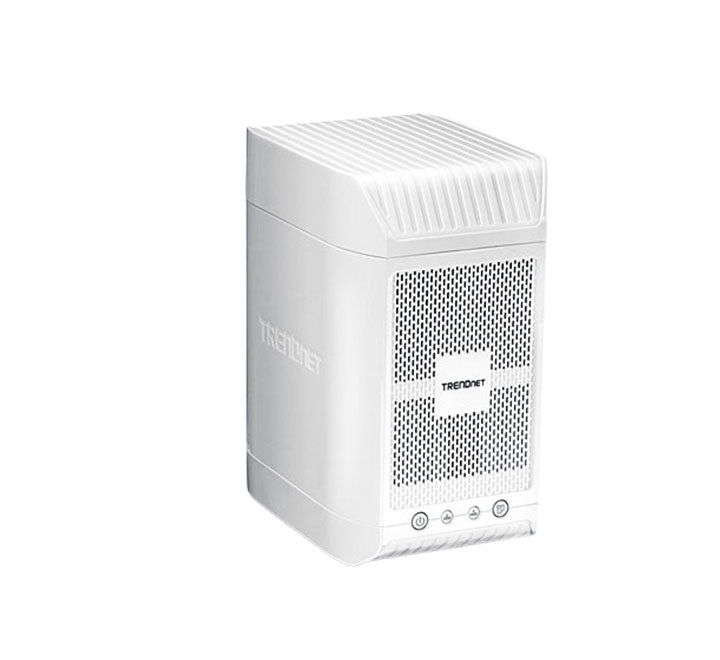

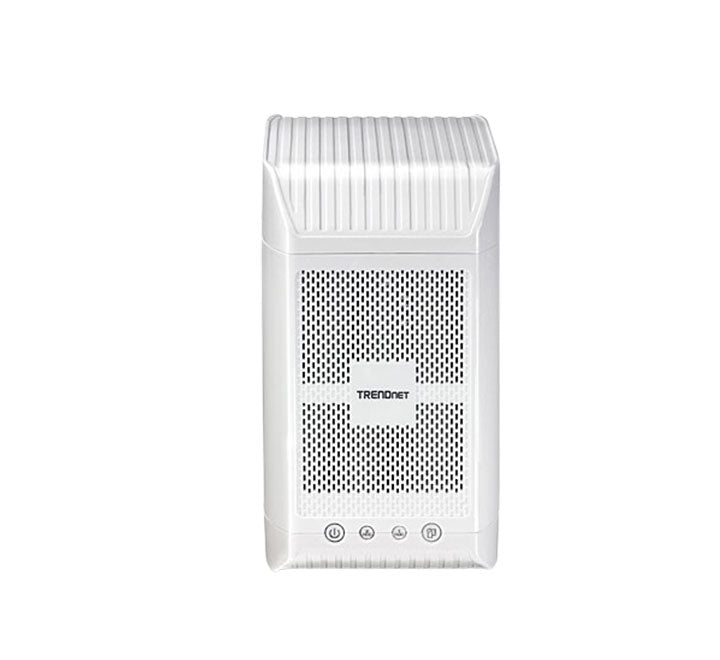

Encased in a compact, sleek desktop tower layout featuring a convenient slide-off service panel for vertical hard drive loading, the TN-200 accepts two standard 3.5" SATA hard drives to meet your growing raw storage demands. Outfitted with an intuitive web browser setup interface, the platform offers powerful, consumer-accessible file protection tools including automated multi-source computer backup scheduling, custom user storage space quotas, and hardware-level mirror redundancy to safeguard your personal memories and project work.
Key Product Features
- DLNA 1.5 Certified Media Server: Automatically indexes and streams high-definition videos, audio files, and digital photos straight to compatible TVs and media boxes.
- Dual-Bay Expandable Vault: Accommodates up to two 3.5" SATA I/II hard drives to comfortably scale out localized storage capacities (Hard drives sold separately).
- Hardware-Level RAID Fail-Safes: Supports customized configurations including RAID 1 mirroring for total real-time data protection, RAID 0 for high-speed striping, or JBOD combining.
- Integrated iTunes Media Server: Effortlessly distributes massive shared audio and video libraries across all local network media software instances.
- Pure Wire-Speed Gigabit LAN Port: Features a full 10/100/1000 Mbps Auto-MDIX network client port to maintain swift data transfers between computers and storage arrays.
- Automated Backup and Download Centers: Manages autonomous file tasks without keeping a computer running, backing up directly to the Amazon S3 cloud, remote FTP links, or Apple Time Machine.
- Smart Eco-Saving Power Control: Built-in intelligent thermal cooling adjusts fan speeds automatically, handles drive hibernation scripts, and executes custom weekly power schedules.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Network Connection | 1 x 10/100/1000 Mbps Auto-MDIX Gigabit RJ-45 LAN port point |
| Storage Interfaces | 2 x 3.5-inch internal SATA I/II hard drive bays | 1 x external USB 2.0 expansion share storage port |
| Drive Array Storage | Single independent volume mapping | RAID 0 high-performance data striping | RAID 1 real-time drive mirror backup | JBOD spanning |
| Internal Processing Core | High-efficiency embedded Linux operating platform configuration engine framework |
| Network File Access | SMB / CIFS (Windows file sharing) | AFP (Apple file sharing / Time Machine) | NFS (Linux file sharing) | HTTP / HTTPS web client access |
| Network Service Stack | DHCP Client | FTP over explicit SSL/TLS server | Secure SMTP alert client | DDNS client engine | UPnP AV / DLNA 1.5 | Bonjour protocol framework |
| Account Permissions | Supports up to 256 individual user accounts | 32 custom user grouping blocks | 128 maximum shared directory folders | Granular disk quota allocations |
| Drive Health Diagnostics | Real-time S.M.A.R.T. disk attribute status monitoring | Automated internal surface sector scanning | Native EXT4 internal file alignment conversion |
| Power Profile Values | External adapter supply — Input: 100-240V AC, 50/60 Hz | Output: 12V DC, 3A | System operational max ceiling draw: 26 Watts |

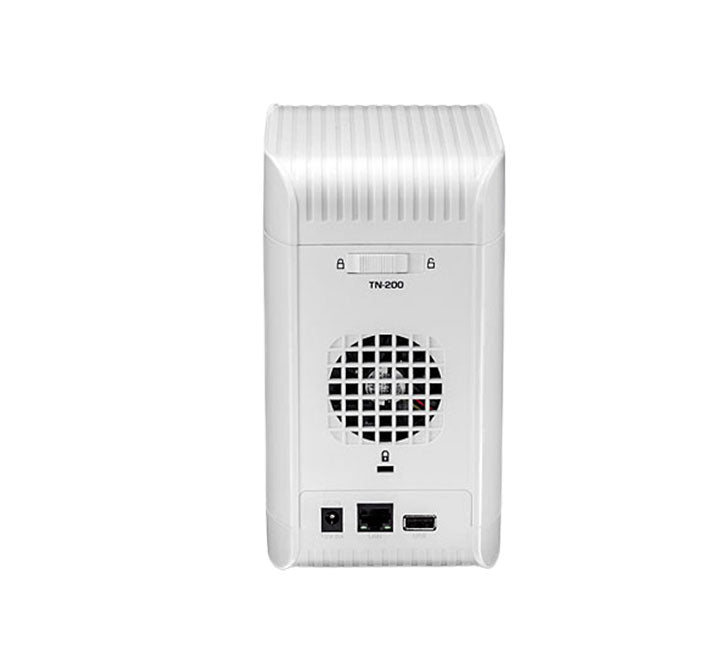

| Chassis Footprint | 152 x 105 x 185 mm (6 x 4 x 7.2 inches) | Weight: 0.65 kg (1.4 lbs) | Front-facing multi-status LED indicators (Power, USB status, HDD 1/2 activity) |
