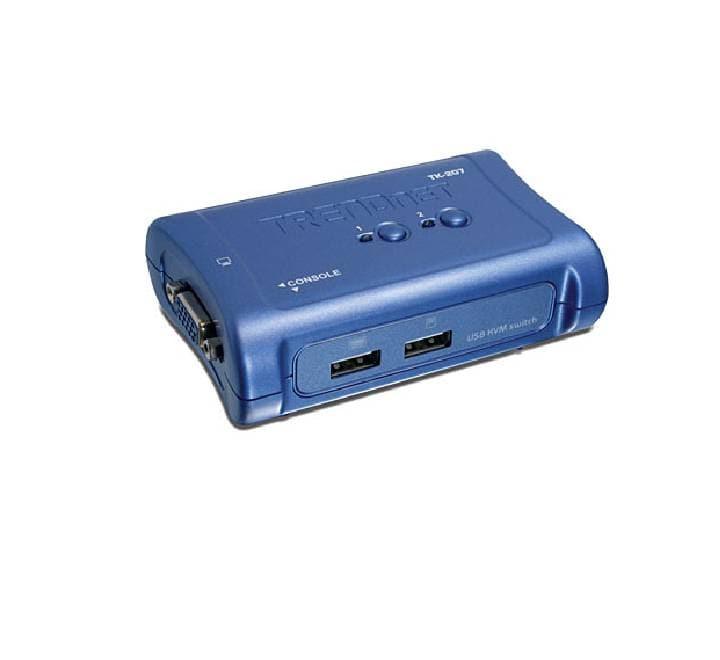

The TRENDnet TK-207K is a compact and highly reliable 2-Port USB KVM Switch Kit designed to let you manage two computers or laptops using just a single keyboard, monitor, and mouse. By consolidating your workstation controls, this plug-and-play hardware kit instantly clears desktop cable clutter, saves valuable workspace real estate, and eliminates the extra costs associated with running dual peripheral setups.
Perfect for home offices, remote development setups, and tech testing benches, the TK-207K comes completely bundled with two sets of dedicated KVM combination cables so you can deploy your system right out of the box. Operating entirely on standard host USB bus power, it requires zero external power supplies or software drivers. Toggling between your two connected computers is seamless and instantaneous, utilizing either the built-in manual front push button or convenient keyboard hotkey commands.
Key Features
- 2-Way Desktop Consolidation: Control two PC or Mac computers from one centralized USB keyboard, USB mouse, and analog VGA monitor console.

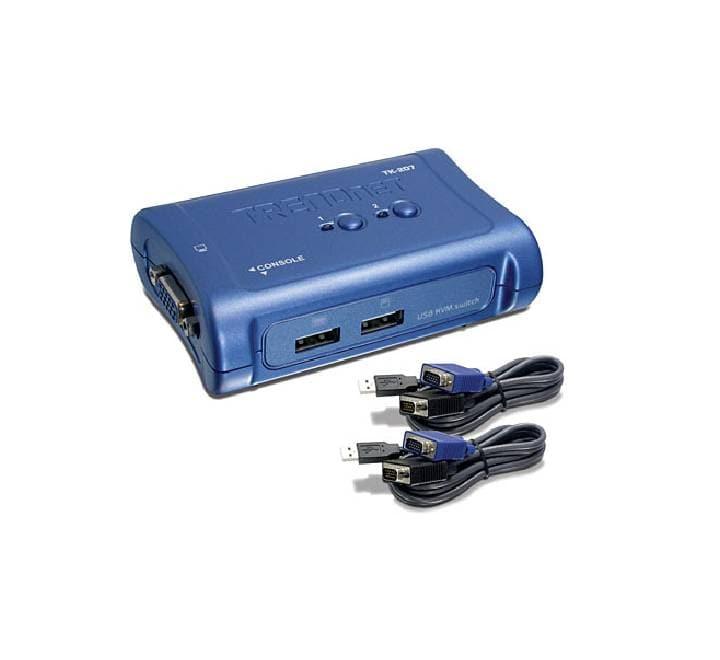

- KVM Cables Included: Complete retail kit includes two sets of high-grade 1.2m (4ft.) USB/VGA multi-core KVM combo cables for a clean, out-of-the-box installation.
- Dual-Switching Methods: Switch fluidly between active computer connections using the tactile front-panel manual push button or quick keyboard hotkey triggers.
- High-Definition Video: Supports high-fidelity analog display configurations with crisp VGA video resolutions up to 2048 x 1536 for clear, sharp image rendering.
- Automated Auto-Scan Mode: Built-in diagnostic scan feature systematically monitors and cycles between active computing terminals at fixed 10-second intervals.
- No External Power Needed: Runs fully on host USB bus power structures, reducing cable congestion by completely eliminating bulky external AC wall adapters.
- Hot-Pluggable Architecture: Add, swap, or disconnect target computers on the fly without needing to power down the KVM switch or compromise active workflows.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Console Connectors | 1 x VGA (15-pin Female D-Sub) 2 x USB Type-A (Keyboard & Mouse Peripheral Interfaces) |
| Computer Link Ports | 2 x VGA (15-pin Female D-Sub custom combo ports) |
| Included Cable Sets | 2 x KVM Combination Cables (Length: 1.2m / 4 ft.) |
| Video Performance | Max resolution up to 2048 x 1536 @ 60Hz architectures |
| Port Toggle Logic | Front-Panel Push Button Keyboard Hotkey Commands |
| Power Management | Power Type: USB Bus Powered (No external wall transformer required) Max Consumption: 500mA limit |
| Chassis & Indicators | Material: Durable structural composite plastic casing LEDs: 2 x Port Status Indicators (Green/Red terminal links) |
| Operating Environment | Operating Temp: 0° to 40°C (32° to 104°F) Storage Temp: -20° to 60°C (-4° to 140°F) Humidity: Max 90% non-condensing tracking |
| Dimensions & Weight | 98 x 70 x 28 mm (3.8 x 2.75 x 1.1 in.) 99 g (3.5 oz.) |
| Compliance & Certs | CE, FCC |
