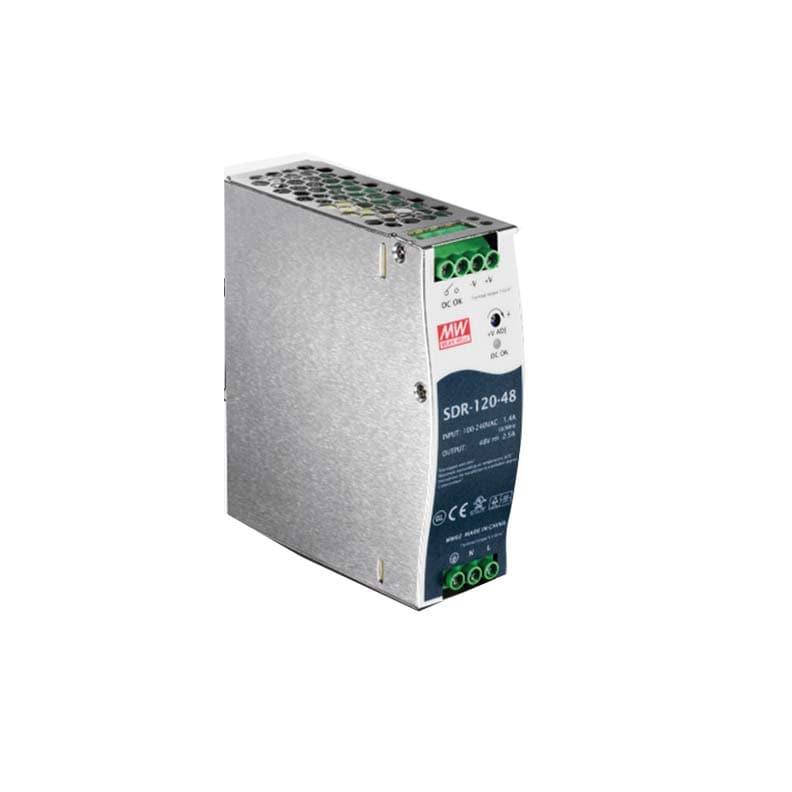

The TRENDnet TI-S12048 is a high-efficiency AC-to-DC industrial DIN-rail power supply with built-in Active Power Factor Correction (PFC) designed to optimize performance for mission-critical network deployments. Engineered specifically for high-draw environments, the upgraded V2 architecture supplies up to 150W of continuous power (48V–56V DC, 3.12A) to high-power industrial Power over Ethernet (PoE) equipment, including managed switches, multi-gigabit injectors, and heavy-duty outdoor PTZ surveillance cameras.
Enclosed in a rugged, IP30-rated metal housing with an integrated TS-35 DIN-rail mounting clip, the TI-S12048 is designed for rapid installation inside standard automation panels and traffic enclosure cabinets. It features a fanless, passive cooling design and an intelligent multi-layered safety matrix that includes automated recovery from short circuits, overloads, and extreme thermal spikes, ensuring flawless 24/7 infrastructure stability.
Key Features
- Upgraded 150W High Output: Delivers clean, continuous power (48V to 56V adjustable output range, 3.12A) optimized perfectly for high-budget PoE+ and PoE++ applications.
- Active Power Factor Correction (PFC): Integrated active controller increases power supply efficiency and eliminates reactive power loss to stabilize line currents.
- Harsh Weather Endurance: Engineered with silent, fanless natural convection cooling to operate seamlessly under extreme temperatures ranging from -25° to 70°C (-13° to 158°F).
- 150% Peak Load Headroom: Advanced power engineering handles startup inrush currents and dynamic peak demands safely without tripping systems.
- Smart DC OK Diagnostic Relay: Features built-in hardware relay dry contacts to continuously report hardware line health and instantly signal backend alert infrastructure if power drops.
- Advanced Failure Protection: Comprehensive self-recovery protection systems safeguard your network against unexpected short circuits, overloads, over-voltage spikes, and over-temperature occurrences.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Input Specifications | AC Input: 90 – 264V AC, 47 – 63Hz, 2.5A DC Input: 127 – 370V DC |
| Output Capacity | Power: 150W continuous max power Voltage: 48 – 56V adjustable output range Current: 0 – 3.12A max continuous load |
| Interface & Layout | Heavy-duty removable screw-terminal block slots Power status green LED indicator Integrated TS-35/7.5 or TS-35/15 DIN-rail mounting tracks |
| Power Performance | Active Power Factor Correction (PFC) Peak Load: 150% peak overhead capacity Cooling: Passive free-air convection (completely fanless) |
| Protection Metrics | Short Circuit protection (Auto-recovery mode) Over Power / Over Current protection Over Voltage protection Over Temperature automatic protection shutdown |
| Diagnostic Contacts | Built-in "DC OK" dry relay diagnostic contacts |
| Housing & Environment | IP30-rated industrial-grade metal enclosure Operating Temp: -25° to 70°C (-13° to 158°F) Operating Humidity: Max 95% non-condensing |
| Dimensions & Weight | 40.5 x 125 x 103.3 mm (1.6 x 4.9 x 4.0 in.) 556 g (1.22 lbs) |
| Compliance & Testing | CE, FCC, LVD, UL 62368-1 approved safety listings, CB IEC 62368-1 Built with 100% full-load burn-in factory testing cycles |
