Rugged Hardened 240W High-Power PoE+ Integration for Demanding Field Deployments

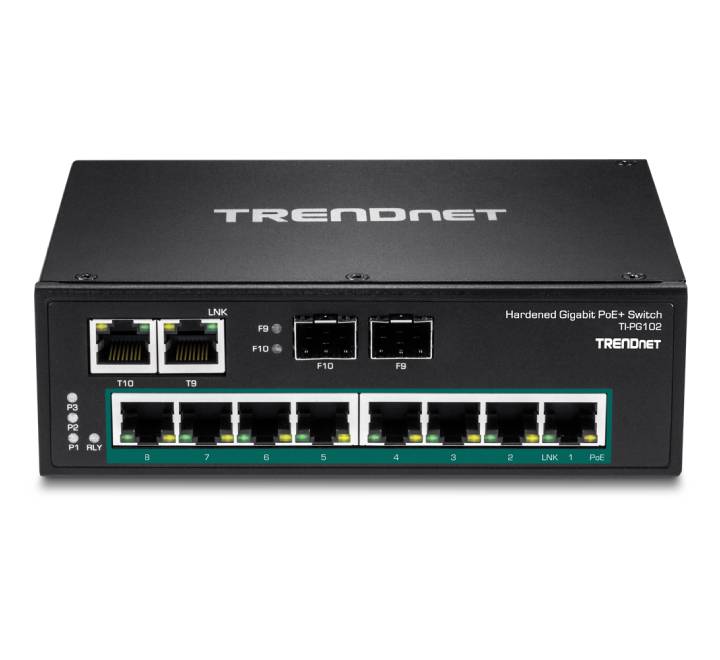

The TRENDnet 10-Port Industrial Gigabit PoE+ DIN-Rail Switch (TI-PG102) delivers rock-solid, high-capacity power injection and network aggregation in extreme physical environments. Tailored for heavy industry, outdoor surveillance networks, and automation environments, this hardened unmanaged switch features 8 dedicated Gigabit PoE+ ports alongside 2 shared Gigabit RJ-45 / SFP combo slots for versatile high-bandwidth backhaul links.
Built with an IP30-rated heavy-duty metal enclosure, the TI-PG102 is specialized to withstand severe mechanical impacts, high levels of vibration, and extreme temperature spreads ranging from -40° to 75°C (-40° to 167°F). It supports a robust 240-Watt total PoE power budget to smoothly handle intensive multi-camera or wireless access point arrays, powered by dual-redundant terminal block connections equipped with a proactive fault-trigger alarm relay.
Key Product Features
- High-Power PoE+ Delivery: Outfitted with 8 x Gigabit PoE+ ports compliant with IEEE 802.3at parameters, providing up to 30W of power per port across a massive 240W total system power budget.
- Shared SFP/RJ-45 Combo Uplinks: Features 2 x Gigabit Ethernet ports layered with 2 x shared SFP open slots, facilitating seamless long-distance multi-mode or single-mode fiber-optic backhauls.
- Heavy-Duty Industrial Hardening: Engineered to shrug off extreme environmental hazards, operating continuously within severe thermal ranges (-40° to 75°C / -40° to 167°F).

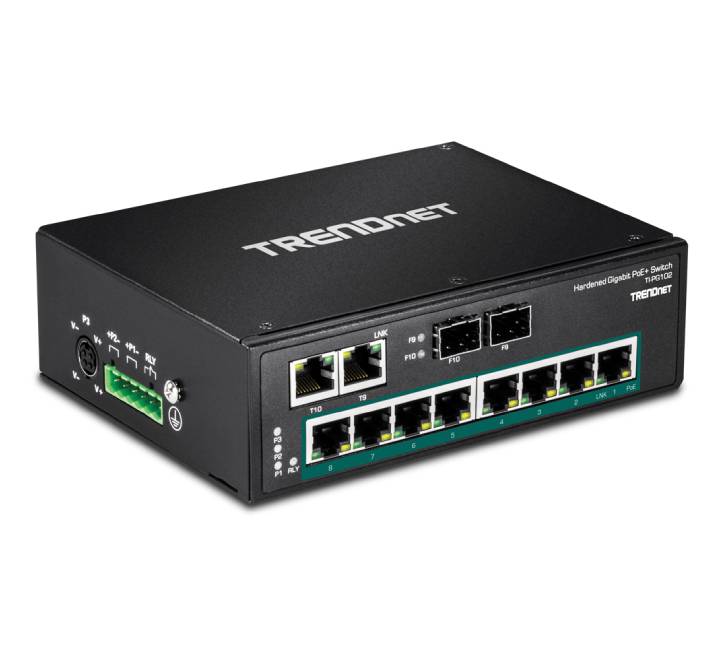

- Dual Redundant Power & Alarm Relay: Includes a 6-pin removable terminal block matching primary and secondary DC inputs with integrated overload current protection and an external hardware alarm output loop.
- Shock, Vibration, & Drop Rated: Extensively certified under international standards for physical resilience against shock (EN 60068-2-27), freefall (EN 60068-2-32), and steady vibration (EN 60068-2-6).
- Instant Plug-and-Play Integration: Pure unmanaged Layer 2 design utilizing automated store-and-forward switching architecture, auto-negotiation, and 6KV ESD static safety protection out of the box.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Physical Interfaces | 8 x Gigabit PoE+ Ports (RJ-45) | 2 x Shared Gigabit Combo Ports (RJ-45 / SFP Slots) | 6-pin removable terminal block | Grounding screw point |
| Switching Capacity | 20Gbps full non-blocking wire-speed switching fabric | 14.8 Mpps data forwarding rate (64-byte packet sizing) |
| PoE Capabilities | Supports IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) standard modes | Max 240W budget via 56V DC external connection profiles |
| Power Input Requirements | 48 - 56V DC terminal block input (External industrial primary power supplies like model TI-S24048 sold separately) | Base device draw: 5.67W (No PoE output active) |
| Alarm Contact Rating | Integrated hardware fault alarm relay output with carrying capacity of 1A at 24V DC (triggers automatically if primary/secondary power loops trip open) |
| Hardware Buffering | 2048 KB data packet RAM buffer capacity | 16K entries MAC address storage lookup array | Up to 10KB Jumbo Frame structural support |

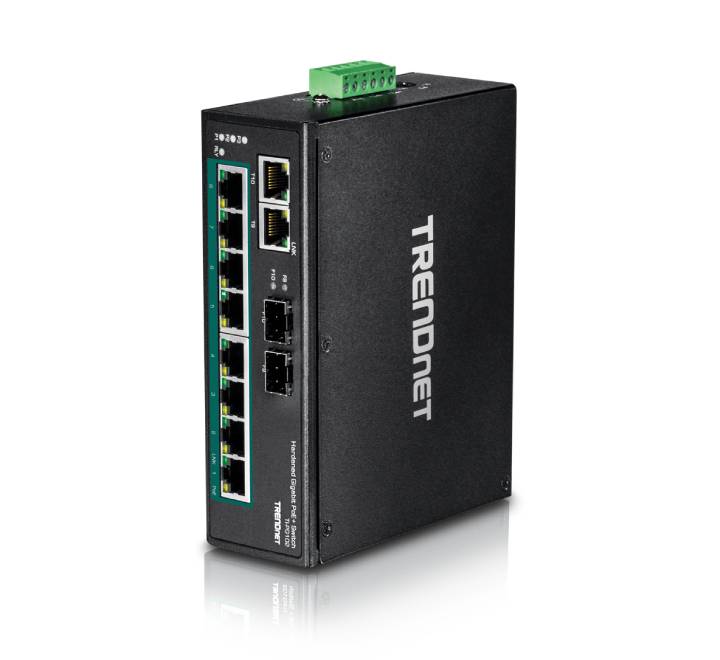

| Chassis Design | Rugged industrial IP30-rated structural metal shell | Includes integrated DIN-rail mount bracket and separate wall-mounting tab hardware panels |
| Environmental Tolerance | Operating Temperature: -40° to 75°C (-40° to 167°F) | Maximum relative humidity limit: 95% non-condensing |
| Dimensions & Weight | 155 x 120 x 48 mm (6.1 x 4.7 x 1.9 inches) | Net Weight: 445 g (1.0 lb) |
| Regulatory Standards | CE, FCC, TAA Compliant, NDAA Compliant | MTBF rating: 510,400 hours | TRENDnet Limited Lifetime Protection Cover |
