The TRENDnet TI-M6024 (Version V2) is a high-efficiency AC-to-DC 60W industrial DIN-rail power supply engineered to deliver rock-solid, consistent power to your mission-critical network architecture. Specifically designed for demanding industrial applications, this rugged unit efficiently converts universal alternating current into a stable 24V DC output, pushing up to 2.5A of continuous current to power hardened switches, PoE injectors, IP surveillance cameras, and outdoor wireless access points.

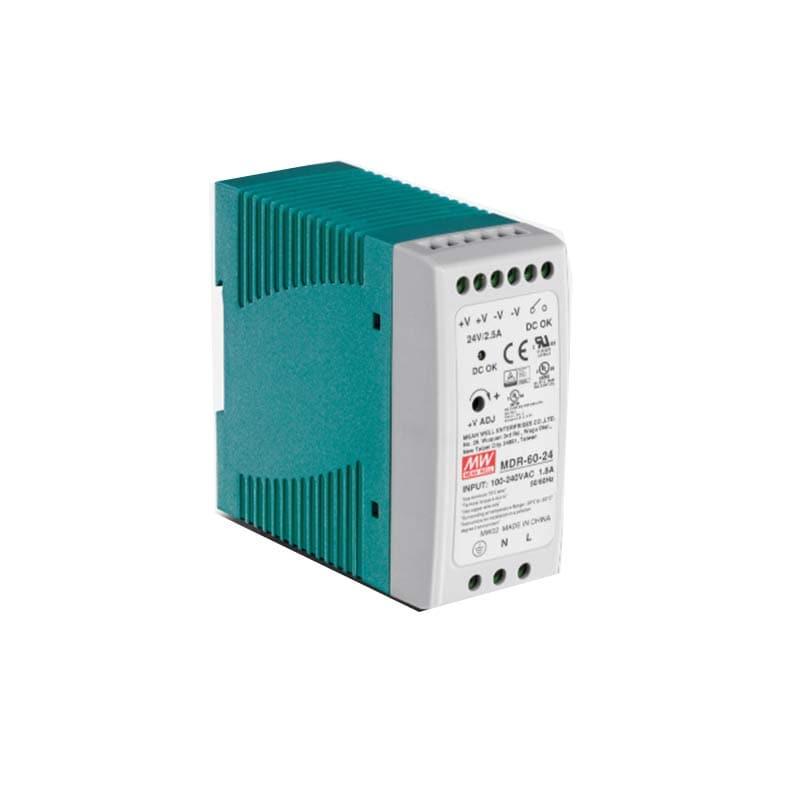

Housed in a compact, IP30-rated industrial enclosure with a built-in TS-35 DIN-rail mount, the TI-M6024 integrates seamlessly into standard electrical boxes and traffic control cabinets. Advanced safety mechanics, including active short-circuit, over-power, and over-voltage self-recovery protection systems, ensure your downstream network hardware remains protected against volatile power fluctuations.
Key Features
- 60W Clean Output: Delivers high-efficiency power (24V DC, 2.5A) with an adjustable output voltage range between 24V and 30V DC to fine-tune your deployment needs.
- 150% Peak Load Capacity: Advanced power engineering provides up to a 150% power boost overhead to safely manage startup power spikes from inductive loads.
- Industrial Environmental Hardening: Built with passive cooling (free air convection) to withstand harsh operating environments ranging from -25° to 70°C (-13° to 158°F).
- Smart DC OK Relay Contact: Features an integrated hardware relay sensor that continuously monitors output health and can trigger external alert systems during power disruptions.
- Comprehensive Circuit Protection: Automated protection matrix guards your assets against short circuits, overloads, over-voltage spikes, and over-current events via intelligent self-recovery modes.
- Pre-Tested Reliability: Every single unit undergoes a strict 100% full-load burn-in testing cycle to meet regulatory industrial deployment standards right out of the box.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Input Specifications | 100 – 240V AC, 50/60Hz, 1.8A 120 – 370V DC |
| Output Capacity | Power: 60W continuous max output Voltage: 24V DC default (Adjustable potentiometer range: 24 – 30V DC) Current: 0 – 2.5A max continuous output |

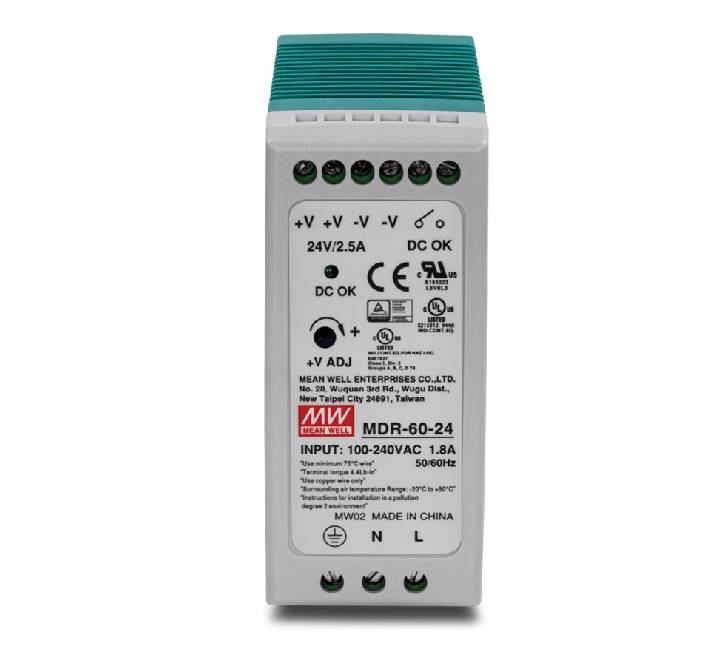

| Physical Interface | 6-pin removable screw-terminal block connections Dedicated Power status LED indicator Integrated TS-35/7.5 or TS-35/15 DIN-rail mounting slot |
| Performance Metrics | Efficiency rating: 86% baseline efficiency Peak Load Overhead: 150% peak headroom capacity Cooling: Natural air convection (completely fanless silent design) |
| Protection Arrays | Short Circuit protection (Self-recovery mode) Over Power / Over Current protection Over Voltage protection |
| Special Relays | Built-in "DC OK" dry relay diagnostic contacts |
| Housing & Environment | IP30-rated heavy-duty structural metal chassis Operating Temp: -25° to 70°C (-13° to 158°F) Operating Humidity: Max 95% non-condensing |
| Dimensions & Weight | 105 x 91 x 40 mm (4.1 x 3.5 x 1.6 in.) 267 g (0.58 lbs) |
| Regulatory Standards | CE, FCC, LVD, UL 62368-1 approved safety listings, CB IEC 62368 EMC Compliance: EN 55032, EN 61000-3-3, EN 55035 |
