Heavy-Duty Unmanaged Gigabit Aggregation for Extreme Industrial Environments

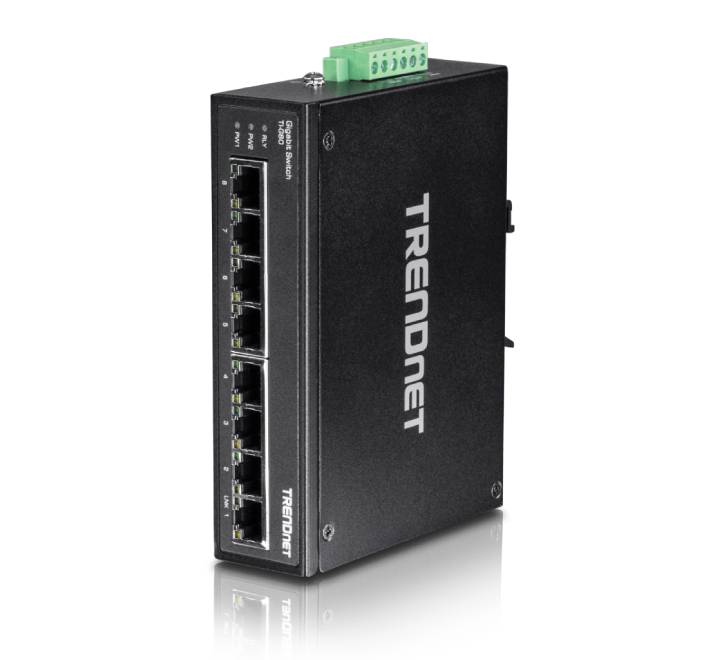

The TRENDnet 8-Port Hardened Industrial Gigabit DIN-Rail Switch (TI-G80) delivers reliable, high-bandwidth network distribution in the most demanding physical conditions. Engineered for factory automation plants, traffic control enclosures, warehouses, and outdoor surveillance nodes, this hardened unmanaged switch provides 8 dedicated full Gigabit Ethernet ports for stable, wire-speed network infrastructure deployment.
Encased in a heavy-duty, compact IP-rated metal chassis, the TI-G80 is purpose-built to withstand severe mechanical vibration, physical drops, and extreme environmental temperatures ranging from -40° to 75°C (-40° to 167°F). It features a smart fanless design for silent, high-reliability operation alongside dual-redundant DC terminal block inputs with an integrated fault alarm relay loop to eliminate network downtime in mission-critical applications.
Key Product Features
- 8 Gigabit Ethernet Ports: Equipped with 8 x 10/100/1000 Mbps RJ-45 auto-negotiation ports to support high-speed local data transfers with zero bottlenecks.
- Extreme Environmental Resiliency: Operates flawlessly in severe conditions across an extended thermal envelope of -40° to 75°C (-40° to 167°F).

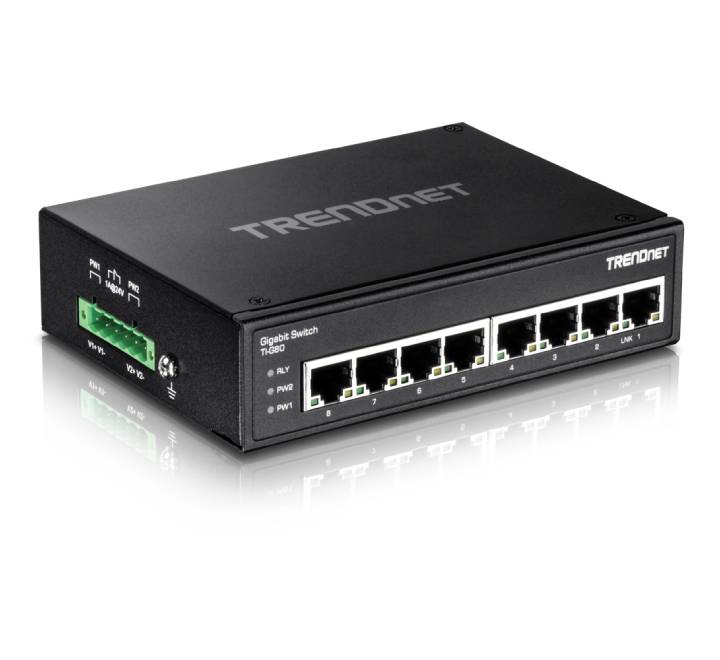

- Dual Redundant Power Inputs: Designed with a 6-pin removable terminal block accepting 12 - 56V DC primary and secondary inputs with power failure protection.
- Hardware Fault Alarm Relay: Includes an integrated physical alarm output loop that instantly triggers an external warning indicator if primary or secondary power drops.
- Industrial Shock & Vibration Tested: Fully certified under international regulatory benchmarks for heavy resistance to physical shock, continuous vibration, and freefall drops.
- Zero-Noise Fanless Engineering: Employs passive convection cooling to remove moving components, drastically improving the hardware lifespan and maintaining absolute silent operation.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Network Interfaces | 8 x Gigabit Ethernet Ports (RJ-45 Auto-MDIX) | 6-pin removable terminal block | Grounding screw point |
| Switching Capacity | 16Gbps full non-blocking wire-speed switching fabric layout | 11.9Mpps forwarding execution metrics |
| Power Input Profiles | 12 - 56V DC terminal input (External primary industrial power supplies sold separately) | Base consumption: 3.36W (Max draw ceiling) |
| Alarm Contact Rating | Hardware failure alarm relay output tracking 1A at 24V DC loop connections |
| Structural Buffers | 128KB data packet RAM buffer capacity | 8K entries MAC address auto-learning lookup array | 9KB Jumbo Frame support |
| ESD & Surge Protections | 6kV ESD protection | 2kV surge protection layout shields active ports against unexpected electrical surges |

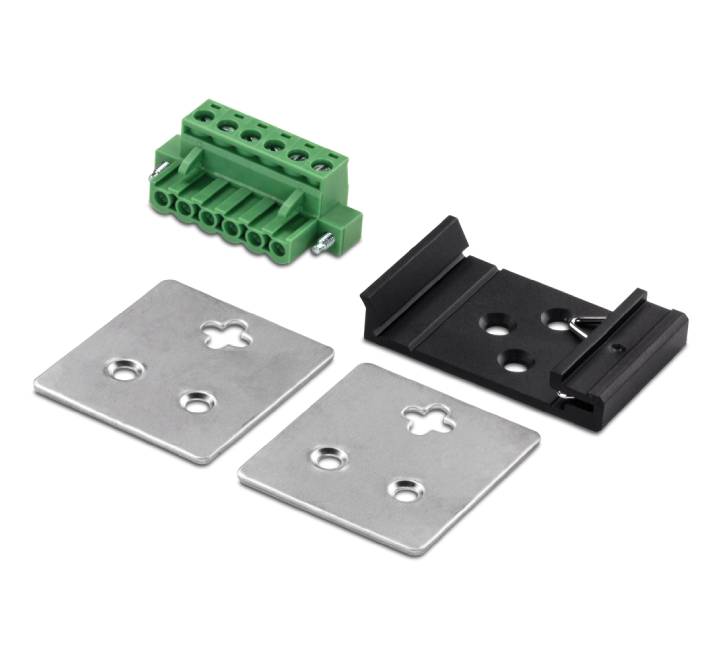

| Chassis Design | Heavy-duty rugged IP-rated industrial structural metal shell | Includes integrated DIN-rail mount track and wall-mounting hardware panel tabs |
| Environmental Tolerance | Operating Temperature: -40° to 75°C (-40° to 167°F) | Maximum relative humidity parameters: 95% non-condensing |
| Dimensions & Weight | 143 x 104 x 36 mm (5.6 x 4.1 x 1.4 inches) | Net device weight: 474 g (16.7 oz) |
| Compliance & Cover | CE, FCC, TAA Compliant, NDAA Compliant | MTBF rating: Over 500,000 hours | TRENDnet Limited Lifetime Protection Cover |
