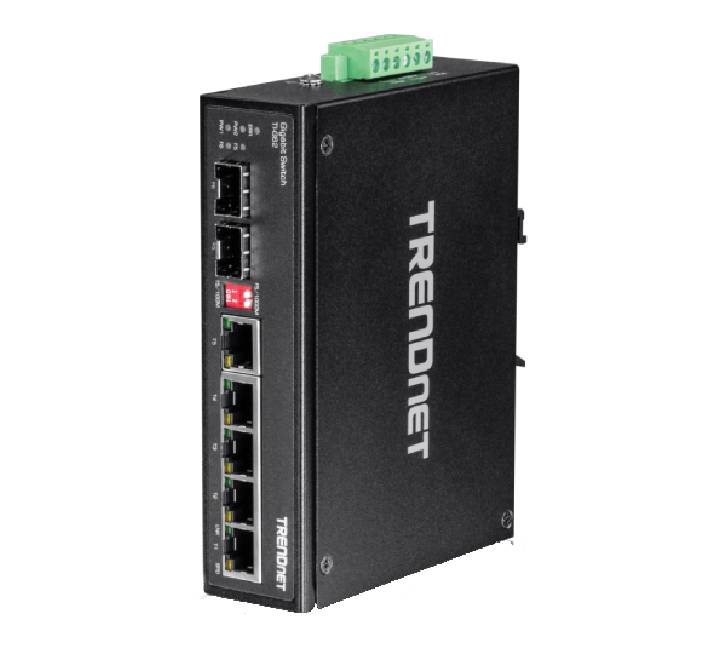

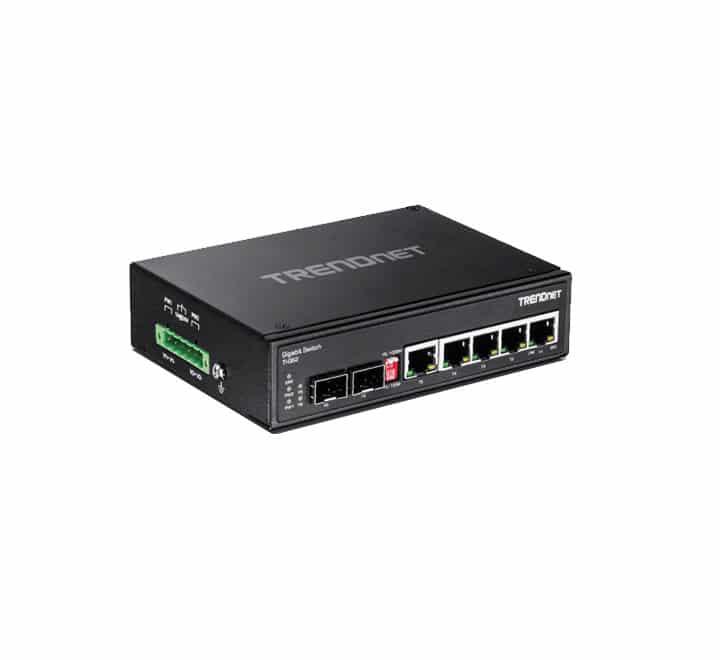

The TRENDnet TI-G62 is a highly reliable, hardened industrial Gigabit DIN-rail switch engineered to deliver seamless network performance in the most demanding environments. Outfitted with an industrial-grade rugged metal housing, this unmanaged switch is designed to withstand intense vibrations, heavy shocks, and extreme temperatures, making it the perfect choice for manufacturing plants, warehouses, traffic control cabinets, and outdoor installations.
Featuring five dedicated Gigabit Ethernet ports and two Gigabit SFP slots for long-distance fiber connectivity, the TI-G62 provides high-speed, flexible infrastructure mapping without requiring complex configurations. Its plug-and-play architecture combined with dual redundant power inputs guarantees near-zero network downtime for mission-critical applications.
Key Features
- Hardened Industrial Build: Rugged IP-rated heavy-duty metal enclosure engineered to withstand high vibration, mechanical shock, and freefall drops.
- Extreme Temperature Resilience: Operates flawlessly in extreme weather conditions ranging from freezing cold to scorching heat (-40° to 75°C / -40° to 167°F).
- High-Speed Fiber Integration: Equipped with 5x Gigabit RJ-45 ports and 2x Gigabit SFP slots for flexible, long-distance network extensions.
- Dual Redundant Power Inputs: Supports terminal block connection with overload current protection and an integrated alarm relay that triggers during primary power failure to ensure continuous uptime.
- Plug-and-Play Simplicity: Unmanaged structural architecture eliminates complex network configuration; simply plug in your devices for instantaneous deployment.
- Integrated Grounding Point: Protects your backend infrastructure from external electrical surges and static hazards.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Device Interfaces | 5 x Gigabit Ports (10/100/1000Mbps) 2 x Gigabit SFP Slots (1000Mbps) 6-pin removable terminal block LED indicators, Grounding point |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Switching Capacity | Up to 14 Gbps fabric capacity |
| Forwarding Rate | 10.4 Mpps (64-byte packet size) |
| Special Features | Jumbo Frame support up to 9KB, Auto-Negotiation, Store-and-Forward architecture, Automatic MAC address learning & aging |
| Power Input & Consumption | Input: 12 - 56V DC (Compatible power supply TI-M6024 / TI-S15052 sold separately) Max. Consumption: 4.5W @ 56V DC |
| Alarm Relay Contact | Relay output 1A @ 24V DC (Triggers short circuit mode on power disruption) |
| Enclosure & Protection | Hardened Industrial Metal Enclosure ESD Protection: 6kV (Contact) Surge Protection: 2kV |
| Mounting Options | DIN-Rail Mount & Wall Mount hardware included |
| Environmental Ratings | Operating Temp: -40° to 75°C (-40° to 167°F) Humidity: Max 95% non-condensing Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6) |
| Dimensions & Weight | 143 x 104 x 36 mm (5.6 x 4.1 x 1.4 in.) 514 g (1.1 lbs) |
| MTBF & Warranty | 1,300,000 hours @ 25°C 6 Months Warranty |
