Compact Unmanaged Gigabit Distribution for Mission-Critical Industrial Environments

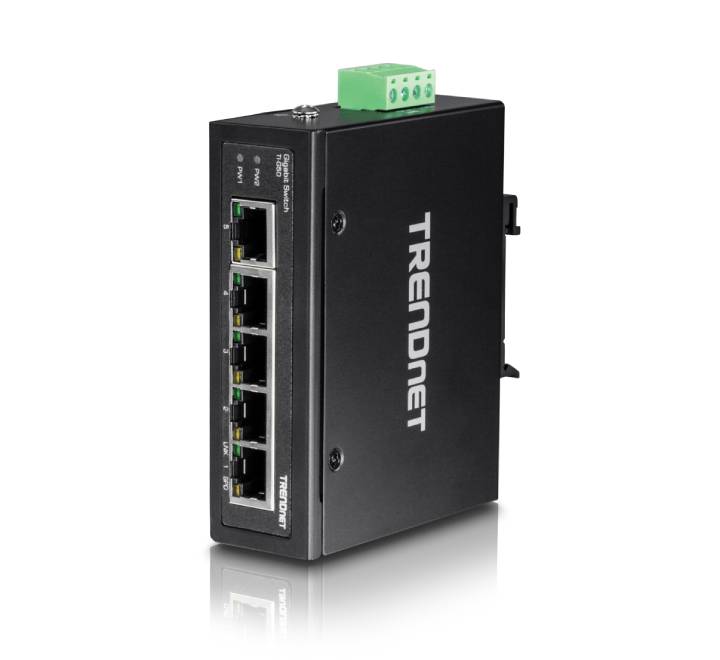

The TRENDnet 5-Port Hardened Industrial Gigabit DIN-Rail Switch (TI-G50) offers a ruggedized, space-saving network aggregation solution engineered for high performance under extreme physical stress. Tailored for tightly confined control panels, factory floors, outdoor surveillance boxes, and automation environments, this hardened unmanaged switch provides 5 dedicated full Gigabit Ethernet ports for continuous, wire-speed network infrastructure deployment.
Encased in a heavy-duty, ultra-compact IP-rated metal chassis, the TI-G50 is purpose-built to withstand severe mechanical vibration, physical drops, and extreme environmental temperatures ranging from -40° to 75°C (-40° to 167°F). It features a smart fanless layout for zero-noise passive cooling alongside dual-redundant DC terminal block inputs with an integrated hardware fault alarm relay loop to ensure absolute network uptime in demanding field conditions.
Key Product Features
- 5 Full Gigabit Ethernet Ports: Outfitted with 5 x 10/100/1000 Mbps RJ-45 auto-negotiation ports to maintain clean, high-speed network pipelines with zero data throttling.
- Ultra-Compact Industrial Enclosure: Miniature form factor takes up minimal space on high-density DIN-rail tracks, maximizing deployment efficiency inside electrical cabinets.
- Extreme Extended Temperature Resilience: Operates flawlessly in unconditioned environments across a wide thermal window of -40° to 75°C (-40° to 167°F).

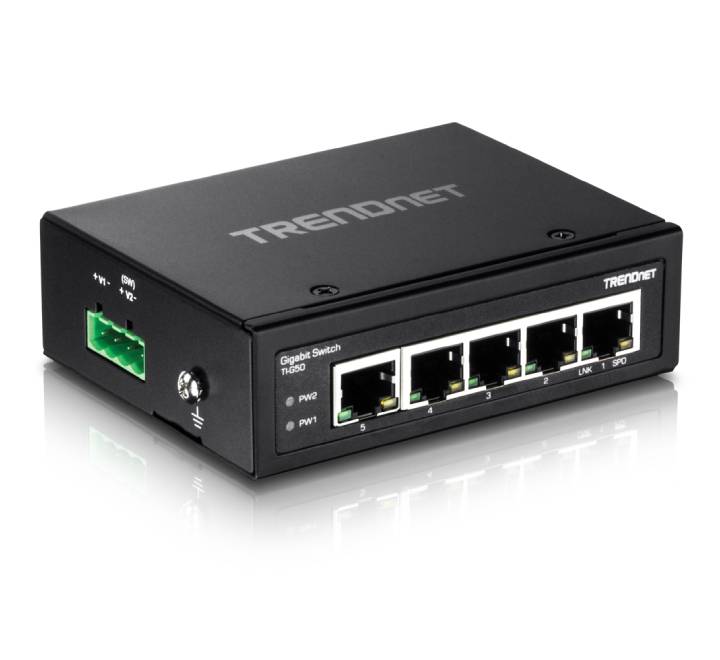

- Dual Redundant Power Inputs: Outfitted with a 6-pin removable terminal block that accepts 12 - 56V DC primary and secondary inputs with integrated over-current security.
- Hardware Fault Alarm Relay: Includes an integrated physical alarm output loop designed to instantly trip an external warning indicator if a primary or backup power supply circuit drops open.
- Tested Industrial-Grade Rigidity: Certified under rigorous international regulatory benchmarks for heavy resistance to physical shock, continuous machine vibration, and freefall drops.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Network Interfaces | 5 x Gigabit Ethernet Ports (RJ-45 Auto-MDIX) | 6-pin removable terminal block | Dedicated grounding terminal point |
| Switching Capacity | 10Gbps full non-blocking wire-speed switching fabric layout | 7.44Mpps data forwarding rate |
| Power Input Profiles | 12 - 56V DC terminal input (External primary industrial power supplies sold separately) | Low power consumption: 2.76W (Max draw ceiling) |
| Alarm Contact Rating | Hardware failure alarm relay output tracking 1A at 24V DC loop configurations |
| Hardware Buffers | 128KB data packet RAM buffer capacity | 2K entries MAC address auto-learning lookup array | 9KB Jumbo Frame support |
| ESD & Surge Protections | 6kV ESD protection | 2kV surge protection layout shields active copper ports against line disruptions |

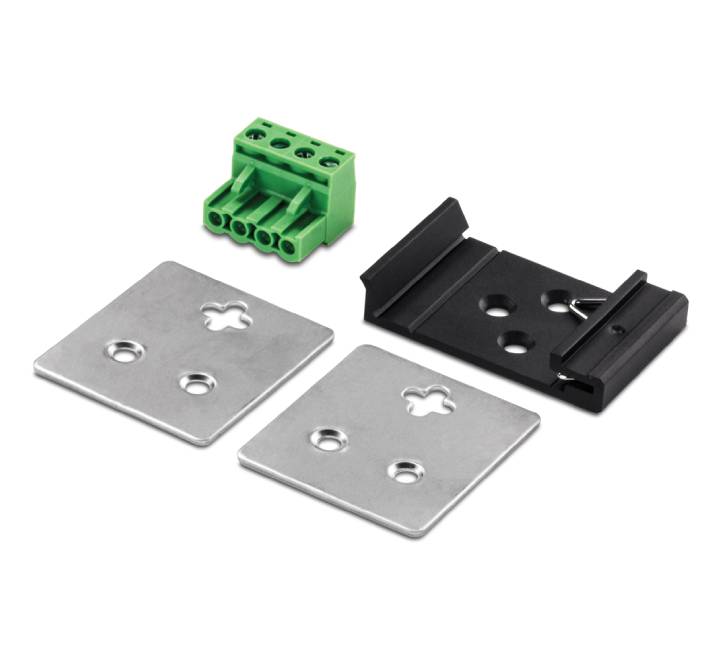

| Chassis Design | Heavy-duty rugged IP-rated industrial structural metal shell | Includes integrated DIN-rail mount track and wall-mounting hardware panel tabs |
| Environmental Tolerance | Operating Temperature: -40° to 75°C (-40° to 167°F) | Maximum relative humidity parameters: 95% non-condensing |
| Dimensions & Weight | 113 x 93 x 28 mm (4.4 x 3.6 x 1.1 inches) | Ultra-light device weight: 268 g (9.4 oz) |
| Compliance & Cover | CE, FCC, TAA Compliant, NDAA Compliant | MTBF rating: Over 500,000 hours | TRENDnet Limited Lifetime Protection Cover |
