Heavy-Duty, Extreme-Environment Industrial Network Integration

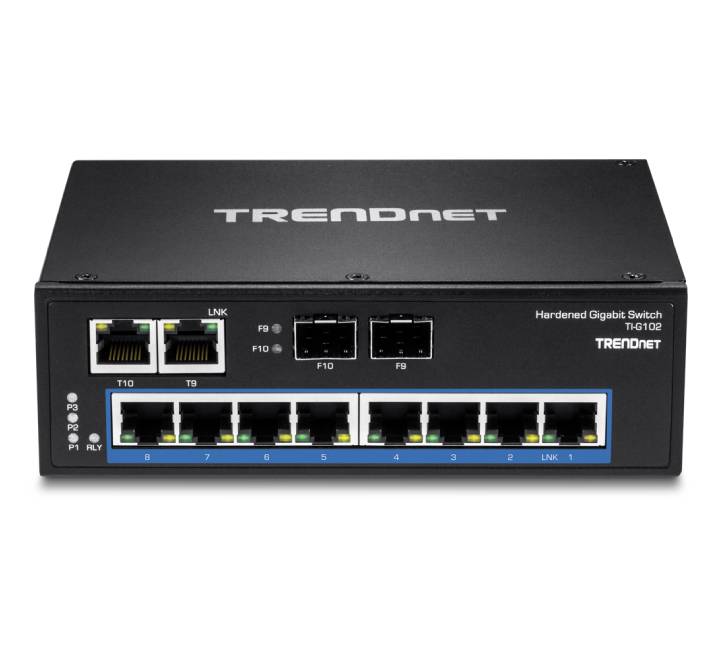

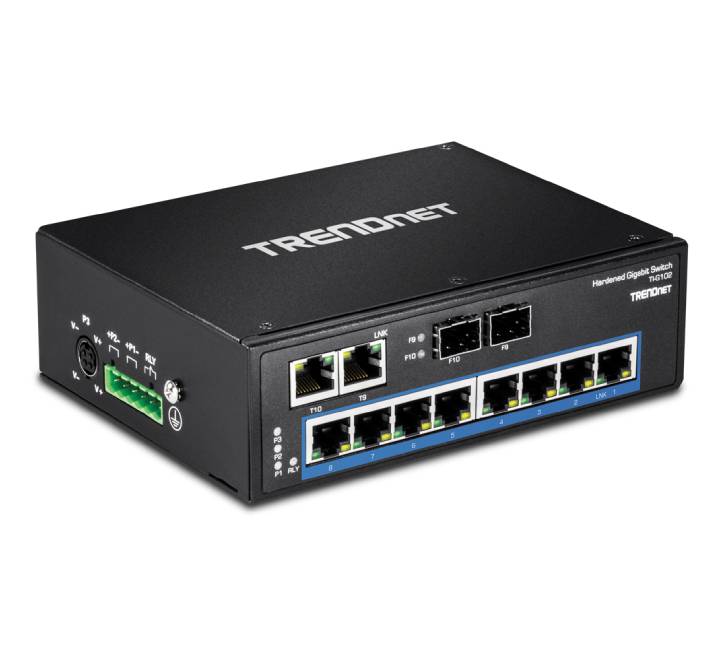

The TRENDnet TI-G102 10-Port Hardened Industrial Gigabit DIN-Rail Switch is a ruggedized, high-performance networking solution engineered specifically for demanding industrial, automation, and outdoor surveillance applications. Housed in an IP30-rated metal enclosure, this unmanaged plug-and-play switch is built to withstand extreme operating conditions, high shock, and heavy vibration—ensuring flawless data distribution where standard commercial hardware fails.
The TI-G102 provides 8 dedicated Gigabit ports alongside 2 shared Gigabit combo ports that accept either copper RJ-45 lines or SFP fiber transceiver modules for long-distance backhauls. Designed for mission-critical reliability, it features redundant dual power inputs with overload current protection to guarantee continuous network uptime even during primary power supply failures. With an ultra-wide operational temperature range spanning from -40° to 75°C (-40° to 167°F), this switch is perfectly suited for factory floors, traffic control cabinets, and extreme outdoor environments.
Key Product Features
- 10-Port Industrial Configuration: Features 8 x Gigabit RJ-45 ports and 2 x Shared Gigabit Combo ports (RJ-45 or SFP) to easily adapt to mixed copper and fiber deployments.
- Hardened IP30 Metal Enclosure: Rugged, high-strength industrial housing rated for high vibration, structural shock, and free-fall impacts.
- Extreme Temperature Resilience: Engineered to operate flawlessly in unconditioned environments with severe temperature fluctuations from -40° to 75°C (-40° to 167°F).
- Redundant Power Support: Equipped with terminal block dual power inputs (primary and backup) with built-in power failure alarm relay connections to maintain zero downtime.

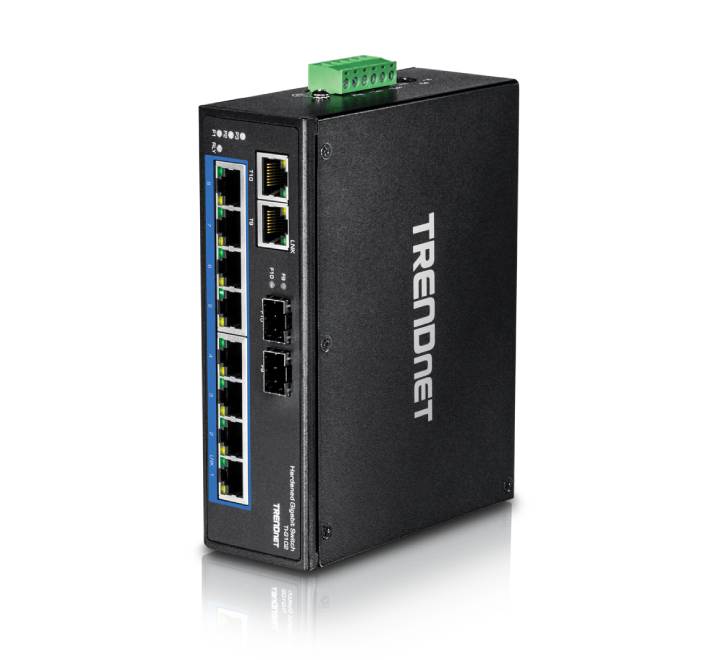

- DIN-Rail and Wall Mount Ready: Includes an integrated DIN-rail mount bracket along with alternative structural wall mounting plate kits for versatile enclosure layouts.
- 20Gbps Switching Fabric: Non-blocking full-duplex throughput fabric effortlessly processes heavy traffic loads from industrial automation networks and continuous HD IP camera arrays.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Device Interfaces | 8 x Gigabit Ports, 2 x Shared Gigabit Combo Ports (RJ-45 / SFP), 6-pin removable terminal block, LED status array |
| Standards & Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az |
| Throughput Capacity | 20Gbps total forwarding capacity fabric (Forwarding rate: 14.88Mpps using 64-byte packet parameters) |
| RAM Buffers & Tables | Data RAM Buffer: 1.5MB | MAC Address Table: 4K entries | Jumbo Frames support up to 9KB |
| Power Requirements | Input: 12 – 56V DC or 18 – 36V AC redundant power inputs (Power supply adapter sold separately) |
| Power Consumption | Max. electrical draw: 5.8 Watts (Ideal for low-draw battery and solar setups) |
| Industrial Standards Compliance | Shock (IEC 60068-2-27) | Freefall (IEC 60068-2-32) | Vibration (IEC 60068-2-6) | Surge Protection: 6kV |
| Dimensions & Weight | 143 x 104 x 36mm (5.6 x 4.1 x 1.4 in.) | 468g (16.5 oz.) |
| Package Contents | TI-G102 Switch, Quick Installation Guide, Removable Terminal Block, DIN-Rail and Wall Mount Kit brackets |
