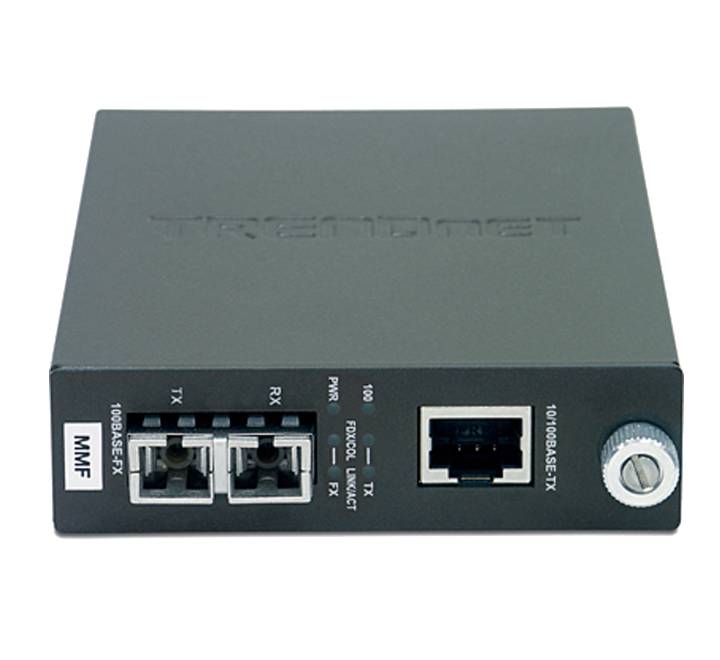

Bridge your copper-based Fast Ethernet infrastructure with high-efficiency fiber optics using the TRENDnet TFC-110MSC Intelligent 10/100Base-TX to 100Base-FX Multi-Mode SC Fiber Converter. This commercial-grade hardware module seamlessly transforms standard 10/100Mbps copper twisted-pair network signals into reliable multi-mode fiber optic media. By deploying this converter, IT professionals can drastically bypass the restrictive 100-meter physical length limit of standard Ethernet cabling, expanding secure network reaches up to 2 kilometers (1.2 miles) without signal degradation.
The TFC-110MSC is built for maximum network availability and troubleshooting precision. It features an intelligent auto-negotiation system that optimizes speed and duplex configuration automatically. This versatile unit can be deployed immediately as a standalone desktop utility or integrated seamlessly into TRENDnet's optional multi-slot TFC-1600 rack-mount chassis for centralized enterprise operations.
Key Features
- Long-Distance Network Expansion: Bridges standard copper Ethernet setups to multi-mode fiber infrastructure, safely extending link distances up to 2km (1.2 miles).
- SC-Type Fiber Port: Equipped with a multi-mode SC-type dual-fiber connector interface for a robust, snap-in mechanical network link.
- Link Pass-Through (LPT) Diagnostics: Features LLCF/LLR (Link Loss Carry Forward / Link Loss Return) protocols to instantly notify network administrators of structural fiber or copper line drops.
- Auto-Negotiation & Auto-MDIX: The 10/100Mbps RJ-45 copper interface automatically adapts to network node configurations and eliminates the need for legacy crossover cables.
- Comprehensive Diagnostic LEDs: A high-visibility front LED matrix monitors power status, link activity, speed indicator profiles, and full/half-duplex network states at a glance.
- Chassis Mount Compatible: Can be used out-of-the-box as a reliable standalone module or slid directly into the 16-slot TRENDnet TFC-1600 fiber converter chassis system.
Technical Specifications
| Specification | Details |
|---|---|
| Standard Protocol | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX & 100Base-FX |
| Copper Ethernet Port | 1 x 10/100Mbps Auto-MDIX RJ-45 Port |
| Fiber Optic Port | 1 x 100Base-FX Multi-Mode SC-Type Port (Duplex) |
| Wavelength | 1310nm |
| Max Link Distance | Up to 2 kilometers (1.2 miles) |
| Supported Network Media | Copper: Cat. 3, 4, 5, 5e, 6 UTP/STP | Fiber: 50/125µm or 62.5/125µm Multi-Mode |
| Data Transfer Speed | 100Mbps (Half Duplex), 200Mbps (Full Duplex) |
| Power Consumption | Max 1.8 Watts (Via included 5V DC 1A external power adapter) |
| Chassis Material & Build | Durable Metal Enclosure | 120 x 88 x 25 mm (4.7 x 3.46 x 0.98 in.) |
| Weight & Certifications | 354g (12.5 oz.) | CE, FCC |
