Compact, Energy-Efficient Gigabit Expansion for Desktop Networks
The TRENDnet TEG-S80g 8-Port Gigabit GREENnet Mini Switch provides an ultra-reliable, high-bandwidth networking solution to seamlessly expand your home or office local area network (LAN). Built into a rugged, compact metal enclosure, this unmanaged plug-and-play desktop switch transforms a single network drop into eight high-speed Gigabit connections—making it the perfect central hub for computers, gaming consoles, smart TVs, network storage (NAS), and media streamers.
Engineered with advanced GREENnet technology, the TEG-S80g significantly reduces power consumption by up to 70% compared to standard, non-green network devices. The switch dynamically evaluates port connectivity status, link speeds, and cable lengths to automatically allocate the exact amount of electricity required for active transmissions, minimizing operational waste without sacrificing a single drop of network performance. With a total switching capacity of 16Gbps, this fanless desktop switch facilitates whisper-quiet data distribution to eliminate home office lag and corporate bottlenecks alike.
Key Product Features
- 8 x Gigabit Ports: High-speed wired connectivity featuring 8 x 10/100/1000Mbps auto-negotiating RJ-45 ports to maximize data transfer efficiency.
- GREENnet Power Optimization: Embedded smart power management system dynamically regulates voltage profiles to slash device power usage by up to 70%.
- Plug-and-Play Simplicity: No software setups, web menus, or configuration requirements. Fully operational right out of the box for instant, frictionless integration.
- 16Gbps Switching Fabric: Non-blocking full-duplex wire-speed architecture handles heavy concurrent file transfers and media streams smoothly.
- Silent Fanless Architecture: Housed in a durable, compact black metal chassis without internal fans, ensuring absolute zero operational acoustic noise.

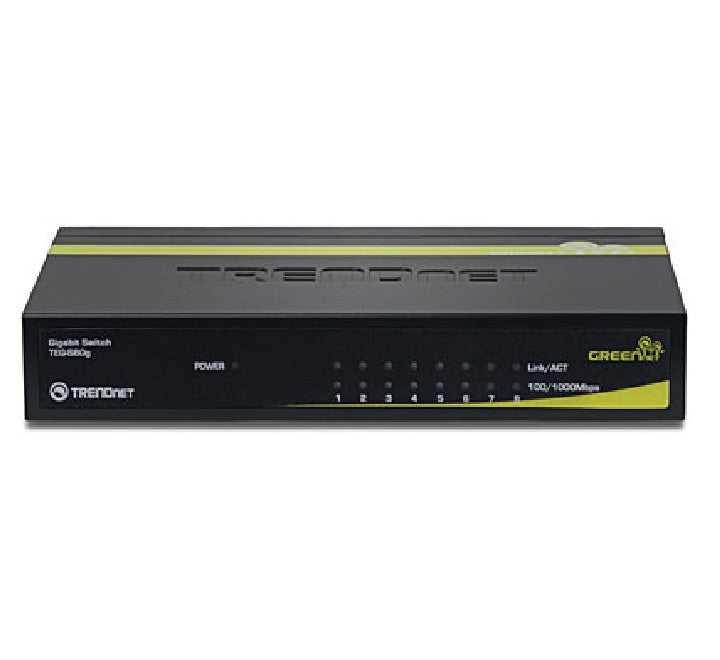

- Diagnostic LED Array: Dedicated front-panel status indicators keep you visually informed of power status, link integrity, and activity per channel.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Device Interfaces | 8 x Gigabit Ports (10/100/1000Mbps), Power Indicator, Port Status LED Indicators |
| Standards & Compliance | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az (Energy Efficient Ethernet) |
| Switching Capacity | 16Gbps total forwarding capacity fabric (Forwarding rate: 11.9Mpps utilizing 64-byte packet profiles) |
| RAM Buffers & Tables | Data RAM Buffer: 192KB | MAC Address Table: 4K entries | Jumbo Frames support up to 9KB |
| Data Transfer Speed | Ethernet: 10Mbps/20Mbps | Fast Ethernet: 100Mbps/200Mbps | Gigabit Ethernet: 1000Mbps/2000Mbps (Half/Full Duplex) |
| Power Consumption | Input: 100 – 240V AC, 50/60Hz external power adapter | Max electrical consumption: 4.14 Watts |
| Thermal Design & Acoustics | Passive thermal design, fanless desktop configuration | 0dB absolute silent operational signature |
| Dimensions & Weight | 125 x 51.8 x 24mm (4.96 x 2.04 x 0.94 in.) | 134g (4.72 oz.) |
| Certifications & Warranty | CE, FCC compliant | TRENDnet Manufacturer Lifetime Protection Warranty Coverage |
