Description
High-Speed Gigabit Networking Made Simple

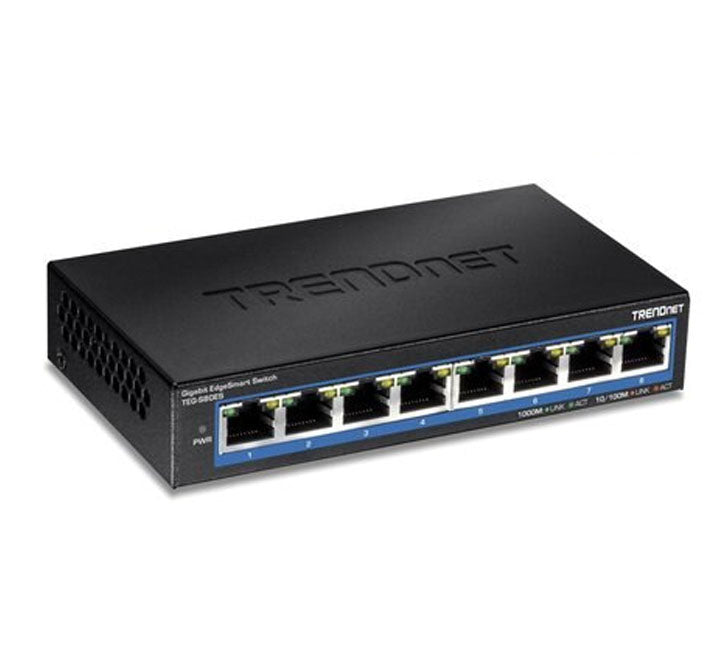

The TRENDnet TEG-S80ES 8-Port Gigabit EdgeSmart Switch is a highly cost-effective, high-speed desktop managed switch solution designed specifically for demanding gigabit applications in Small and Medium-Sized Businesses (SMBs). Stripping away unnecessary, enterprise-level network complexities, this EdgeSmart switch serves up the exact management features you need.
Equipped with an intuitive, web-based graphical user interface (GUI), it allows you to effortlessly manage your local network traffic. Rest assured knowing your infrastructure handles heavy data loads easily with a robust 16Gbps switching capacity, delivering seamless integration, advanced traffic filtering, and simplified network tuning.
Key Product Features
- EdgeSmart Intelligent Management: Features a simplified, user-friendly web-based GUI that reduces network configuration hassle and streamlines deployment times.
- Robust Traffic Control: Take full command of network traffic with Static Link Aggregation, RSTP (Rapid Spanning Tree Protocol), Loopback Detection, and IGMP Snooping.
- Advanced VLAN Support: Segment your network securely with Port-based VLAN, 802.1Q Tagged VLAN, and specialized Voice VLAN dedicated to prioritizing VoIP communications.
- Quality of Service (QoS): Fine-tune bandwidth allocation per port and enforce 802.1p Class of Service (CoS) queue scheduling to keep critical applications running without lag.
- Durable, Fanless Design: Housed in a compact, wall-mountable metal casing that operates silently, making it ideal for quiet office workspaces and desktop installations.
- Energy Efficient & Compliant: Supports the IEEE 802.3az energy-saving standard and is fully NDAA / TAA compliant for official projects in the U.S. and Canada.
Technical Specifications
| Attribute | Specification Details |
|---|---|

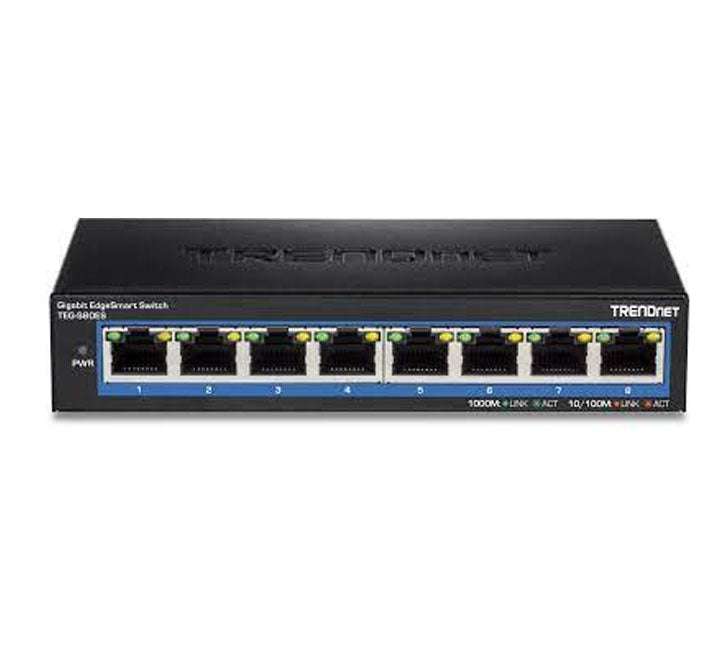

| Device Interface | 8 x Gigabit Ports, LED indicators, Reset button |
| Standards | IEEE 802.1d, 802.1w, 802.1p, 802.1Q, 802.3, 802.3u, 802.3x, 802.3ab, 802.3az |
| Switch Fabric Capacity | 16Gbps (Forwarding rate: 11.9Mpps with 64-byte packet size) |
| Data Transfer Rate | Ethernet: Up to 20Mbps (Full Duplex) | Fast Ethernet: Up to 200Mbps (Full Duplex) | Gigabit Ethernet: Up to 2000Mbps (Full Duplex) |
| Buffers & Tables | RAM Buffer: 192KB | MAC Address Table: 4K entries | Jumbo Frames: 9KB |
| Management & Diagnostics | HTTP Web-based GUI, SNMP v1, v2c, Cable diagnostic test, Loopback Detection |
| VLAN & Multicast | Port-based, 802.1Q Tagged, Voice VLAN, Private/Asymmetric VLAN | IGMP Snooping v1/2/3 (up to 32 groups) |
| Power & Consumption | Input: 100-240V AC | Output: 5V DC, 1A external adapter | Max consumption: 4.94W |
| Enclosure & Environment | Metal housing, Wall-mountable, Fanless silent operation | Operating temperature: 0° to 40° C |
| Dimensions & Weight | 145 x 82 x 28 mm (5.7 x 3.22 x 1.1 in.) | 317g (11.18 oz.) |
| Package Contents | TEG-S80ES Switch, Quick Installation Guide, Power Adapter (5V DC, 1A) |
