Description
High-Density, Zero-Configuration Gigabit Networking

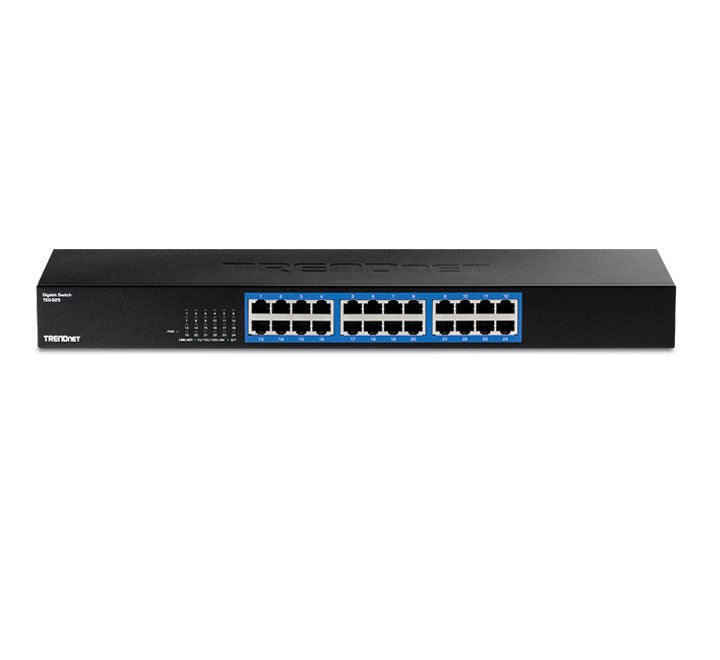

The TRENDnet TEG-S25 24-Port Gigabit Switch provides high-bandwidth performance, ease of use, and rock-solid reliability to expand your local office network. This rack-mountable metal switch delivers an effortless way to scale your connectivity, allowing you to instantly share large files, graphics, and video across your entire workspace without bottlenecking.
Designed as a true plug-and-play solution, the TEG-S25 requires no software installations or complex setups. Simply plug in your devices and let the switch automatically optimize data transfer speeds up to 2000Mbps in full-duplex mode. With a massive 48Gbps total switching capacity, your business can keep up with heavy network loads effortlessly.
Key Product Features
- 24 Gigabit Ports: High-density deployment featuring 24 x 10/100/1000Mbps RJ-45 ports to connect servers, workstations, storage nodes, and access points.
- Plug-and-Play Simplicity: Zero software or configuration required. Fully operational right out of the box to instantly expand your network fabric.
- 48Gbps Switching Capacity: High-performance architecture allows non-blocking data forwarding to handle demanding office traffic smoothly.
- Fanless Silent Operation: Built with a fanless design that eliminates distracting background noise, making it perfect for quiet office desktops or close-quarter AV closets.
- GREENnet Energy Efficiency: Built-in advanced GREENnet technology automatically regulates power consumption based on port link status and cable length, saving up to 70% energy.
- Rugged Rackmount Design: Housed in a durable 1U 19-inch metal enclosure, complete with an included rackmount bracket kit for seamless server room installation.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Device Interface | 24 x Gigabit RJ-45 Ports, LED diagnostic indicators |
| Standards & Protocols | IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az (Energy Efficient Ethernet) |
| Switching Capacity | 48Gbps non-blocking wire-speed forwarding performance |
| Data Transfer Rate | Ethernet: 10/20Mbps | Fast Ethernet: 100/200Mbps | Gigabit: 1000/2000Mbps (Half/Full Duplex) |
| Data RAM Buffer | 512KB internal performance buffer |
| MAC Address Table | 8K entries with automatic address learning and aging features |
| Jumbo Frames Support | Up to 10KB optimizing large block storage transmissions |
| Power Supply | Internal universal power supply (Input: 100-240V AC, 50/60Hz, 0.5A) |
| Power Consumption | Max power consumption: 11.2W |
| Chassis Dimensions | 280 x 180 x 44 mm (11 x 7.1 x 1.73 in.) | 1U 19-inch standard rackmount size |
| Weight & Cooling | 1.4 kg (3 lbs.) | Quiet metal enclosure without dynamic internal fans |
| Package Contents | TEG-S25 Switch, Quick Installation Guide, Power Cord, Rackmount Bracket Kit |
