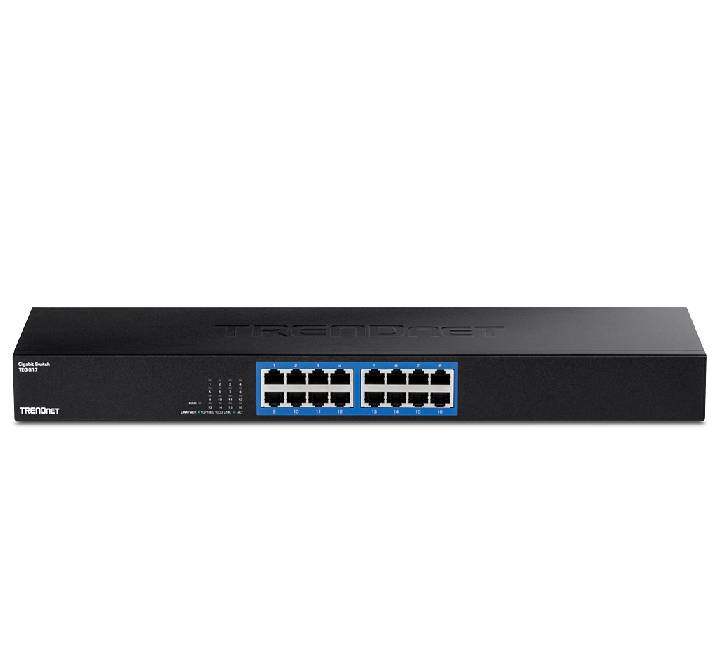

High-Performance, Reliable 16-Port Gigabit Network Expansion
The TRENDnet TEG-S17 16-Port Gigabit Switch delivers high-bandwidth performance, proven reliability, and low power consumption to expand your office network fabric. Designed to eliminate network congestion, this high-density unmanaged switch provides an effortless path toward bolstering data transfer speeds across workstations, storage arrays, and network servers.
Built for ultimate simplicity, the TEG-S17 features a true plug-and-play architecture that completely skips complicated software installations or management tasks. Simply connect your ethernet drops and let the switch dynamically optimize speeds up to 2000Mbps per port in Full-Duplex mode. Packaged in a rugged, fanless metal housing, it brings silent efficiency directly to your desktop or server room.
Key Product Features
- 16 Gigabit Ports: High-density 16 x 10/100/1000Mbps RJ-45 ports to instantly scale wired connections for office computers, network printers, and NAS drives.
- Plug-and-Play Simplicity: No network management knowledge required. Zero software configurations or setups needed—just plug in and start networking.
- 32Gbps Switching Capacity: High-performance, non-blocking wire-speed forwarding ensures large data, graphics, and video file transfers move seamlessly without latency.
- GREENnet Energy Saving: Built-in advanced GREENnet technology automatically monitors link status and cable length to lower idle power usage by up to 70%.
- Fanless Silent Operation: The passive cooling architecture entirely eliminates moving internal fans, offering completely silent operation ideal for noise-sensitive office environments.

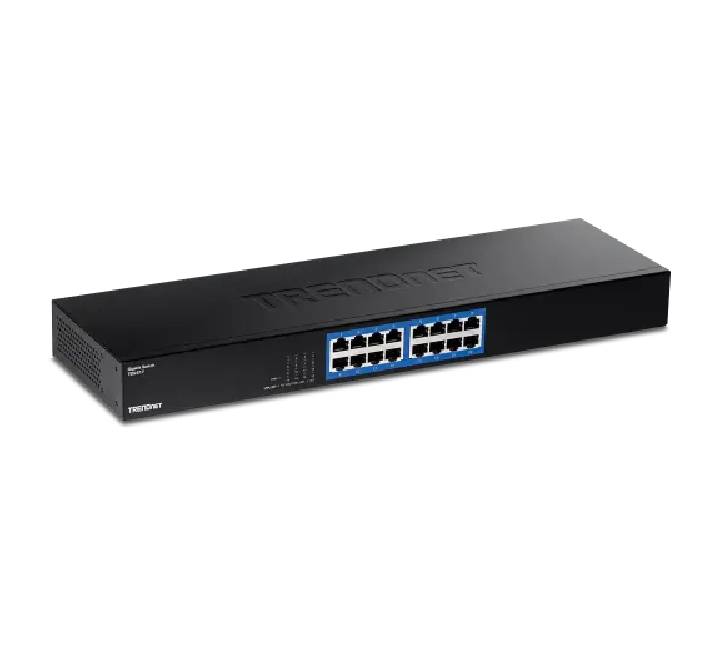

- Durable Desktop or Rackmount Design: Housed in a rugged, compact metal enclosure that sits neatly on a desktop or fits clean into server layouts using the included 19-inch rackmount brackets.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Device Interface | 16 x Gigabit RJ-45 Ports, Front-facing diagnostic LED indicators |
| Standards & Protocols | IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az (Energy Efficient Ethernet) |
| Switching Capacity | 32Gbps forward rate (Non-blocking fabric architecture) |
| Data Transfer Rate | Ethernet: 10/20Mbps | Fast Ethernet: 100/200Mbps | Gigabit: 1000/2000Mbps (Half/Full Duplex) |
| Data RAM Buffer | 512KB internal high-performance data packet buffer |
| MAC Address Table | 8K entries with automatic address learning and age tracking features |
| Jumbo Frames Support | Up to 10KB block optimizations to reduce transmission overhead |
| Power Input | Internal universal power supply (Input: 100-240V AC, 50/60Hz) |
| Power Consumption | Max power consumption: 9.3W |
| Chassis Design | Durable metal enclosure, Fanless silent cooling architecture, 1U layout design |
| Dimensions & Weight | 280 x 180 x 44 mm (11 x 7.1 x 1.73 in.) | 1.34 kg (2.95 lbs.) |
| Package Contents | TEG-S17 Switch, Quick Installation Guide, AC Power Cord, Rackmount Kit Brackets |
