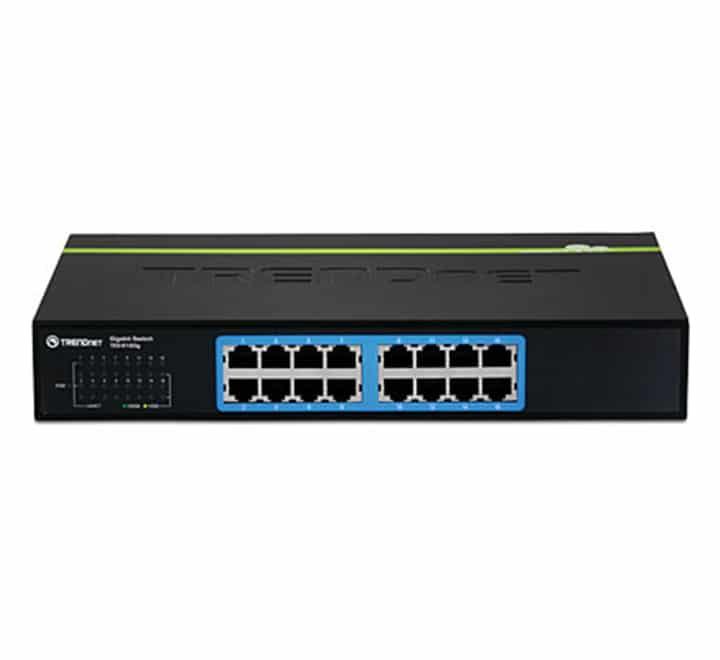

The TRENDnet TEG-S16Dg is a high-bandwidth 16-Port Gigabit GREENnet desktop switch engineered to boost network efficiency and eliminate office traffic congestion. Outfitted with 16 Gigabit RJ-45 ports, this unmanaged switch provides a reliable, plug-and-play solution for expanding your high-speed wired network infrastructure without requiring complex administrative setup.
Featuring a sturdy metal housing design, the TEG-S16Dg easily adapts to both desktop placements or dedicated rack environments using an optional mount kit. Its advanced fanless architecture guarantees completely silent operation, making it ideal for noise-sensitive workspaces, conference rooms, and open office environments. With a powerful 32 Gbps overall switching capacity, data flows smoothly to minimize bottlenecks during heavy data transfers.
Key Features
- GREENnet Energy Savings: Integrated eco-smart mechanics automatically adjust power consumption by up to 70% based on port usage status and cable length.
- 16 Gigabit Ports: High-density cluster of 16 x 10/100/1000 Mbps Auto-MDIX RJ-45 ports supporting full-duplex transmission rates up to 2000 Mbps.
- Fanless Silent Chassis: Engineered with a completely passive cooling thermal layout that generates 0dB of operational noise for quiet environments.
- Rugged Metal Enclosure: Encased in a compact, durable heavy-duty metal housing designed to protect core electrical assets over extended deployment cycles.
- Built-In Power Supply: Features an integrated universal internal switching power layout to minimize desktop cable clutter and eliminate bulky external AC bricks.
- Diagnostic LEDs: Front-facing indicator matrix provides clear, instantaneous updates on power, connection speed (100 Mbps or 1000 Mbps), and real-time port link/activity status.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Device Interfaces | 16 x 10/100/1000 Mbps Auto-MDIX RJ-45 Ports Diagnostic LED Indicator Panel |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az (Energy Efficient Ethernet) |
| Switching Capacity | 32 Gbps forwarding fabric line rate |
| Performance Metrics | Data RAM Buffer: 512 KB MAC Address Table: 8K entries Jumbo Frames: Up to 10 KB architectures |
| Power Specifications | Input: Internal universal switching 100 – 240V AC, 50/60Hz Max Power Consumption: 10.1 Watts |
| Topology & Protocol | CSMA/CD, Star topology, Store-and-Forward switching architecture |
| Chassis Design & Noise | Chassis Material: Sturdy structural metal desktop housing Noise Level: 0 dB (Silent fanless operation) |
| Environmental Factors | Operating Temp: 0° to 40°C (32° to 104°F) Storage Temp: -10° to 70°C (14° to 158°F) Operating Humidity: Max 90% non-condensing |
| Dimensions & Weight | 280 x 125.8 x 44 mm (11 x 5 x 1.7 in.) 1.1 kg (2.4 lbs) |
| Certifications | CE, FCC |
