Long-Distance Gigabit Fiber Connectivity Up to 10km

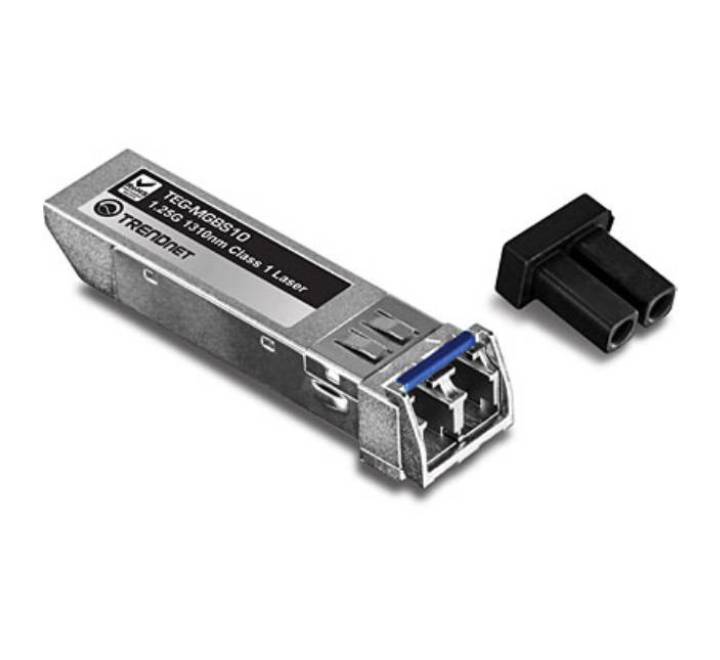

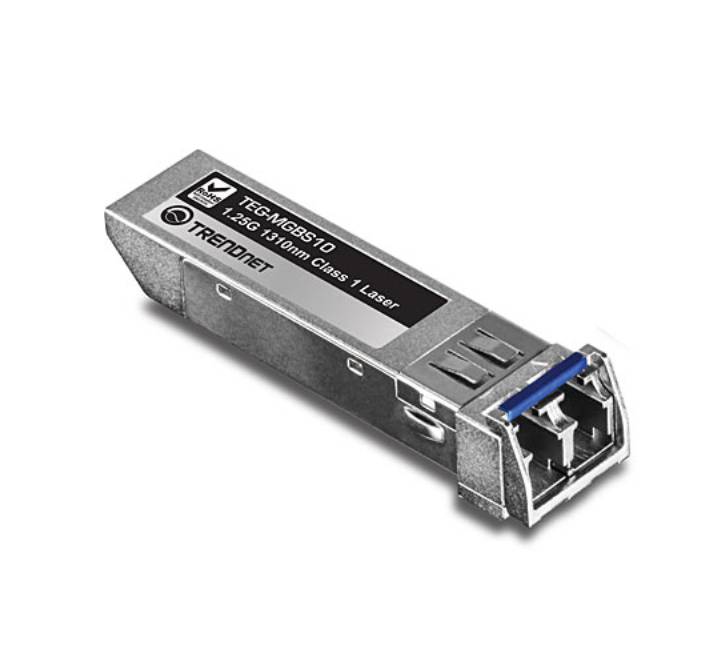

The TRENDnet TEG-MGBS10 SFP Single-Mode LC Module is a high-performance, hot-pluggable Mini-GBIC transceiver engineered to extend your network backbone far beyond the limitations of standard copper cabling. Designed to fit into any standard MSA-compliant SFP slot found on network switches, routers, and fiber media converters, this module provides a seamless transition to high-speed fiber-optic infrastructure.
Equipped with a duplex LC optical interface, the TEG-MGBS10 operates at a 1310nm wavelength to enable ultra-reliable, low-latency 1.25Gbps Gigabit Ethernet transmissions over single-mode fiber lines spanning up to 10 kilometers (6.2 miles). Its rugged metal enclosure minimizes structural wear while its specialized low-EMI (Electromagnetic Interference) design protects your signal integrity across complex enterprise, campus, and industrial processing environments.
Key Product Features
- 10km Operational Range: Extends gigabit network links across massive distances up to 10km (6.21 miles)—ideal for multi-building corporate campuses, business parks, and remote surveillance zones.

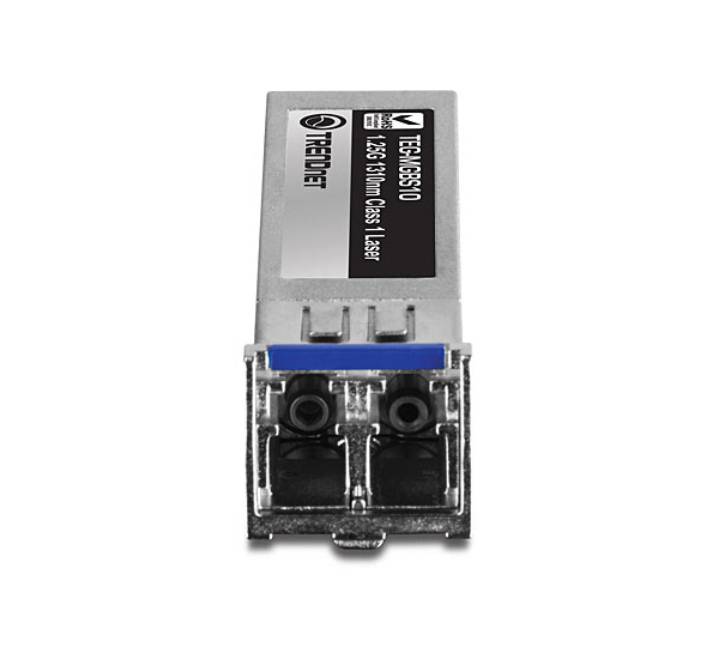

- Duplex LC Interface: Features an industry-standard LC-type duplex connection point for secure, high-density fiber patch cable seating.
- MSA & SFP Compliant: Fully compliant with Small Form-Factor Pluggable (SFP) transceivers and Multi-Source Agreement (MSA) standards to guarantee broad cross-brand hardware compatibility.
- Hot-Pluggable Architecture: Add or replace modules seamlessly without powering down your network switch or interrupting active data streams.
- Ultra-Low Power Consumption: Maximizes efficiency with a highly optimized thermal footprint, drawing a maximum of just 0.8W of power during peak throughput.
- Low-EMI Metal Design: Encased in a rugged metal shell that provides advanced shielding against electrical noise and signal degradation.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Device Interface | SFP MSA Compliant / LC-Type Duplex optical interface |
| Data Transfer Rate | 1.25Gbps (Gigabit Ethernet) | 1.0625Gbps (Fiber Channel Compliant) |
| Wavelength & Fiber Type | 1310nm / Single-Mode Fiber (SMF) |
| Max. Distance Coverage | Up to 10km (6.2 miles) |
| Optical Output Power | -9 ~ -3 dBm |
| Receiver Sensitivity | -22 dBm (Power Budget: 13dB) |
| Standards Compliance | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, ANSI Fiber Channel, MSA SFP |
| Power Consumption | Max. 0.8W (Single 3.3V supply operating voltage profile) |
| Environmental Limits | Operating Temp: 0° to 70° C (32° to 158° F) | Max. 85% non-condensing humidity |
| Physical Dimensions | 57 x 13 x 12mm (2.2 x 0.5 x 0.5 in.) | Weight: 18g (0.6 oz.) |
| Certifications & Protection | CE, FCC compliant | TRENDnet Manufacturer Lifetime Protection Warranty |
