Cost-Effective L2+ Network Control & High-Speed Fiber Uplinks for SMBs

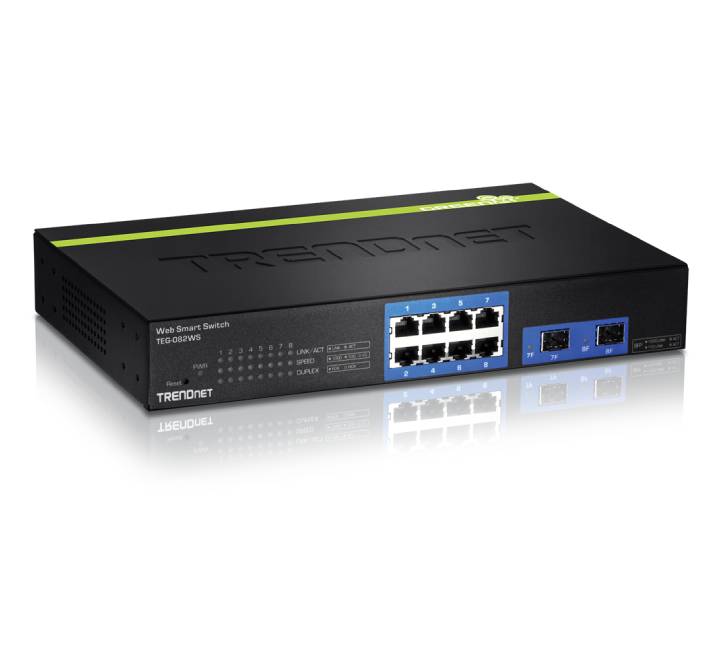

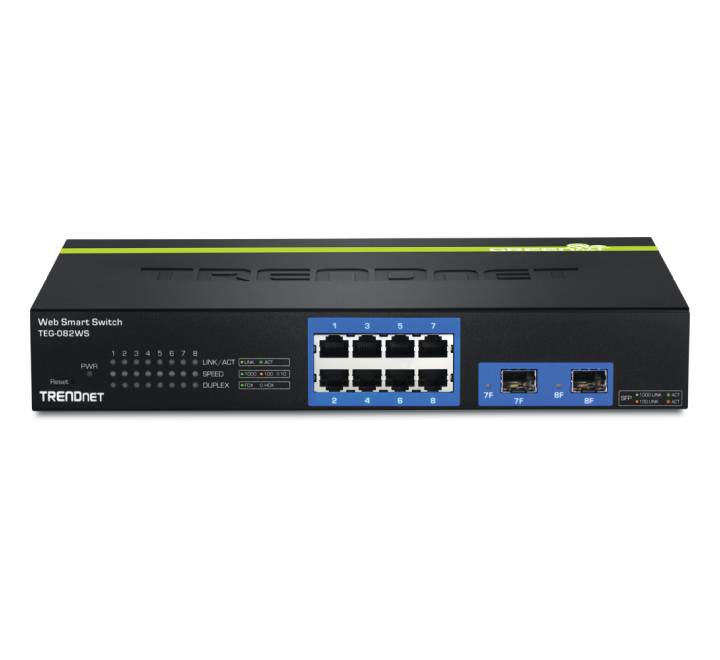

The TRENDnet 8-Port Gigabit Web Smart Switch with 2 SFP Slots (TEG-082WS) balances advanced network management controls with enterprise-class reliability. Engineered specifically for small-to-medium business networks, this desktop/rack-mountable switch features 8 dedicated Gigabit Ethernet ports alongside 2 dedicated Gigabit SFP slots for long-distance optical fiber link distribution.
Equipped with an intuitive, web-based graphical user interface (GUI), network administrators can easily segment networks with 802.1Q VLANs, prioritize delay-sensitive traffic via advanced Quality of Service (QoS), and stabilize bandwidth bottlenecks using dynamic Link Aggregation Control Protocol (LACP). Built with a durable metal housing and a 100% fanless design, the TEG-082WS ensures silent, energy-efficient operational performance in sensitive office environments.
Key Product Features
- High-Speed Port Matrix: Equipped with 8 x 10/100/1000 Mbps RJ-45 Gigabit Ethernet ports to supply continuous high-bandwidth pipelines to edge devices.
- Dedicated Gigabit SFP Uplinks: Includes 2 x dedicated SFP expansion bays for flexible long-distance fiber runs without consuming active copper Ethernet ports.
- Advanced Layer 2+ Smart Management: Gain precise control over infrastructure utilizing L2+ features like IPv4/IPv6 Static Routing, IGMP/MLD Snooping, and LLDP-MED.
- Intelligent Traffic Isolation: Safely separate virtual networks using Voice VLAN (to isolate and prioritize VoIP hardware), Private VLAN, and 802.1Q tagged VLAN groups.
- Silent Fanless Architecture: Operates at absolute zero decibels (0 dB) with passive cooling design—ideal for workstation rooms or open desk office arrangements.
- Layered Access Controls: Protect vital network assets against vulnerabilities using Access Control Lists (ACL), DHCP Snooping, Dynamic ARP Inspection, and 802.1X port security.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Hardware Interfaces | 8 x Gigabit Ethernet Ports (RJ-45) | 2 x Gigabit SFP Slots | LED Diagnostic Indicators |
| Network Standards | IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z, 802.3ad, 802.3az, 802.1D/w/s Spanning Tree |
| Switching Capacity | Up to 20Gbps Switch Fabric bandwidth architecture |
| Jumbo Frames Support | Up to 10 Kbytes data payloads supported |
| Traffic Diagnostics | Virtual Cable Diagnostic Testing, Link Statistics, and Port Mirroring (RX/TX/Both) |
| Quality of Service (QoS) | 802.1p Class of Service (CoS), DSCP, Bandwidth Control per port, Strict Priority & WRR Queue Scheduling |
| Device Management | HTTP/HTTPS (Web GUI), CLI (Telnet/SSHv2), SNMP v1/v2c/v3, RMON v1, TRENDnet Hive Cloud compatible |

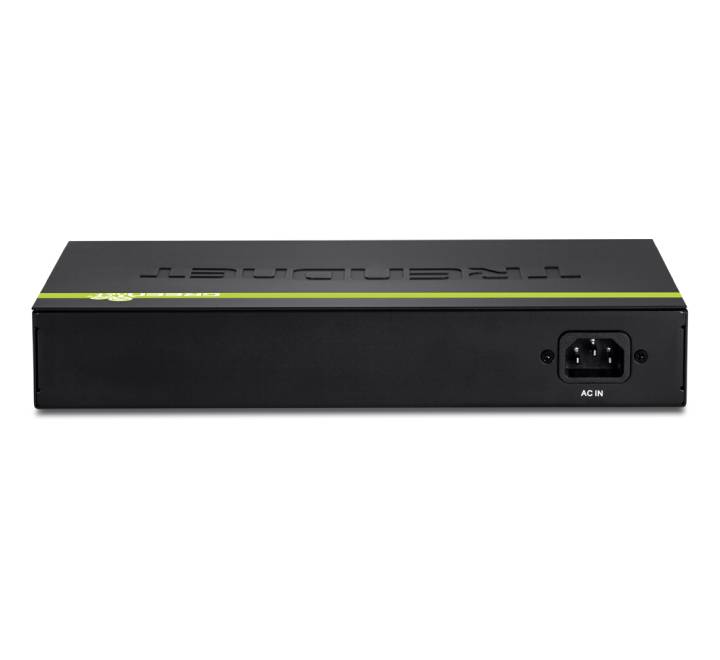

| Power & Input Profile | 100 - 240 V AC, 50/60 Hz internal power supply module | IEEE 802.3az Green Ethernet Power Saving |
| Enclosure Form Factor | Durable metal rack-mountable housing (Includes 1U rackmount conversion kit brackets) |
| Certifications & Cover | CE, FCC compliant | NDAA + TAA Compliant configuration | TRENDnet Lifetime Manufacturer Protection |
