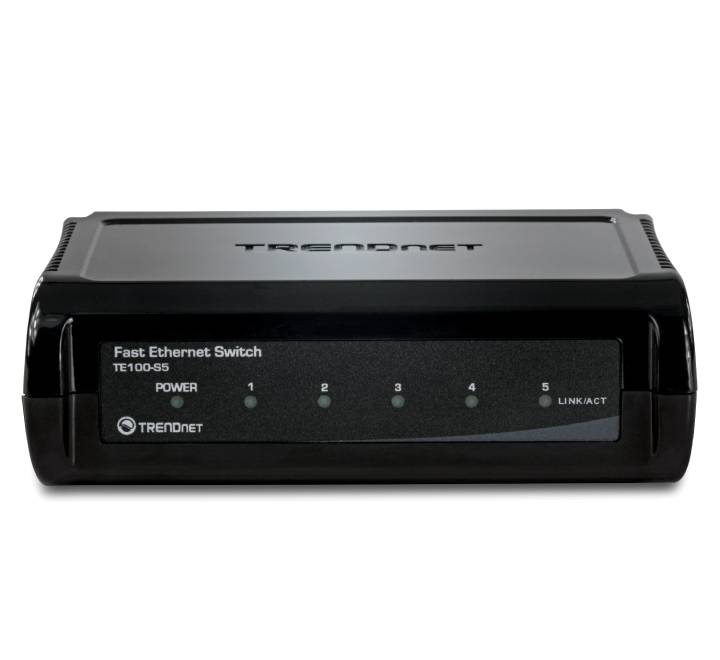

The TRENDnet TE100-S5 is a highly reliable, plug-and-play 5-Port 10/100Mbps Fast Ethernet Switch engineered to effortlessly expand your home or office network infrastructure. Equipped with 5 Auto-Negotiation ports, this compact, unmanaged desktop switch provides a cost-effective solution to connect multiple computers, network storage devices, media players, and print servers with a total switching capacity of 1 Gbps.
Housed in a lightweight and space-saving composite enclosure, the TE100-S5 integrates seamlessly into any minimalist workspace. Its advanced fanless design ensures completely silent 0dB operation, making it perfect for quiet home offices, bedrooms, and environments where noise distractions must be eliminated. With easy installation requiring no software drivers, this switch delivers consistent, stable wired connectivity right out of the box.
Key Features
- 5 Fast Ethernet Ports: Equipped with 5 x 10/100 Mbps Auto-MDIX RJ-45 ports supporting full-duplex transmission rates up to 200 Mbps.
- Plug-and-Play Simplicity: Fully unmanaged setup requires zero configurations, software installations, or complex network administration.
- Fanless Silent Design: Passive structural cooling guarantees entirely silent operation, preserving a peaceful and quiet working environment.
- Store-and-Forward Architecture: Maximizes performance and prevents packet loss by analyzing and filtering data before forwarding it to its destination.
- Ultra-Compact Footprint: Palm-sized, lightweight layout takes up minimal desk real estate and can be placed discretely out of sight.
- Diagnostic Status LEDs: High-visibility front-facing LED matrix displays instantaneous power status, connection links, and active data transmission states.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Device Interfaces | 5 x 10/100 Mbps Auto-MDIX RJ-45 Ports Front Panel Diagnostic LED Indicator Matrix |
| Standards Compliance | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x Flow Control |
| Switch Fabric Capacity | 1 Gbps non-blocking line rate performance |
| Performance Metrics | RAM Buffer: 48 KB MAC Address Table: 2K entries Forwarding Architecture: Store-and-Forward |
| Power Adapter Specifications | Input: External AC adapter 100 – 240V AC, 50/60 Hz Output: 5V DC, 0.6A Max Power Consumption: 1.5 Watts |
| Hardware Topology | CSMA/CD, Star configuration |
| Acoustics & Chassis | Chassis Material: Durable, lightweight composite housing Noise Level: 0 dB (Completely fanless operation) |
| Environmental Factors | Operating Temp: 0° to 40°C (32° to 104°F) Storage Temp: -10° to 70°C (14° to 158°F) Operating Humidity: Max 90% non-condensing |
| Dimensions & Weight | 100 x 78 x 31 mm (3.9 x 3.1 x 1.2 in.) 128 g (4.5 oz.) |
| Compliance & Certifications | CE, FCC |
