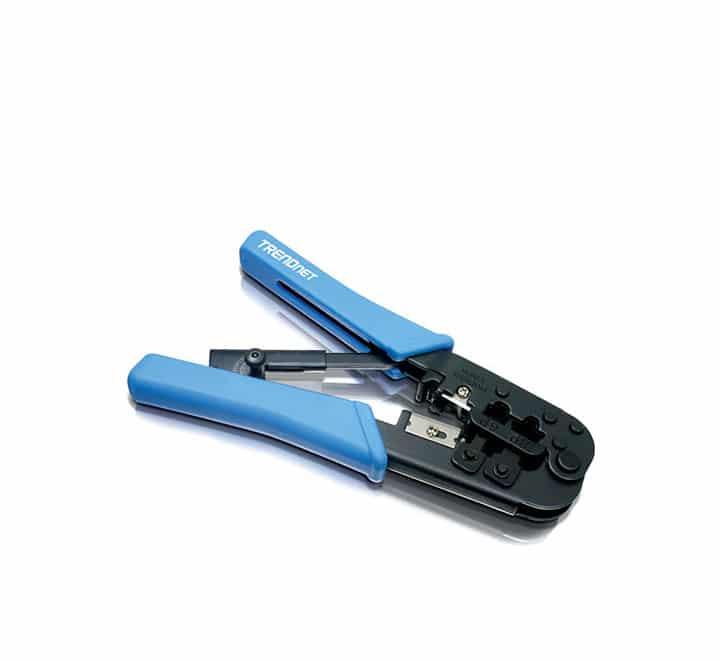

Take command of your custom network deployments and voice drops with the heavy-duty TRENDnet RJ-45 and RJ-11/RJ-12 Modular Crimp, Strip, and Cut Tool (Model TC-CT68). Designed as an all-in-one termination center for network engineers, telecom technicians, and structured low-voltage installers, this precision instrument streamlines the preparation and finishing of custom-length patch cables. By combining cutting, stripping, and crimping into a single, high-leverage hand tool, the TC-CT68 eliminates the need for multiple single-use tools, maximizing efficiency in the field.
Constructed from premium, hardened heat-treated steel, this industrial crimper features specialized, integrated parallel die cavities engineered to deliver clean, square crimps on standard 8-position (8P/RJ-45) data plugs as well as 6-position (6P/RJ-11 or RJ-12) telephone pins. The built-in wire stripper and round-cable score slot allow you to slice away protective PVC wire sheaths seamlessly without nicking internal copper twist pairs. Equipped with an auto-release safety ratchet mechanism, the TC-CT68 stays locked until complete contact pressure is achieved, ensuring full pin engagement every time and preventing loose, unstable connection links.
Key Features
- All-In-One Prep & Crimp: Integrates precise wire cutting, outer jacket insulation stripping, and terminal plug crimping into one professional tool body.
- Dual-Die Plug Configuration: Features dedicated crimp cavities designed for standard 8P8C (RJ-45) data interfaces as well as 6P6C/6P4C/6P2C (RJ-11/RJ-12) telephone connectors.
- Integrated Safety Ratchet: Built-in ratchet mechanism keeps the jaws closed until full compression is reached, ensuring uniform pin seating and preventing under-crimping.
- Hardened Structural Steel Build: Fabricated from rigid, heat-treated black oxide carbon steel to prevent chassis flexing under heavy mechanical torque.
- Built-In Wire Stripper & Cutter: Features a razor-sharp wire shear for flush end-cuts, paired with a specialized circular blade set for clean jacket stripping.
- Ergonomic Non-Slip Handles: Contoured high-comfort grip handles feature a texture-molded polymer skin that ensures optimal leverage and control to reduce repetitive strain.
Technical Specifications
| Specification Category | Technical Details |
|---|---|
| Model Number | TC-CT68 |
| Tool Product Classification | Modular Crimp, Strip, and Cut Combo Impact Tool |
| Supported Modular Plugs | RJ-45 (8P8C Data Line), RJ-12 (6P6C Line), RJ-11 (6P4C / 6P2C Voice Line) |
| Network Wire Suitability | Cat3, Cat5, Cat5e, Cat6 unshielded solid or stranded network patch cabling |
| Chassis Material Composition | Heavy-gauge, heat-treated black oxide structural carbon steel |
| Compression Type | Parallel action cycle layout with spring-loaded structural release triggers |
| Blade Material | Precision-ground SK5 hardened tool steel shears |
| Physical Length Dimensions | 190 mm (7.5 inches) overall profile length |
| Net Unit Weight | 305 grams (10.8 ounces) overall unboxed mass |
| Regulatory & Legal Standards | RoHS Directive Compliant, Trade Agreements Act (TAA) Certified |
| Manufacturer Warranty | 6 Months |
