Map infrastructure drop points and diagnose structural line faults instantly with the commercial-grade TRENDnet Professional Network Cable Tester with Tone Generator (Model TC-NT2). Engineered for network administrators, low-voltage field technicians, and telecom professionals, this highly versatile diagnostic station maps out precise pin configurations for an exhaustive array of voice, data, and video lines. Consisting of a master signal transmitter and a detachable remote terminator block, this tool allows for comprehensive end-to-end certification testing over long-distance premise cabling stretches up to 300 meters (984 feet).
The TC-NT2 is meticulously designed to isolate structural layout errors, providing instantaneous visual readouts for open lines, short circuits, severed pins, and cross-connected wire mappings. It features an integrated audio tone generator that outputs a powerful 600Hz to 800Hz localized tracking frequency, allowing installers to trace hidden structural trunks behind walls when paired with a standard amplifier probe. Built with auto-scanning and manual step-scanning diagnostic modes, this portable battery-powered testing hub accommodates localized patch-cord loopback assessments as well as multi-room remote outlet testing across corporate enterprise layouts.
Key Features
- Multi-Media Cable Diagnostic Hub: Natively tests standard 10/100/1000Base-T Ethernet, Token Ring, 10Base-2 Coaxial lines, and multi-line telephone networks (RJ-11/RJ-12/RJ-45).
- Long-Distance Line Certification: High-driven testing circuitry maps pre-installed structured runs and patch drops up to 300 meters (984 feet) away.
- Integrated Audio Tone Generator: Emits a dedicated 600Hz to 800Hz analog tone waveform down designated wire strings to enable easy cable routing and bundle tracing.
- Comprehensive Pin Mapping: Instantaneously identifies precise line statuses including cable continuity, open runs, pin-to-pin shorts, and reversed/crossed miswires.
- Shielded Ground Testing Support: Features integrated metal-shielded connector bays to properly test line shielding continuity on STP/FTP grounded cables.
- Dual Auto & Manual Scan Modes: Toggle between automated high-speed cycle scanning for fast multi-pin mapping, or manual step-by-step pin verification.

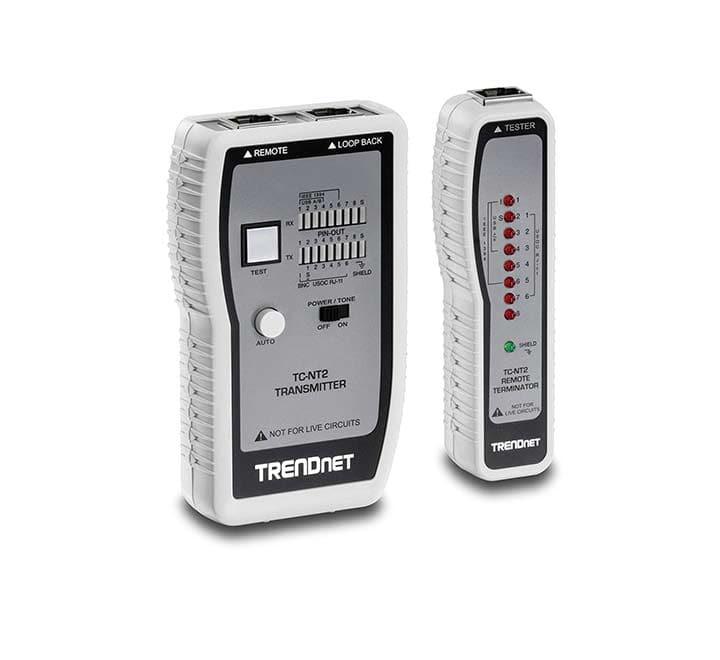

- BNC Accessories Package Included: Comes complete with two custom RJ-45 to BNC hardware adapters, an RJ-45 network patch cable, and a protective deluxe zippered travel pouch.
The TRENDnet TC-NT2 is engineered strictly for unpowered/dark copper lines. Do NOT plug this diagnostic equipment into an active PoE port, live network switch, or powered telecom line. Connecting this tester to a live circuit carrying active voltage will cause immediate damage to the internal hardware array and void the manufacturer's protection.
Technical Specifications
| Specification Category | Technical Details |
|---|---|
| Model Number | TC-NT2 |
| Diagnostic Pin Formats | RJ-45 (8P8C), RJ-11/RJ-12 (6P6C/6P4C), BNC Coaxial (via included adapters), USB/IEEE 1394 (with optional TC-NTUF adapters) |
| Network Wiring Standards | EIA/TIA-568A, T568B, USOC 356A, Token Ring, 10/100/1000Base-T Layouts |
| Max Cable Loop Distance | Up to 300 meters (approximately 984 linear feet) |
| Tone Generation Frequency | 600 Hz to 800 Hz modulated analog tone output |
| Power Requirement | Requires 1 x Standard 9V DC Alkaline Battery (not included) |
| Transmitter Interface | 1 x Master Test Port, 1 x Loopback Port, Auto Scan Button, Manual Test Button, Power/Tone toggle switch, LED Indicator Grid |
| Remote Receiver Interface | 1 x Line input jack, structural LED indicator tracking map |
| Enclosure Construction | High-impact, textured industrial ABS casing |
| Master Unit Dimensions | 115 x 68 x 27 mm (4.5 x 2.7 x 1.1 inches) |
| Remote Unit Dimensions | 118 x 32 x 27 mm (4.6 x 1.3 x 1.1 inches) |
| Hardware Weights | Transmitter: 113g (4.0 oz) without battery | Remote Terminator: 57g (2.0 oz) |
| Certifications | CE Mark, RoHS Directive, NDAA / TAA Compliant |
| Manufacturer Warranty | 6 Months |
