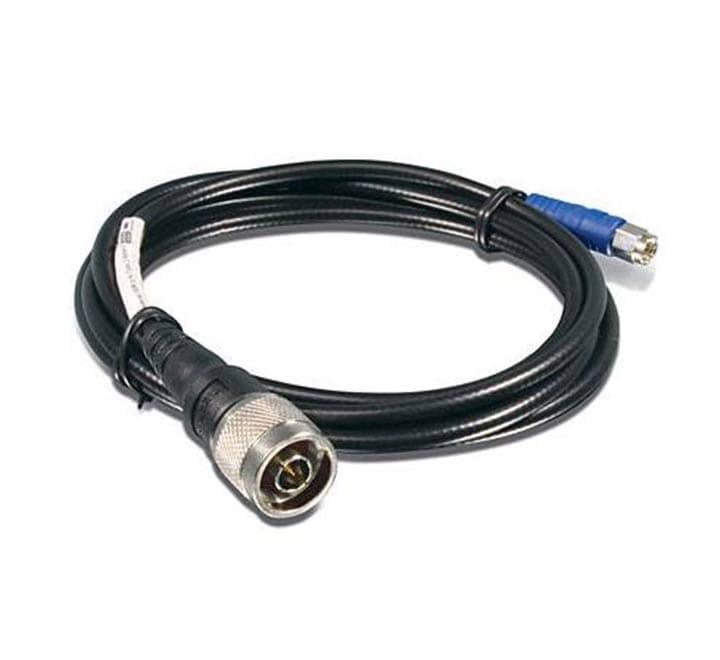

The TRENDnet TEW-L202 Low Loss RP-SMA Male to N-Type Male Cable is an industrial-grade RF antenna expansion solution designed to optimize your wireless network's performance. Measuring 2 meters (6.5 feet) in length, this high-grade coaxial cable allows you to relocate your wireless antenna to an elevated or clear outdoor position, bypassing physical barriers and drastically improving building-to-building or localized Wi-Fi coverage.
Engineered for maximum signal retention, this heavy-duty cable handles both 2.4GHz and 5GHz frequencies with an ultra-low signal loss rating of just 1.45dB. Encased in a robust, UV-resistant Polyethylene jacket with superior RF shielding, the TEW-L202 is built to endure harsh outdoor exposure while ensuring strong, low-latency communication between your access point and high-gain antenna.
Key Features
- 2-Meter Antenna Extension: Provides 6.5 feet of installation flexibility to place your directional or omnidirectional antenna in the ideal location for peak line-of-sight performance.
- Universal Frequency Support: Fully optimized for dual-band operations, delivering seamless compatibility across both 2.4GHz and 5GHz wireless networks.
- Ultra-Low Signal Loss: Features a premium LMR200-equivalent design with a minimal cable loss rating of 1.45dB to protect signal integrity across long distances.
- Advanced RF Shielding: Boasts a multi-ply bonded outer foil conductor rated at over 90dB, yielding 50dB of RF shielding to effectively eliminate external signal interference.
- Weatherproof Infrastructure: Outfitted with a premium, heavy-duty Polyethylene (PE) jacket engineered specifically to resist prolonged UV exposure and extreme outdoor elements.
- Tight Bend Radius: Designed with a flexible outer conductor matrix that allows for a tight bend radius down to 0.5 inches, ensuring trouble-free installation in tight enclosures or conduit paths.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TEW-L202 |
| Cable Type | LMR200 Coaxial Equivalent (N-Type to SMA) |
| Connectors | 1 x RP-SMA Male Connector 1 x N-Type Male Connector |
| Cable Length | 2 meters (6.5 feet) |
| Frequency Compatibility | 2.4 GHz & 5 GHz bands (IEEE 802.11a/b/g/n/ac) |
| Cable Loss Value | 1.45 dB |
| Impedance & Shielding | 50 Ohms Nominal | >90 dB Shielding Effectiveness (50dB RF Shielding) |
| Jacket Material | Weatherproof Polyethylene (PE) with UV Resistance |
| Bend Radius Limits | Installation: 12.7 mm (0.5 in) | Repeated: 50.8 mm (2.0 in) |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Weight | 115 g (0.25 lbs) |
| Compliance | NDAA & RoHS Compliant |
