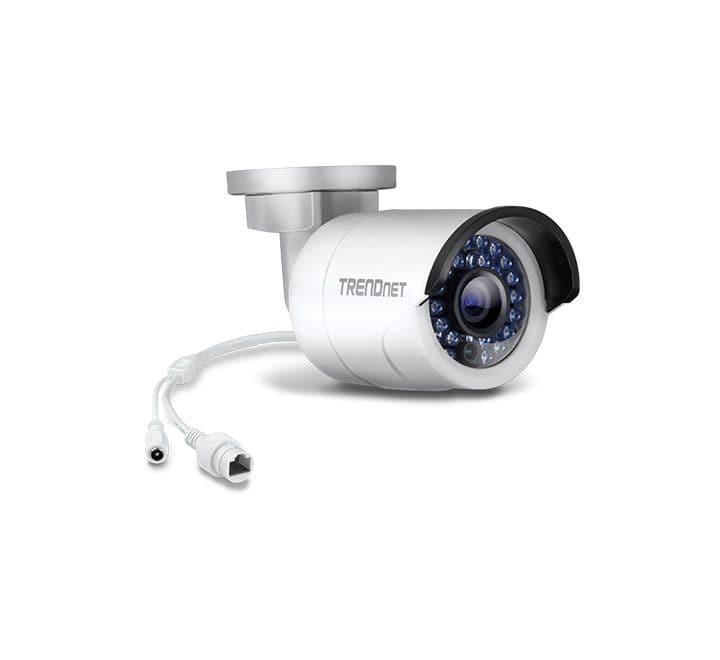

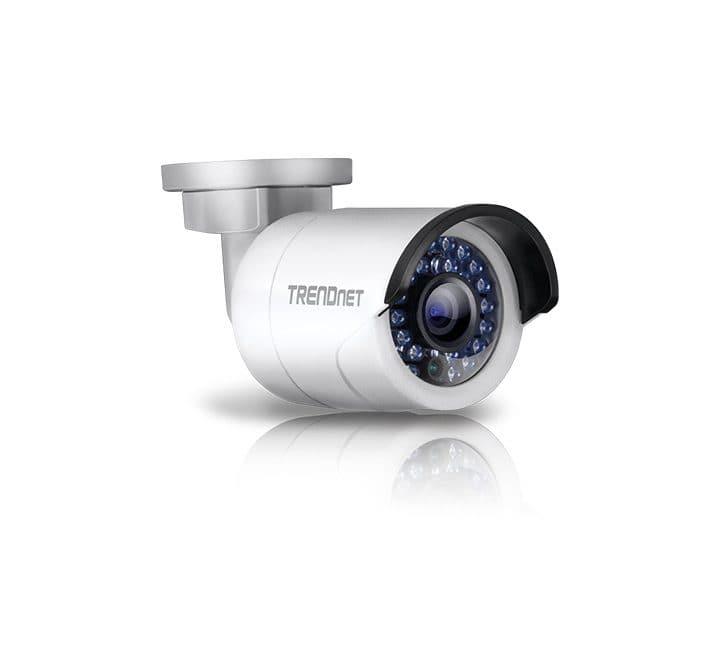

Upgrade your commercial or residential security perimeter with the rugged TRENDnet Indoor / Outdoor 1.3 MP HD PoE IR Network Bullet Camera (Model TV-IP320PI). This ultra-compact network surveillance camera delivers high-fidelity 1.3 Megapixel HD resolution, capturing detailed video streams at 30 frames per second. Engineered to perform in demanding deployment environments, it is encased in a robust IP66 weather-rated housing that provides total protection against heavy downpours, blowing dust, and extreme freezing conditions down to -30°C (-22°F).
Equipped with Power over Ethernet (PoE) technology, the TV-IP320PI slashes hardware installation costs by transmitting both high-speed data and electrical power through a single standard network drop. When the sun goes down, the camera transitions seamlessly into night-vision mode, deploying specialized Smart IR illumination to expose clear details in complete dark zones at distances up to 30 meters (100 feet). Advanced onboard algorithms like 3D Digital Noise Reduction (3D DNR) and Digital Wide Dynamic Range (D-WDR) balance high-contrast shadows and prevent localized washouts, ensuring crisp evidence tracking around the clock.
Key Features
- 1.3 MP HD Clear Recording: Captures video at 1280 x 960 pixel resolution at a smooth 30 frames per second using efficient H.264 compression layouts.
- Long-Range Smart IR Night Vision: Integrates dynamic power-adjusting Smart Infrared LEDs to view up to 30 meters (100 ft.) in total darkness without overexposing close objects.
- Single-Cable PoE Installation: Fully compliant with IEEE 802.3af Power over Ethernet standards, eliminating the need for standalone local power drops or bulky AC adapters.
- IP66 Weather-Rated Shell: Rugged, water-tight metal casing and weather shield protect sensitive camera internals from rain, dust storms, and heavy outdoor debris.
- D-WDR & 3D DNR Balancing: Features Digital Wide Dynamic Range and 3D Digital Noise Reduction to sharpen video feeds across severe backlit areas or grain-heavy low-light frames.
- Smart Motion & Tamper Analytics: Program customizable localized motion windows, sensitivity levels, and tamper schedules that trigger instant automated email snapshot alerts.
- Flexible Local & App Control: Supports simple plug-and-play viewing via free mobile apps, enterprise ONVIF profiles, and complimentary pro-grade camera management software.
Technical Specifications
| Specification Category | Technical Details |
|---|---|
| Model Number | TV-IP320PI |
| Image Sensor & Lens | 1/3” Progressive Scan CMOS Sensor | Focal Length: 4mm @ F2.0 fixed board lens |
| Viewing Angles | Horizontal: 70° | Vertical: 52° | Diagonal: 89° |
| Video Stream Resolutions | H.264: 1280 x 960 up to 30 fps MJPEG: 704 x 480 up to 30 fps |
| Minimum Illumination | IR Off: 0.01 lux | IR On: 0 lux (With 30m / 100ft Smart Infrared array enabled) |
| Hardware Interface Ports | 1 x 10/100 Mbps PoE port (Fast Ethernet) 1 x 12V DC power jack input port (Adapter sold separately) 1 x Grounding point, 1 x Reset button |
| Network Protocols Supported | IPv4, IPv6, UDP, TCP, ONVIF Profile v2.2, DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP (v1, v2c, v3), NFS, SMB/CIFS, HTTP, HTTPS, RTSP, RTP, SSL |
| Enclosure Rating & Form Factor | IP66 Weatherproof rated housing with integrated 3-axis articulated wall/ceiling mounting bracket |
| Power Profile & Draw | PoE (IEEE 802.3af) Class 2 | Max. power consumption: 7.0 Watts |
| Operational Thresholds | Temperature: -30°C to 60°C (-22°F to 140°F) | Humidity: Max 95% non-condensing |
| Dimensions & Net Weight | 60 x 60 x 152 mm (2.4 x 2.4 x 6.2 in.) | 375g (13.2 oz.) |
| Regulatory Certifications | CE, FCC, UL 60950, TAA & NDAA Compliant |
| Manufacturer Warranty | 6 Months |
