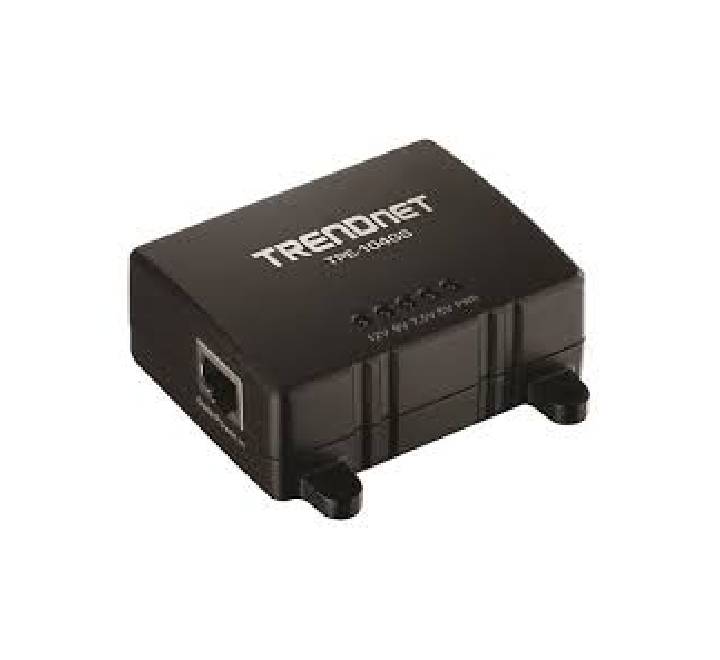

The TRENDnet TPE-104GS Gigabit Power over Ethernet (PoE) Splitter is the ultimate solution for networking non-PoE hardware in remote locations. By taking an incoming PoE signal from a switch or injector, the TPE-104GS splits a single Ethernet link into separate Gigabit data and dedicated DC power sources, saving you the expense of installing electrical outlets near your equipment.
This compact device features a convenient integrated DIP switch, allowing you to manually adjust the output power to 5V, 9V, or 12V to perfectly match your network hardware requirements. Complete with an inclusive jumper cable kit, this splitter offers broad out-of-the-box compatibility with IP cameras, wireless access points, and VoIP hardware up to 100 meters (328 feet) away.
Key Features
- Gigabit Ethernet Speeds: Delivers full-duplex Gigabit data throughput speeds (up to 2000Mbps) to eliminate network bottlenecks.
- Adjustable Power Output: A built-in manual toggle switch easily scales DC power delivery across 5V, 9V, or 12V options to match diverse hardware profiles.
- PoE Powered Deployment: Operates entirely over an incoming 802.3af PoE network connection—no local AC power adapters or electrical outlets needed.
- Extended Range Capability: Efficiently splits data and power lines across long distances up to 100 meters (328 feet) away from the main power source.
- Enhanced Jumper Compatibility: Includes a combination 5.0mm and 3.5mm jumper cable matching various barrel-jack sizes on target non-PoE network appliances.
- Wall Mountable Design: Ultra-compact, lightweight housing features integrated mounting points to cleanly secure the hardware behind structures or under desks.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TPE-104GS |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af (PoE 15.4W) |
| Device Interfaces | 1 x Gigabit PoE data/power in port 1 x Gigabit data out port 1 x DC power out barrel jack |
| Data Transfer Rates | Gigabit Ethernet: 2000 Mbps (Full Duplex) Fast Ethernet: 200 Mbps (Full Duplex) |
| Power Output Settings | 5V (2A), 9V (2A), 12V (1.5A) via variable DIP switch |
| Power Consumption | Max. 0.5 Watts (Device operation internal draw) |
| LED Diagnostics | Status indicators showing active DC output voltage matching |
| Operating Temp | 0°C to 40°C (32°F to 104°F) |
| Dimensions & Weight | 84 x 63 x 22 mm (3.3 x 2.5 x 0.87 in) | 64g (2.3 oz) |
| Certifications & Safety | CE, FCC, NDAA Compliant |
